(R) Optional
recirculation

inlet

(AH)

Alternate hot

water outlet

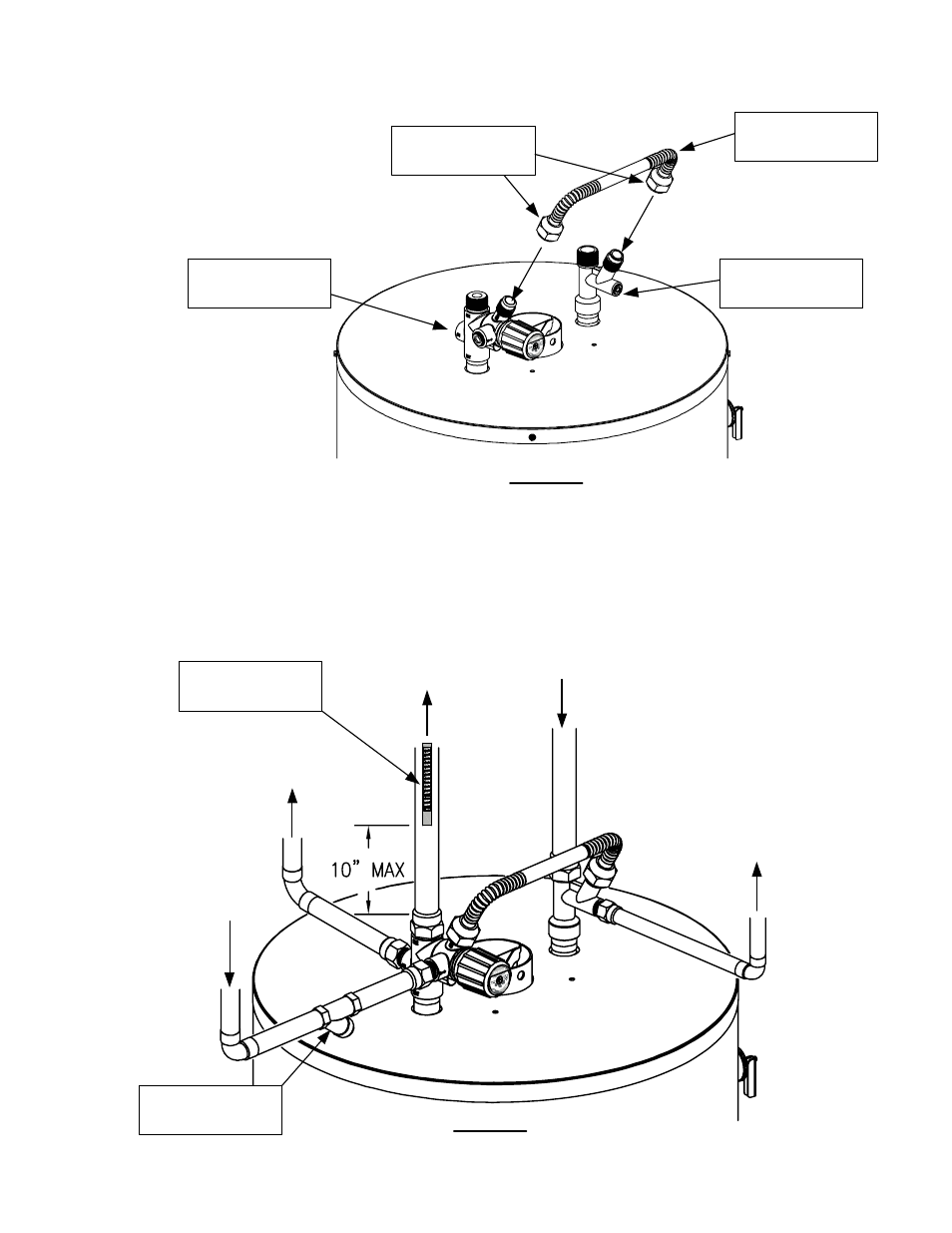

4. Install the flexible metal connector
to the mixing device and cold water
tee as shown in Figure 7. Tighten
flare connectors until leak tight.

At this time the IMD should be leak tight. Continue installation of potable water system as indicated
in the installation and operation instruction manual supplied with the water heater.

Once potable water system has been completely installed, install the thermostrip on the mixed water
outlet pipe no more than 10 inches from mixing device as shown in Figure 8.

ASSEMBLY PROCEDURE CONTINUED...

Mixing device

Cold water tee

Flexible metal

connector

Figure 7

Installing Flexible Metal Connector

(MIX) Mixed

water outlet

Cold water inlet

Optional cold

water outlet

Thermostrip

Page 6

Figure 8

Installing Thermostrip

Flare connector

Check Valve
