The cold water tee is equipped with a ¼” NPT optional
cold water outlet that draws cold water prior to the water
heater (see Figure 3). This outlet may be used to
connect cold water to refrigerator ice makers or other
low flow applications.

WATER CONNECTIONS CONTINUED...

¾" NPT Cold

water inlet

Cold water outlet

to mixing device

¼" NPT Optional

cold water outlet

¾" NPT Cold water

outlet to water heater

ASSEMBLY PROCEDURE

1. Twist and pull thread protectors with pliers or large regular
screw driver to remove them from flexible metal connector as
shown in Figure 4.

CAUTION

Do not damage flared connectors
or threads on connector nuts
when removing thread protectors.

Flexible metal

connector

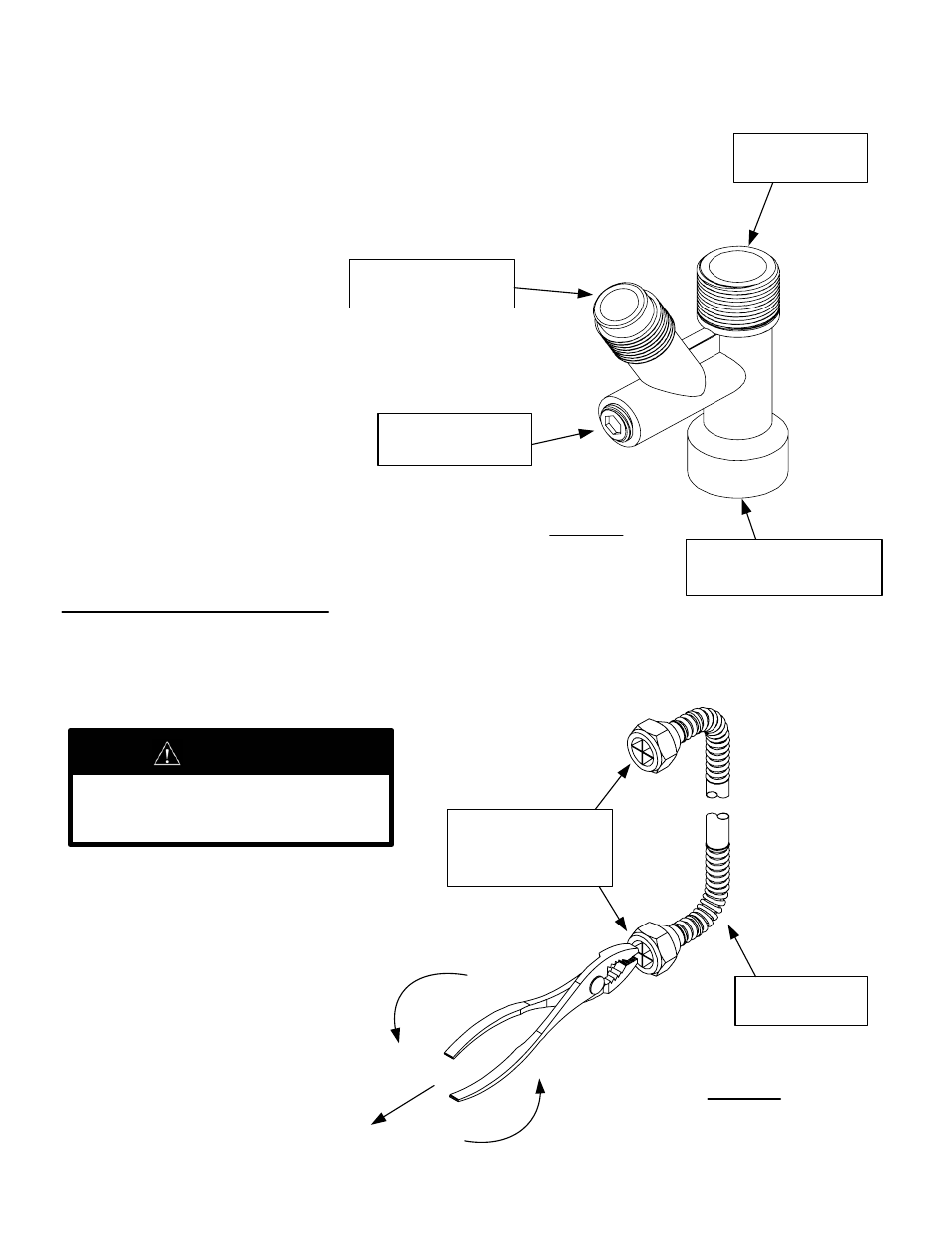

Figure 3

Cold water Tee

Figure 4

Flexible Metal Connector

Page 4

Flare connectors

with thread

protectors
