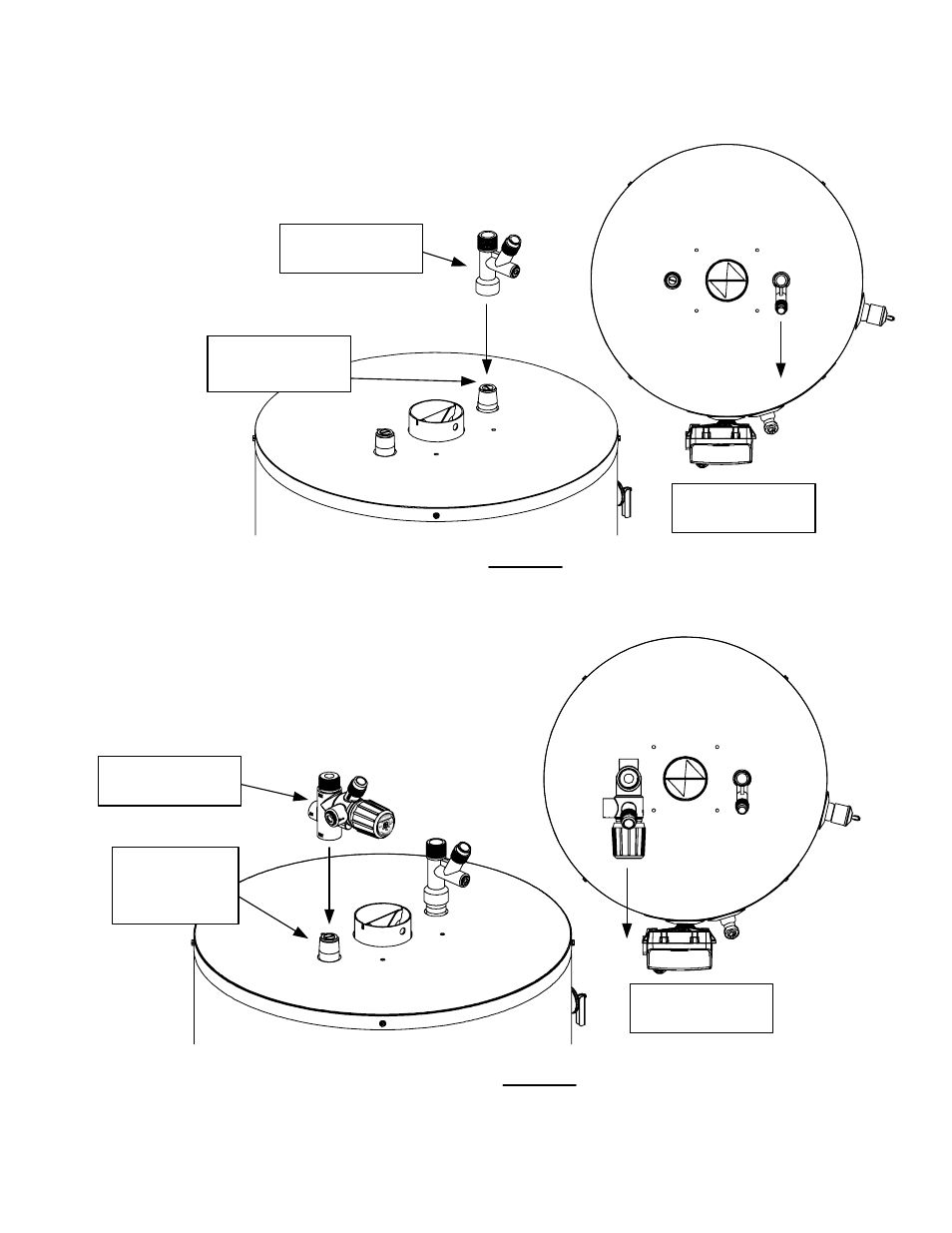

2. Install the cold water tee onto the cold water inlet of the
water heater. If installing on a water heater with 1" inlet
fitting, use 1" NPT to ¾" NPT brass reducer bushing and
brass nipples. Tighten until leak tight and facing the front of
the water heater as shown in Figure 5.

ASSEMBLY PROCEDURE CONTINUED...

Cold water tee

Water heater

cold water inlet

Front of water

heater

Figure 5

Installing Cold Water Tee

3. Install the mixing device onto the hot water outlet
of the water heater. If installing on a water heater
with 1" outlet fitting, use 1" NPT to ¾" NPT brass
reducer bushing and brass nipples. Tighten until
leak tight and facing the front of the water heater as
shown in Figure 6.

Mixing device

Front of water

heater

Figure 6

Installing Mixing Device

Page 5

Water heater

hot water

outlet
