AVF Package J MC1000 Cart + MC-XL Display Mount - Manual (Page 2)

M8 Hex Key
M8 x 12
(2)
1/2" Wrench
or Socket
M8 Hex Key
M8 x 20
(4)
5/16 Nut (4)
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
Page 2
of 6

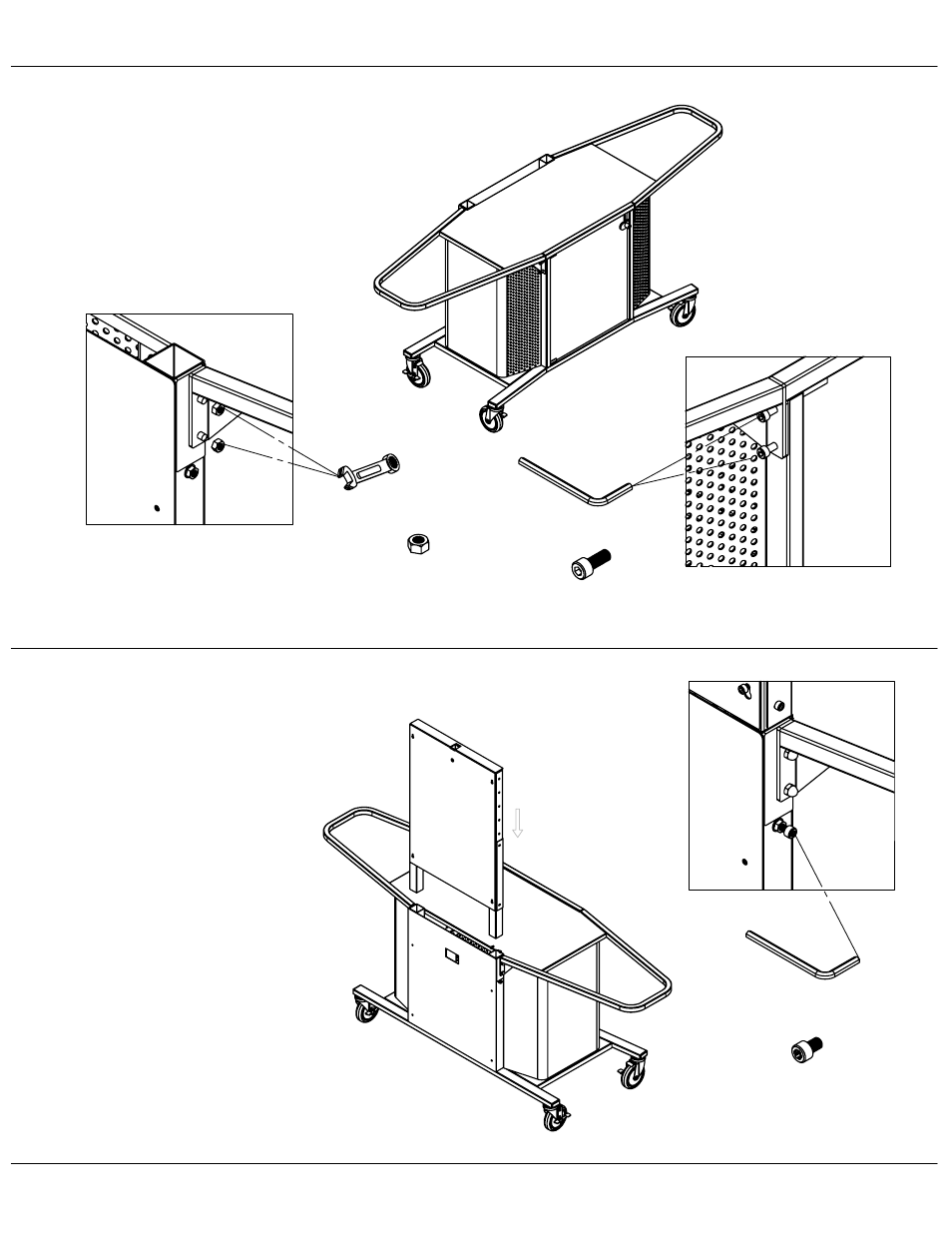

Step 2
Slide the spine assembly into the
locations on the top of the cart with
the large cover facing the back.
Secure in place with an M8 bolt on
each side.
Installing Spine Assembly
Step 1
Align handles with the matching
locations on the sides of the cart. Use
an M8 bolt and hex key to secure the
front side and a 1/2" wrench or socket
to secure the back side.
Attaching Handles
