Step 7

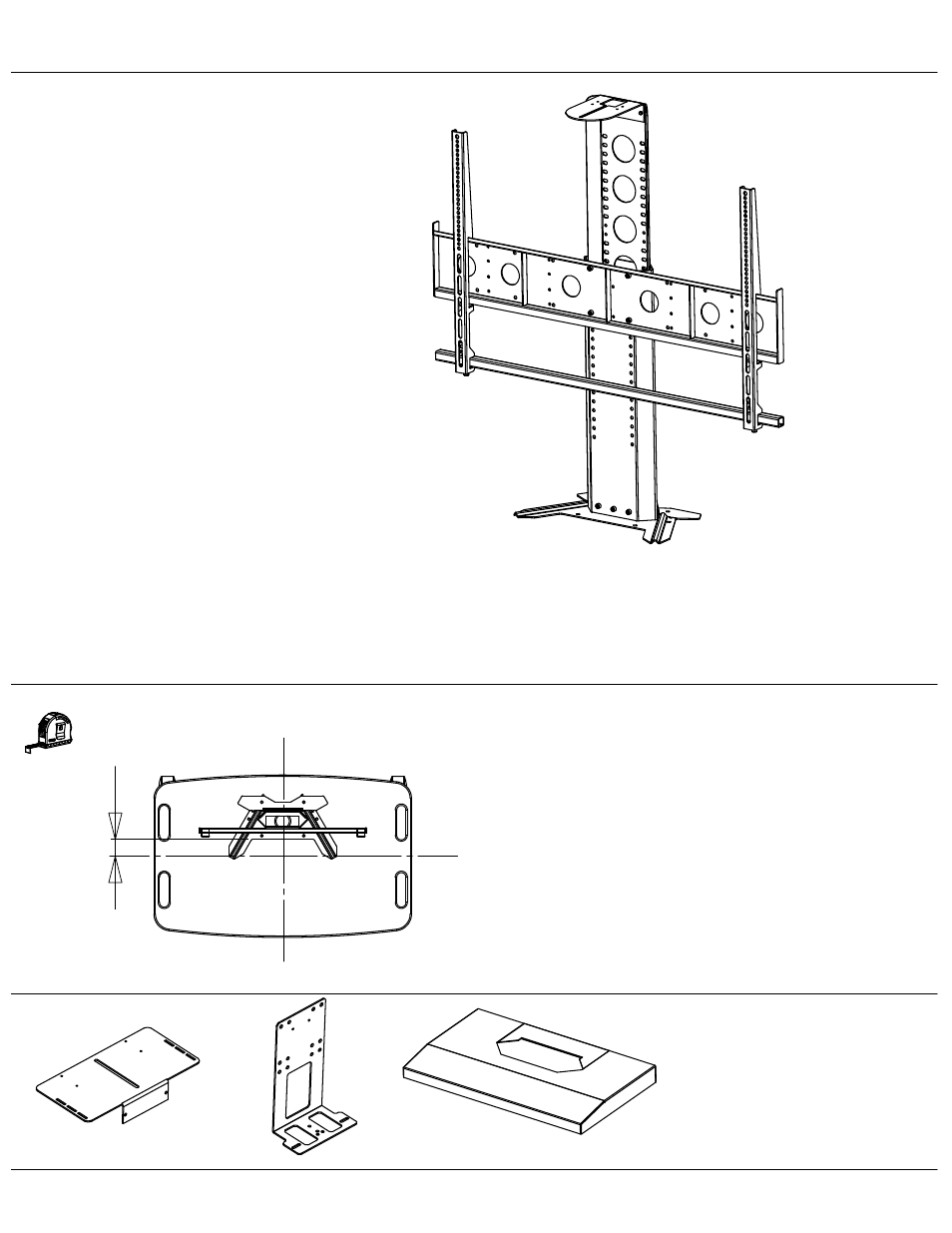

Optimal placement of base.
If your cart did not have pre-drilled holes and you need
to locate the mount:
Remove grommet if present, surface must be flat.
Place base 3" back from center.
Mark hole center locations with punch or pencil
Drill through with an 3/8 drill.
Place base and insert all 6 Carriage bolts to confirm holes.
Congratulations! you're done.
You will notice you have a bit of hardware left over
which you may need in the future.
We suggest placing this in a small bag and taping it
inside the bottom back of the spine.
(A PM-S can be upgraded to a PM-D by ordering a PM-D expansion box)
If you have any problems,questions or suggestions, we value
your feedback. Toll free 1-877-834-3876
Center
Center
Optional accessories
Codec Plate Base cover
