AVF PM-S-XL - Manual (Page 6)

The Camera mount
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
Page 6
of 7
Step 6
Hex Key
1

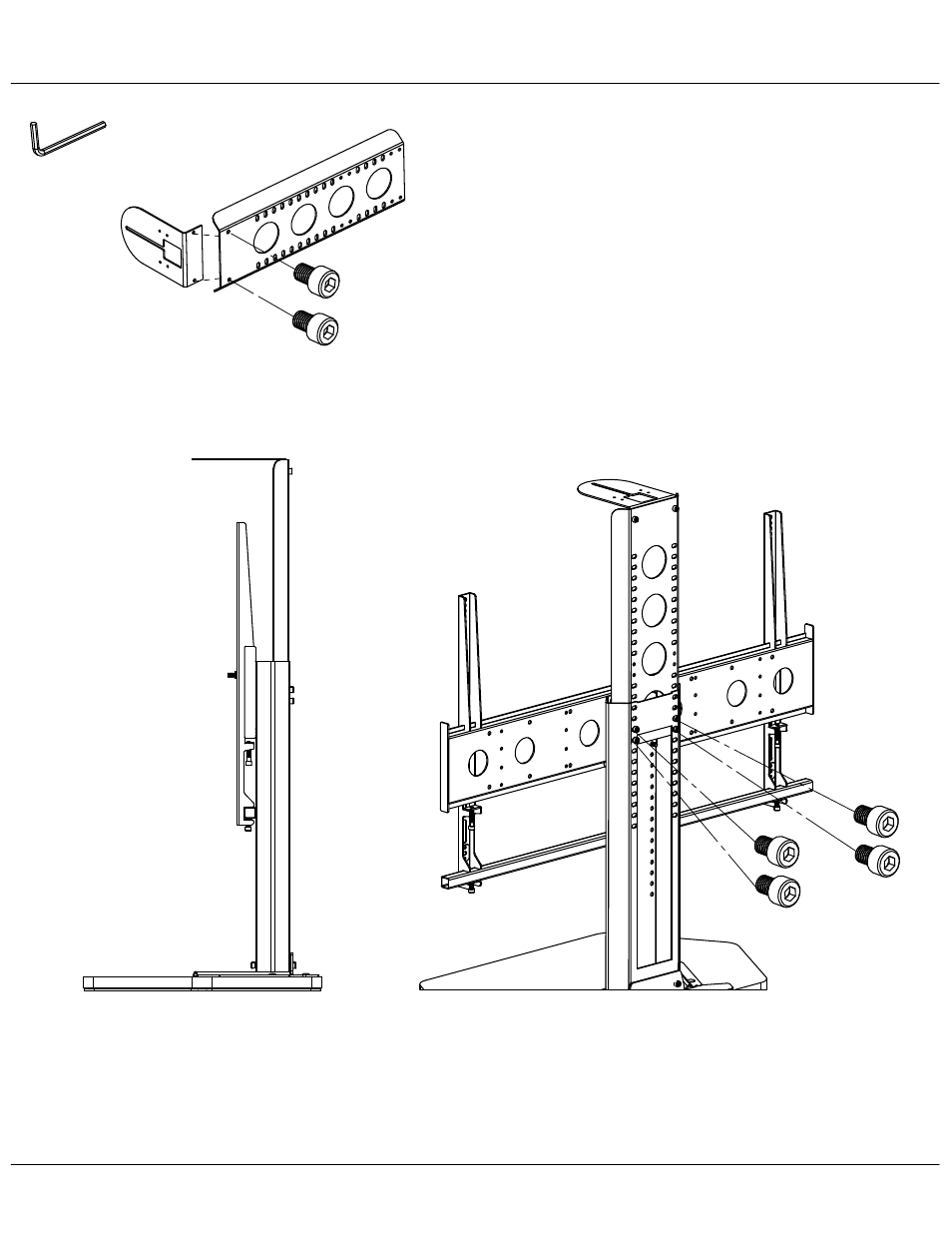

1. Bolt tongue to camera mount neck
2. Insert mount neck into mounting spine until tongue is
approximately 1-2" from the top of the TV.
3. Bolt camera mount neck into mounting spine.
Tongue is now ready for camera.
2
3
M8 X 12
M8 X 12
