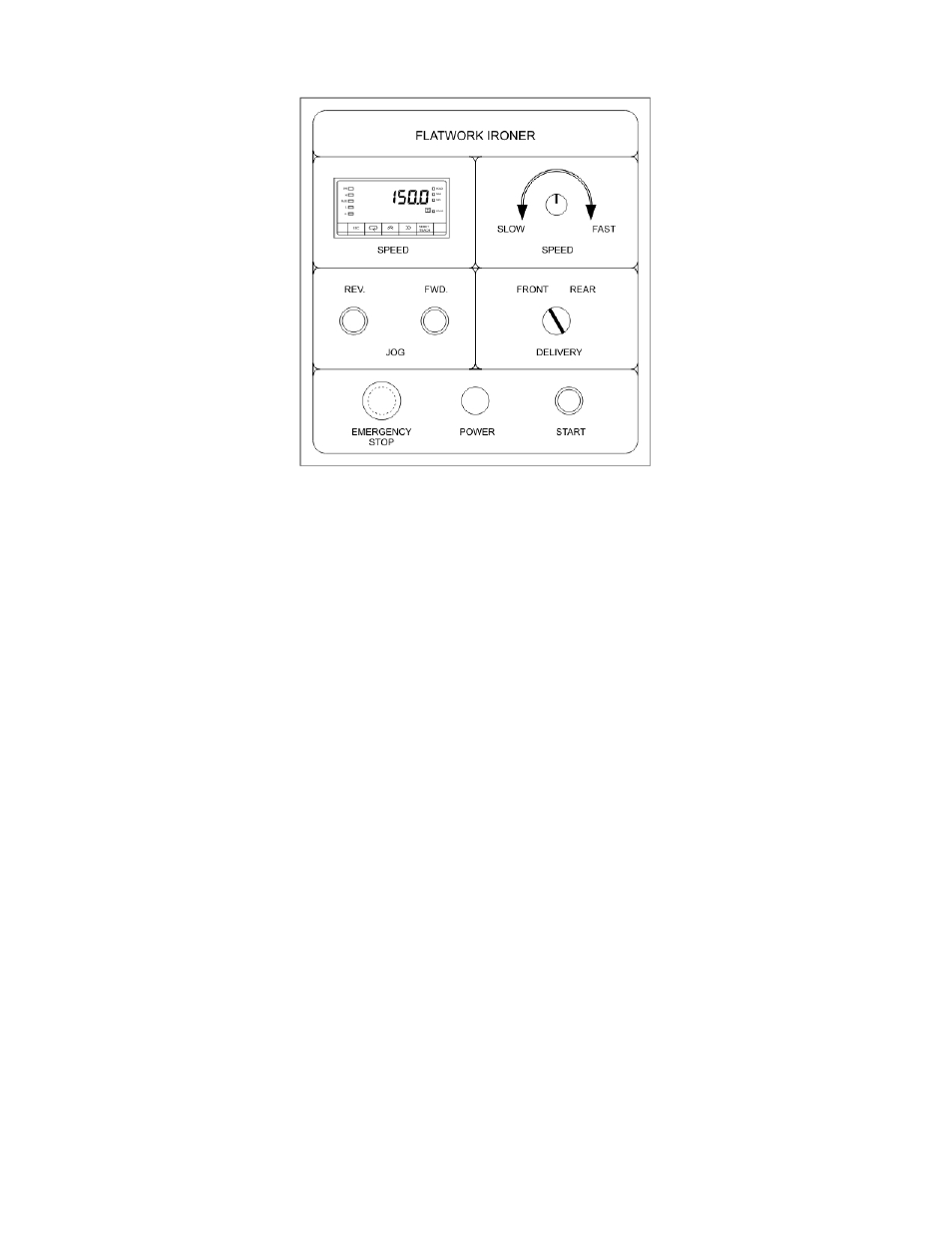

Figure 4.3: IS Series - Speed Control Panel
E MERGENCY S TOP – Press to stop machine in case of an emergency. Pressing while machine is in
operation and temperature is above 70 o C (158 o F) can cause damage to the machine.
G AS O N – illuminates when the Gas switch is in the on position.
4.1.2 Speed Control Panel
Refer to Figure 4.3 on page 23:
S PEED – indicates actual speed in feet/minute of the ironer, can also be set to display in me-
ters/minute. Contact the factory for details.
S PEED KNOB – Rotate clockwise for increased speed, counter-clockwise for slower speeds.
J OG – press and hold to jog machine forwards or backwards to remove caught goods.
D ELIVERY – set switch to Front to return the finished goods to the front of the machine; set to Rear
for rear return.
E MERGENCY S TOP – Press to stop machine in case of an emergency. Pressing while machine is in
operation and temperature is above 70 o C (158 o F) can cause damage to the machine.
P OWER – Indicates that the machine is ready to run
S TART – Press and hold for 1-2 seconds to start machine. Make sure the Emergency Stop buttons
are released.
