Allen&Heath WAVES User Guide User Manual
Page 11
11
M
-W
A
V
ES A
U
D
IO I
N
T
ER
FA
C
E

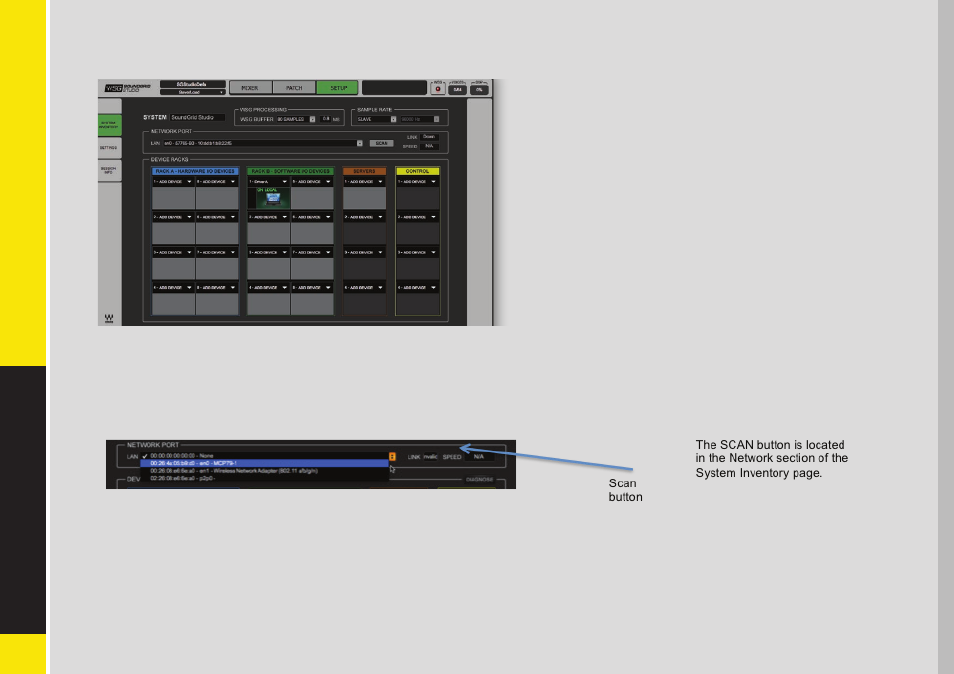

When SoundGrid Studio opens you will see the System Inventory page.
The first time you launch SoundGrid Studio, the Wizard will open. This is a tool that scans the network, inventories its assets, and then
configures the relevant devices. If the Wizard does not start automatically, click the SCAN button, which is located next to the Network
Port window.
Once it scans the system, the Wizard will offer to configure the SoundGrid network. Choose NEXT to start automatic configuration.
This will take a few moments. Choose CANCEL to configure manually. A drop-down menu will provide a list of configuration
templates. Choose the template that best describes your devices and production needs. You can also save and load your own
templates.
