ALLEN & HEATH
MIXWIZARD WZ14:4:2+ SYS-LINK OPTION
7
u
u
u
u
u

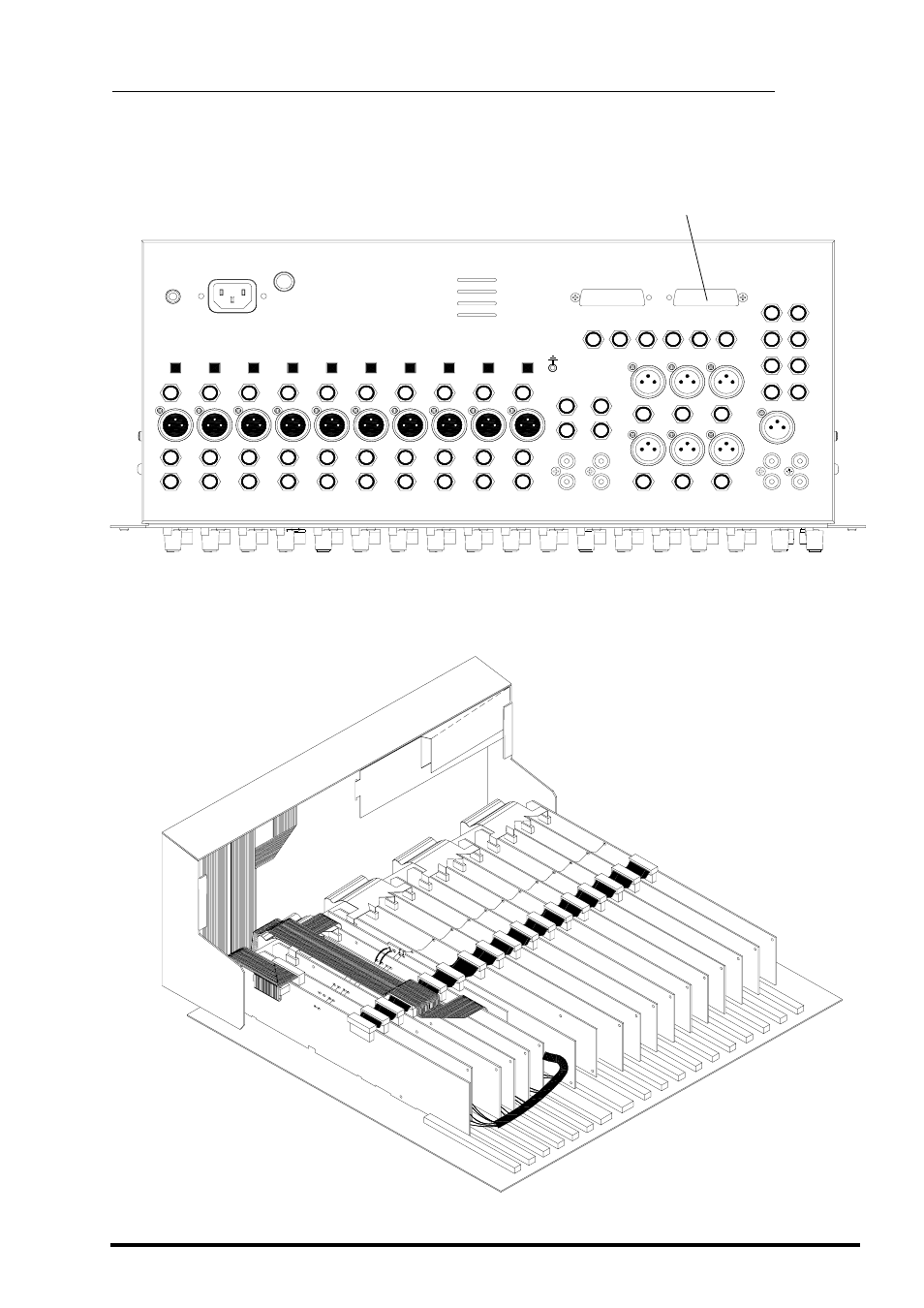

fig. 7
To fit the two SYS-LINK D type connectors to the rear panel of the connector module it will be necessary to partially
remove the the connector circuit board assembly from the rear panel.
Working from the rear of the console remove screws (A) fixing the XLR and phono connectors to the
panel and using a 12mm Nutdriver or pliers, remove jack nuts (B).
SYS-LINK blanking panel
Þ
CONNECTOR CIRCUIT
BOARD ASSEMBLY
Carefully release the connector circuit board from the rear panel and lean it out just enough to gain access
to the SYS-LINK blanking panel.
fig. 8
FITTING THE SYS-LINK CONNECTORS TO THE REAR PANEL
A
B
B B
B
B
A
A
B
