ALLEN & HEATH
MIXWIZARD WZ14:4:2+ SYS-LINK OPTION
3
Before beginning any service work, remove all power to the unit and disconnect any signal cables where
necessary. The rotating connector module must be set for desk top operation to gain access to the cover. Ensure
adequate lighting and use the correct tools.

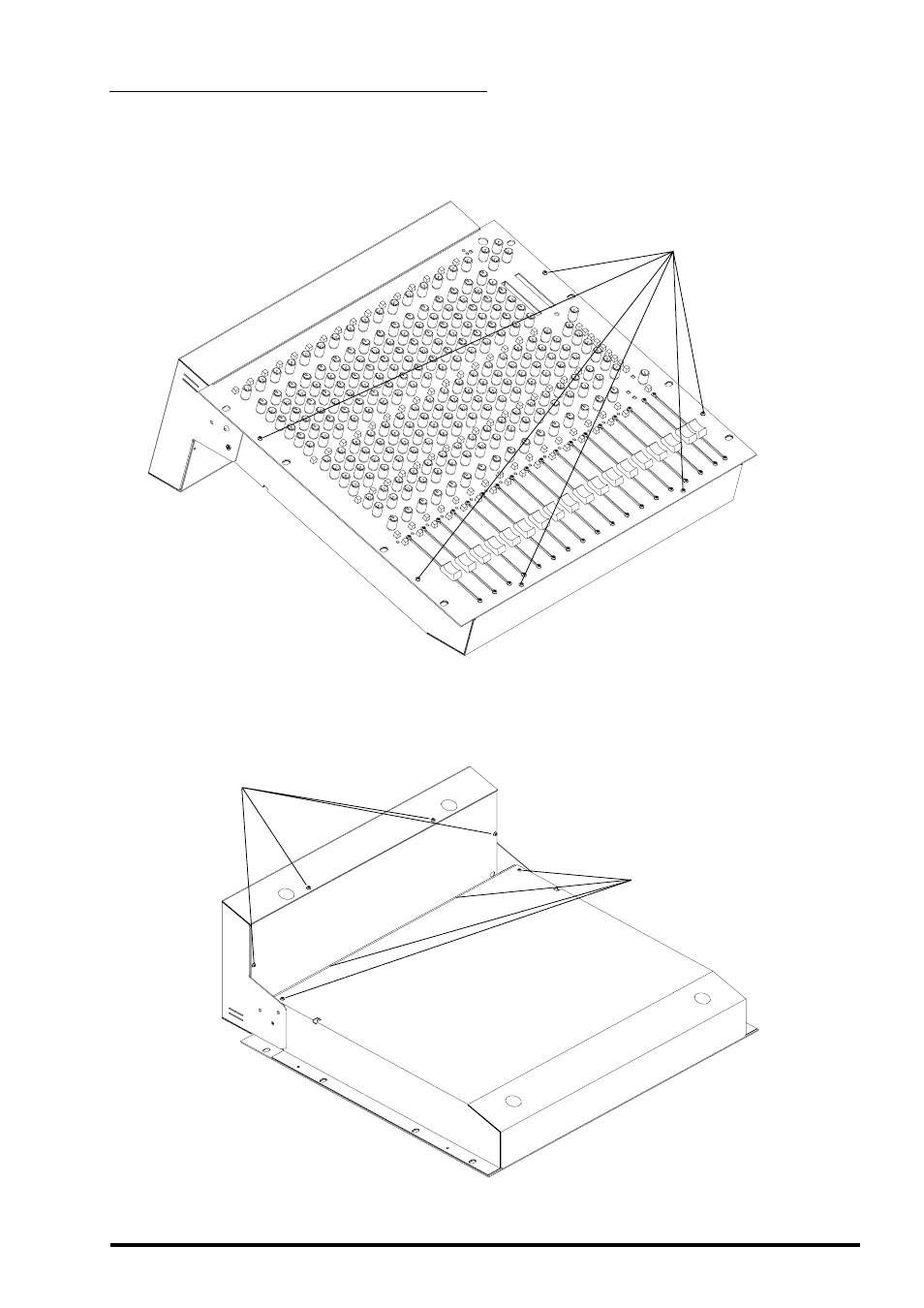

Working from the front of the mixer remove screws and nuts (A) fixing the base cover to the front panel.
A
B
With the unit inverted, remove the 4 remaining screws (B) in the base cover and remove the base, then
remove the 4 connector module cover screws (C) and remove the cover.
BASE
C
p
p
p
p
p
CONNECTOR COVER
fig. 2
fig. 3
REMOVING THE REAR COVERS
