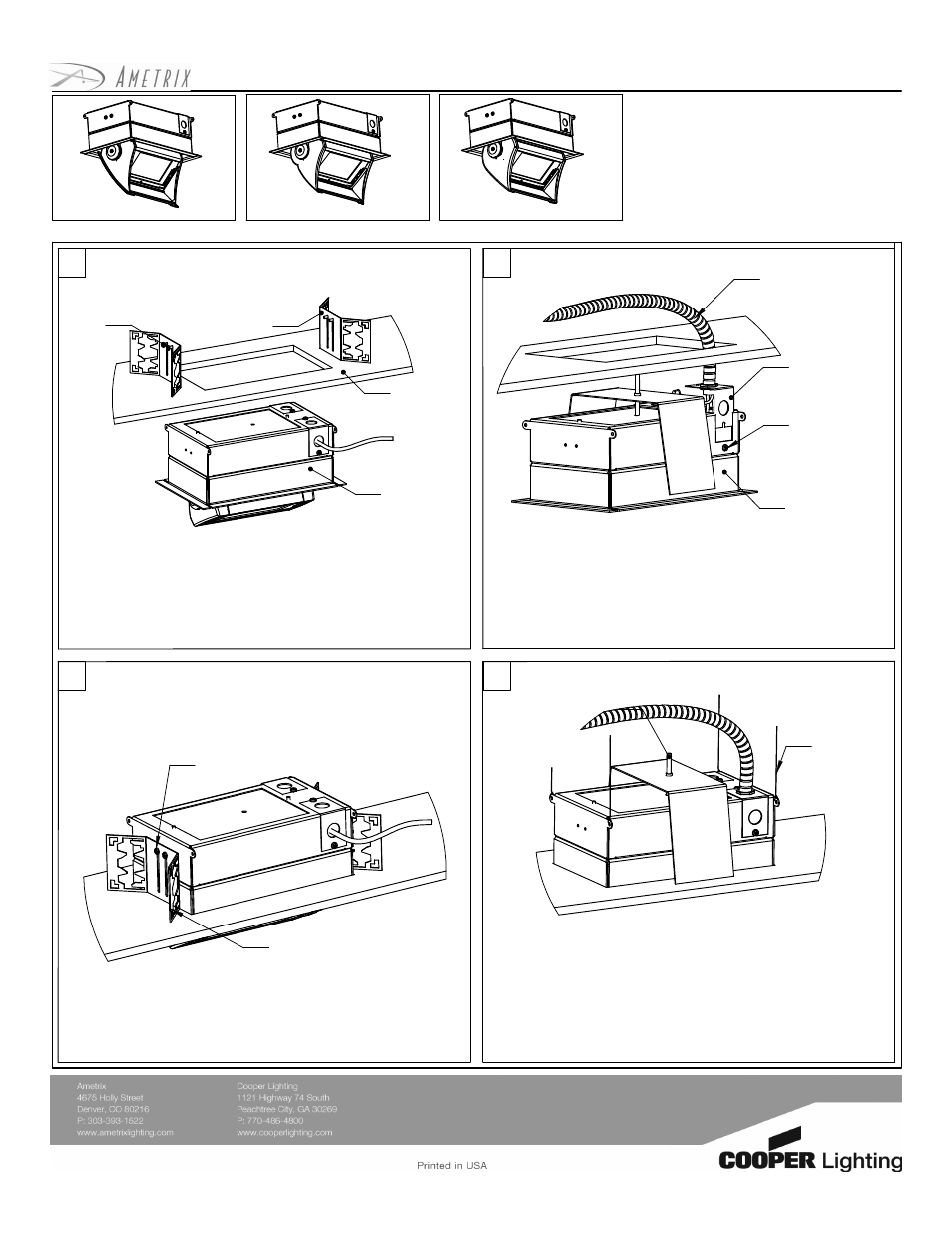

Securing the fixture in drywall

Securing fixture to ceiling tile

Semi-recessed fixtures shown without thermal protectors

Warning

: Before starting any work ensure

that all sources of power are turned off. All

work must meet local/national codes and be

performed by a certified electrician. Do not

mount fixtures vertically.

Installation Instructions

Vault w/ visor

C-Scroll w/ visor

Roundel w/ visor

These installation instructions are valid with the above Ametrix styles.

2.

3.

Sheet 2 of 4

Small, INDOOR

SRI

(Semi-Recessed, Integral ballast)

Visor and Non-Visor

ADY071458 REV A (ECN070344)

3.

2.

Fixture
assembly

Ceiling tile

Universal
bracket

#10-32 x3/8"
Pan head screw
(4x)

1. If possible, remove ceiling tile from grid to facilitate fixture
installation.
2. Using cut out dimensions provided on page four(4), cut
appropriate size opening in ceiling tile.
3. Insert fixture assembly into cut out in ceiling tile.

1. Using cut out dimensions provided on page four(4), cut
hole into dry wall and feed power wire to hole.
2. After removing fixture head, loosen #10-32 x3/8" Pan head
screws and remove cover plate closest to power feed.
3. Knock out appropriate hole for conduit and attach as shown
on page three(3).
4. Replace cover plate and secure with #10-32 x3/8" Pan head
screws and press fixture housing into hole in drywall.

Wiring the fixture

(drywall)

Cover plate

Conduit from
power source.
(by others)

Fixture housing

#10-32 x3/8"
Pan head screws
(2x)

#10-32 x 3/8"
Pan head screws
(4x)

Universal brackets
(2x)

Replacing brackets on fixture housing

(ceiling grid)

1. Loosely reattach brackets to both sides of fixture housing.
2. Press brackets flush to ceiling tile and secure using #10-32 x
3/8".

1. Prior to pushing fixture into hole in drywall, tie off fixture
housing to structure using saftey wire(by others) as show on
page three(3).
2. Gently push fixture housing into hole and tighten 1/4-20 x 1
1/2" Pan head screw from inside fixture housing to tighten
drywall bracket around drywall.
3. Connect appropriate wires from fixture head and ensure all
wires are properly matched.
4. Replace fixture head assembly on keyhole screws and
tighten.

1/4-20 x1 1/2"
Pan head screw

Safety wires
(by others)
(4x)
