8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Workrite Sierra HX™ 2-Leg Crank Workcenters - Assembly Instructions
¾
Turn the worksurface over to the top/good finish side and use the ¾" wing drill bit to finish drilling the
hole from the top down, to ¾" diameter, using the ⅛" hole as a guide.
Flip table back and reposition leg assembly.
Drill pilot holes and insert screws for two positioning holes first being sure to center the leg over the
crank handle hole, then use the other screw holes to mark the location of the remaining holes for each
leg. Attach the desk at all points.
c
c
d
d
b a
1¼"
6½" var.
var.
10
a
b

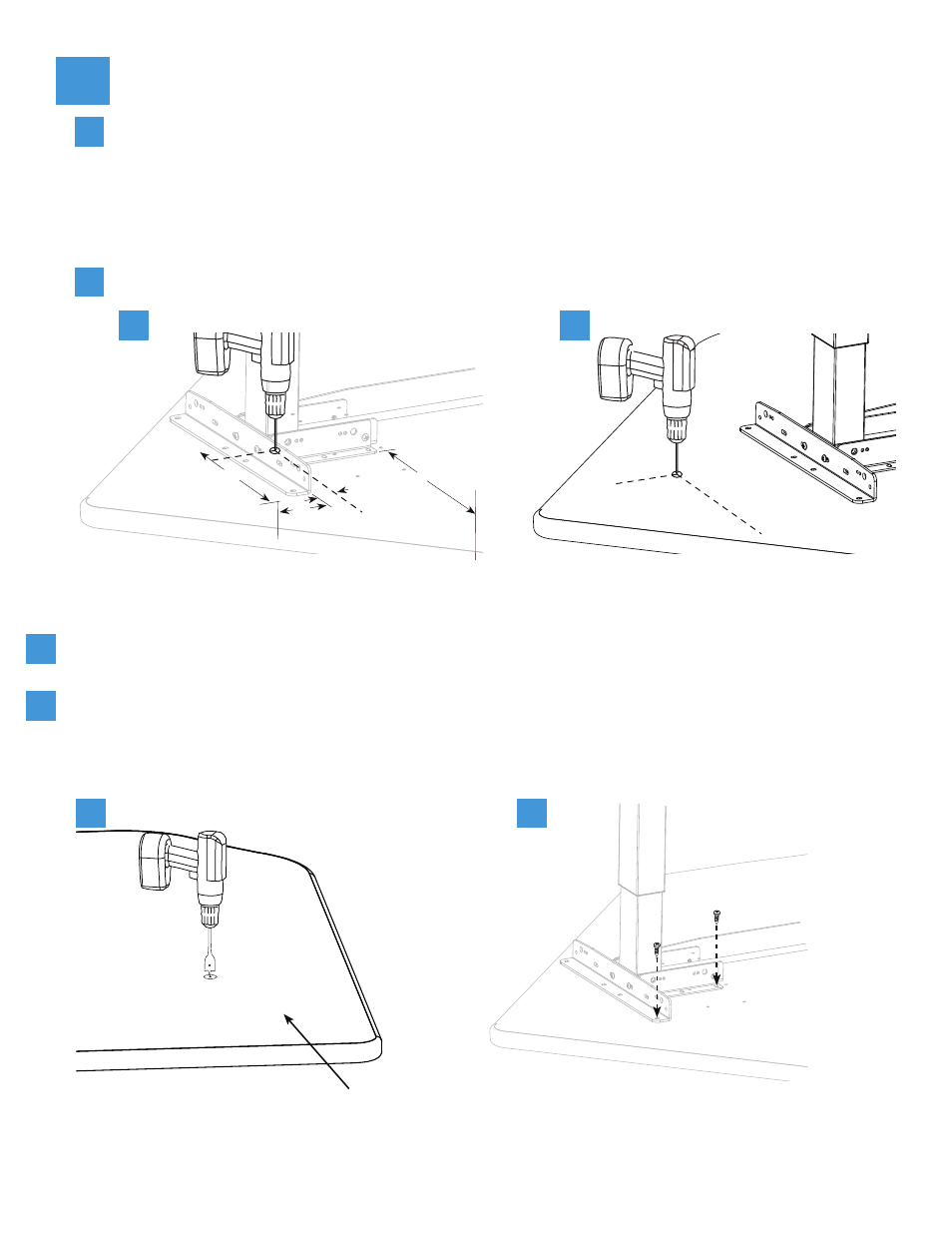

Base-Only Top-Crank Models: Loosely Secure Table Base to Tabletop
Position the leg assembly on the face-down table top. Center the assembly on the table so that
neither of the side legs overlap the edge. Measure carefully to ensure that your table will be
positioned correctly as detailed below before drilling.
Mark ¾" hole for crank handle: Trace around outside of leg bracket before removing leg
assembly. Measure from front left corner of leg bracket as shown, then mark hole placement. The
hole should be directly under the center of the leg.
Use the ⅛" drill bit to drill from the bottom of the worksurface completely through the
worksurface as step one in drilling.
Top of worksurface
