Workrite Sierra HX™ 2-Leg Crank Workcenters - Assembly Instructions
A
Tabletop (size and shape differ
for each model)
Qty: 1
E
Leg
Qty: 1
N
5 /
32
" Allen Wrench
Qty: 1
H
¼-20 x ⅝" Button
head Machine Screws
Qty: 21

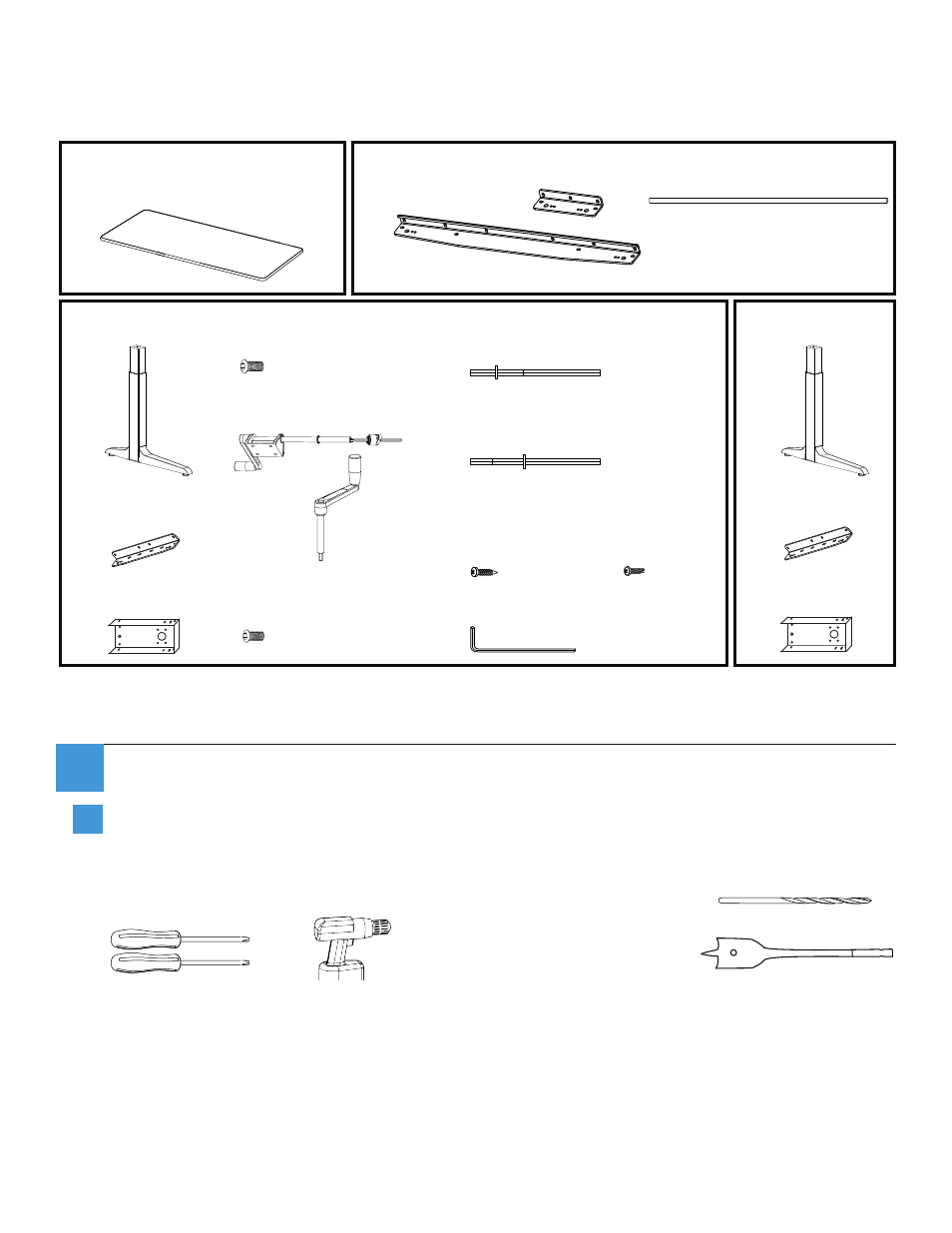

Parts grouped by carton
L
Deep Hex Shaft
Qty: 1
K
Shallow Hex Shaft
Qty: 1
D
Crank Tube
Qty: 1
B
Long Brace
Qty: 1
E
Leg
Qty: 1
G
Leg Cap
Qty: 1
C
Short Brace
Qty: 2
F
Medium Brace
Qty: 1
I
Crank Handle Assembly
Qty: 1
OR
J
#12 x ½" Self Tapping
Button Head Screws
Qty: 13
M
#12 x ¾" Pan Head
Sheetmetal Screw
Qty: 32
OR
#10 x ⅜" Pan Head
Type 23 Screw
Qty: 36
M
#12 x ¾" Pan
Head Sheetmetal
Screw
Qty: 32
#10 x ⅜" Self
Tapping Pan
Head Screw
Qty: 36
OR
F
Medium
Brace
Qty: 1
G
Leg Cap
Qty: 1
1
Verify that you have all the hardware and tools needed for the assembly
Check your cartons against the list above to verify that you have all the parts needed.
You will also need the following tools:
#2 tip Phillips screwdriver or drill bit
#3 tip Phillips screwdriver or drill bit
or
a
If you do not have a Workrite tabletop
you will also need:
⅛” pilot drill bit
For Top-crank models only:
¾” wing type wood drill bit
¾
