Vinten Radamec HDVRC - Manual (Page 65)

Publication Part No. V4009-4980 Issue 3.1 63
2. Double click the icon on system tray to start the VRC DB Schedule Service UI (Figure 32).
3. All three servers (SQL Server Browser, SQL Server Express and DB Schedule Service) should be
running as shown in Figure 32. If any of the servers need to be started, click the appropriate Start
button for the server in the Database Service UI window.
4. Click Configure Schedule Service to display the Scheduled DB Services window (Figure 33). This
window displays the service schedule list.
The following options are available from the Scheduled DB Services window:
• New Service—launches the Service detail window where you can set the parameters of
the new service required.
• Edit Service—highlight an existing service in the list and then select Edit Service to
display the detail window where the stored parameters can be edited.
• Execute Service—use this option to run a once only new service or run a stored service
once only.

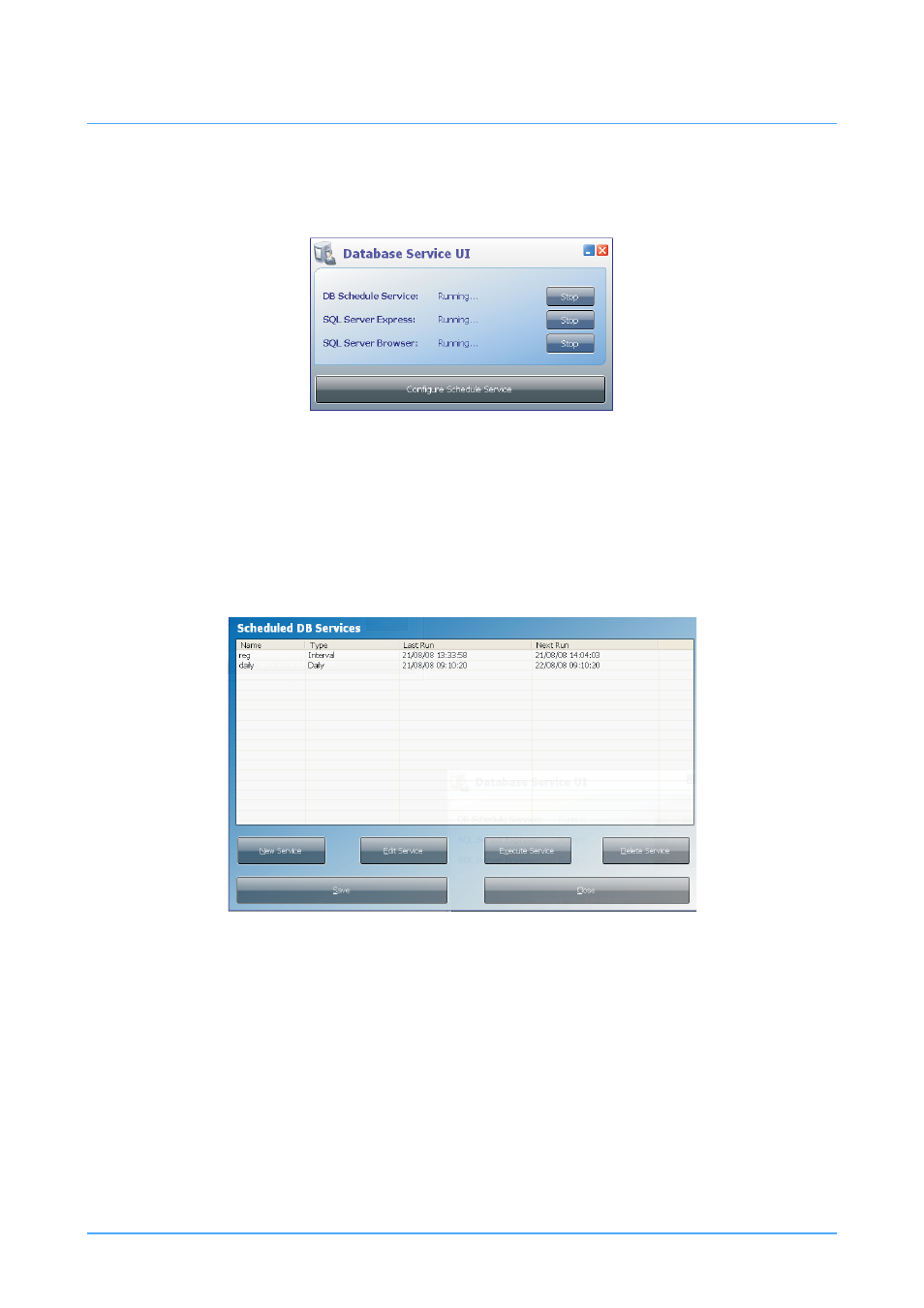

Figure 32 VRC DB Schedule Service UI
Figure 33 VRC DB Schedule Service List
