Operators guide
17
[19] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lens/control connector
[20] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power/data connector
[21] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power/data connector (military)

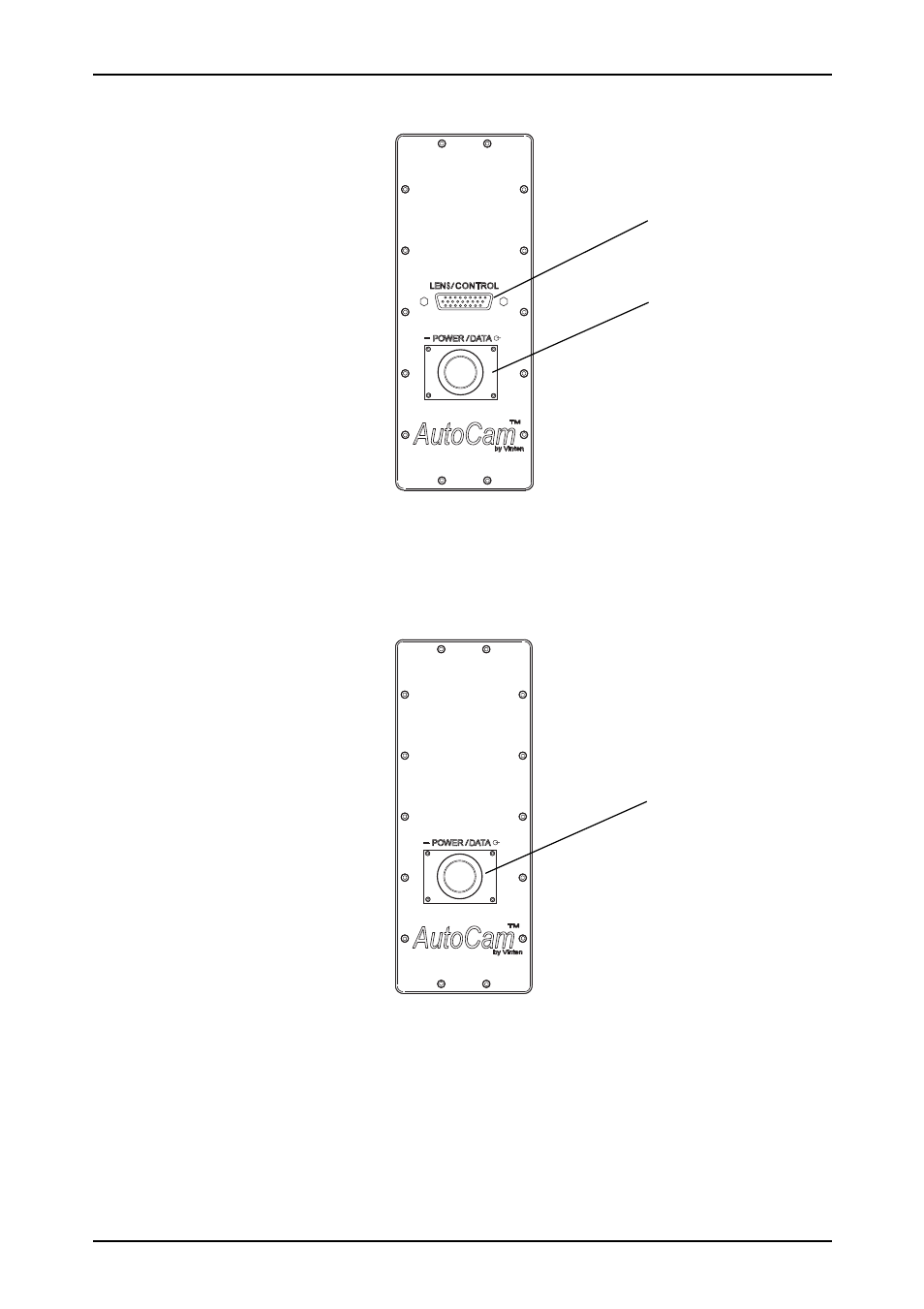

Fig 5 External connections on the HS-105P studio pan/tilt head
Fig 6 External connections on the HS-105SPAWAR pan/tilt head
HS-105P
[19]
[20]
HS-105SPAWAR
[21]
