MultiController II
Installation
User Manual
3-11

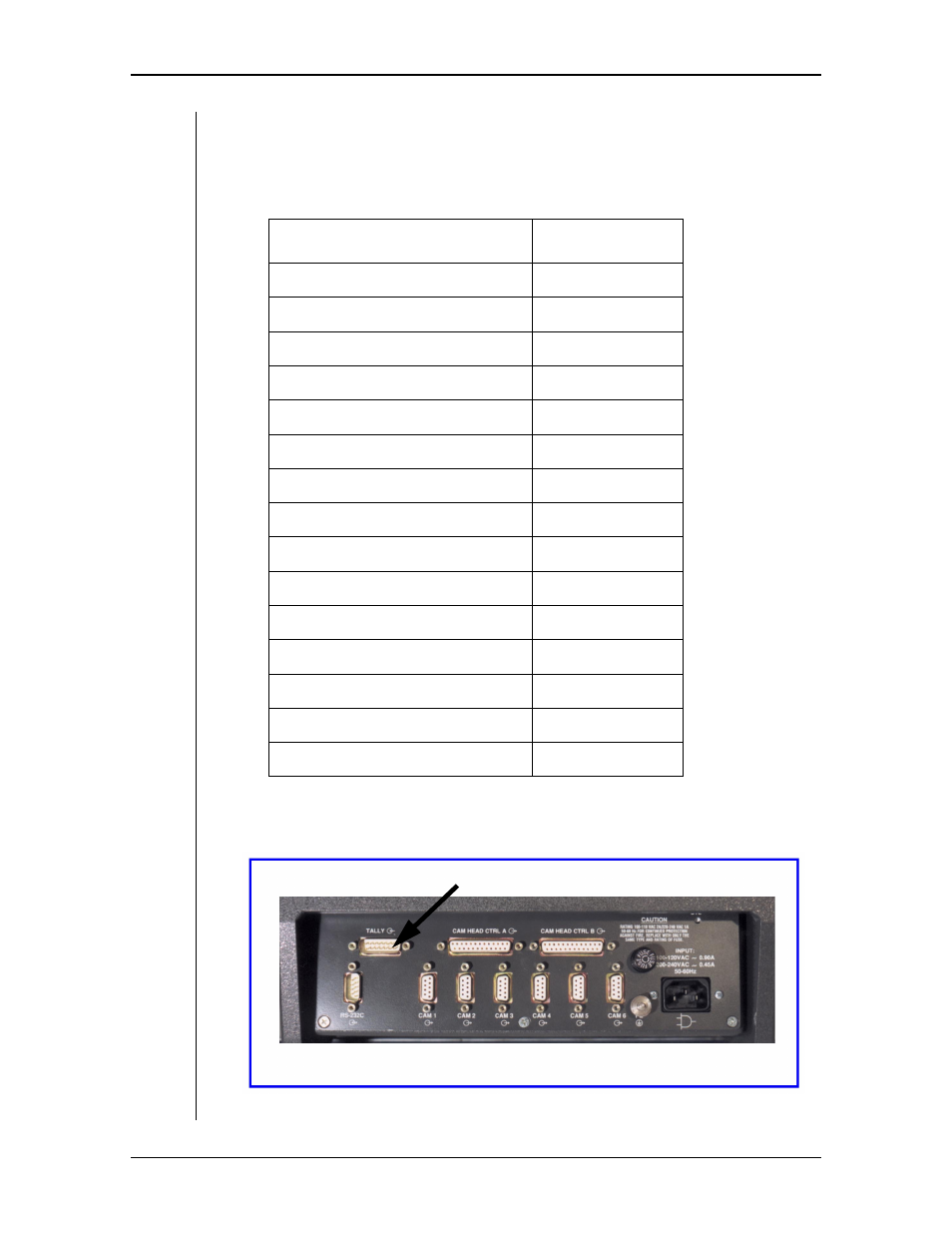

Tally
1.
The Tally input requires a DC voltage of between 10 V and 30 V to activate
the Tally LEDs. The pin out for the chassis mounted male 15 pin D connec-
tor is:
2.
Connect the tally indicator signals from your switcher to the 15 pin D con-
nector on the MultiController II.
Tally Connector Pin #
Signal
1
Camera #1 (-)
2
Camera #2 (-)
3
Camera #3 (-)
4
Camera #4 (-)
5
Camera #5 (-)
6
Camera #6 (-)
7
no connection
8
no connection
9
Camera #1 (+)
10
Camera #2 (+)
11
Camera #3 (+)
12
Camera #4 (+)
13
Camera #5 (+)
14
Camera #6 (+)
15
no connection
Tally Input
