Page 40
MultiController II
Installation
3-6
User Manual
Connect the AC power cord.
Grounding For CE Compliance
To meet the CE requirements for RFI, the MultiController II chassis must be
grounded (earthed) to a true AC ground (earth) point. Connect a ground (earth)
wire to the terminal on the rear of the controller and tighten securely.
Power Supplies
Install the rack mount power supply (or supplies) up to 500 ft. (150 m) from the
pan/tilt heads. Connect the AC power cord(s).
Router
If you are using a video router controlled by the MultiController II to monitor
the video output of the camera under joystick control, install it at a convenient
location. Connect the AC power cord.

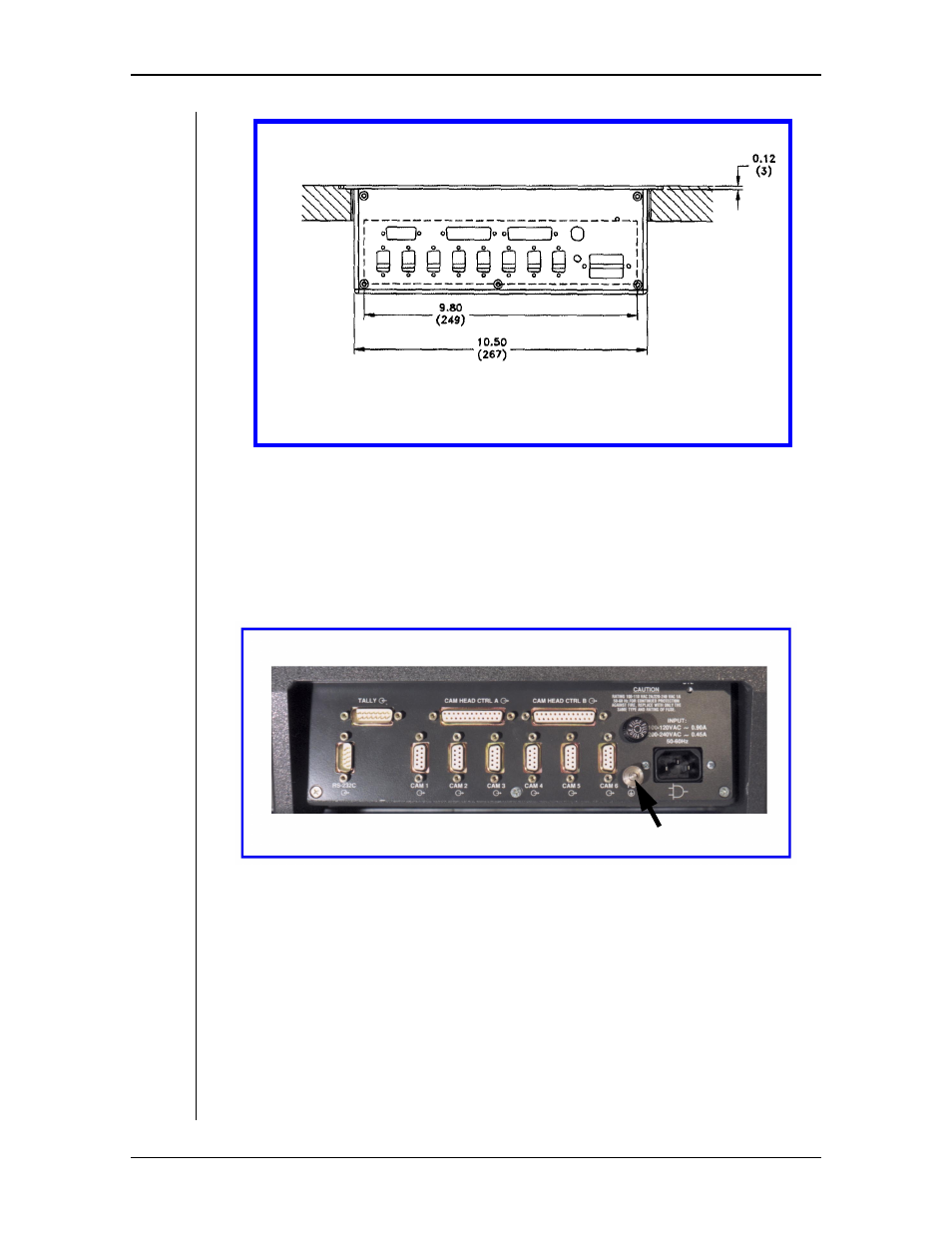

Rear Panel Clearance
Ground (Earth) Terminal
MultiController II Rear Panel
