LINE SET PIPING DIAGRAMS

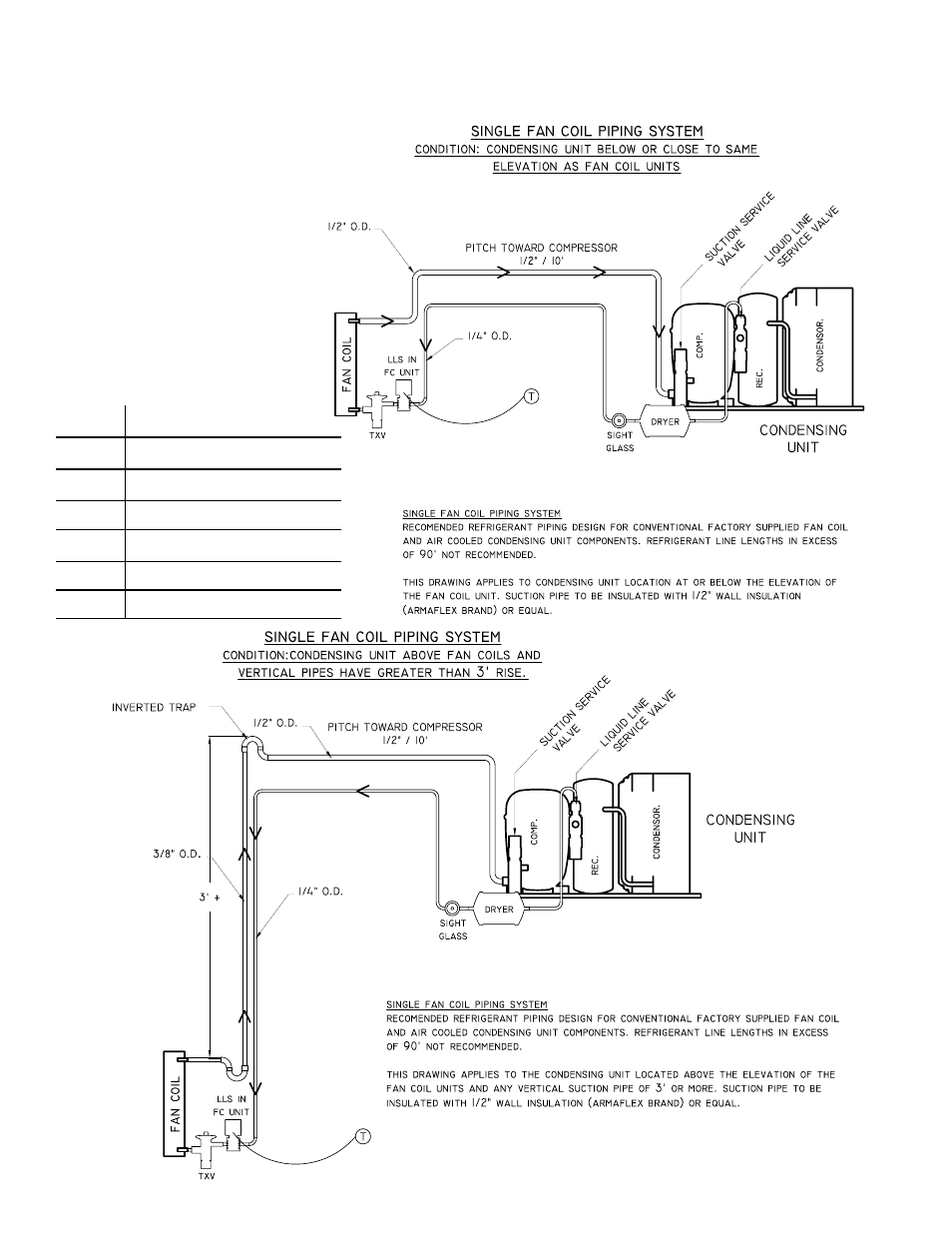

These are two options for running the line
set from the coil to the condensing unit.
Option 1 is specifically for when the system
is installed with the condensing unit below
or leveled to the coil. Option 2 is for when
the system is installed with the
condensing unit at a higher
elevation than the coil.
Option 1
Option 2
LEGEND
LLS
Liquid Line Solenoid
TXV
Thermal Expansion Valve
COMP Compressor
REC
Receiver
EVAP. Evaporator
O.D.
Outer Diameter
