Vintage Cellars Platinum Split Tech Manual User Manual
Page 17
www.whisperkool.com | Page 15
PREPARING THE FULLY DUCTED EVAPORATOR (FAN COIL UNIT)
1. Remove the knockouts for the drain line, line set, and electrical on the bottom or rear of the unit
depending on your installation location.
2. Remove the insulation from the knockout holes.
3. Route the bottle probe from the cellar to the evaporator unit. Follow the directions on page 14 for
correct installation and location of the bottle probe.
4. Follow the directions on page 18 to mount the remote keypad and run the communication cable to the
evaporator unit.

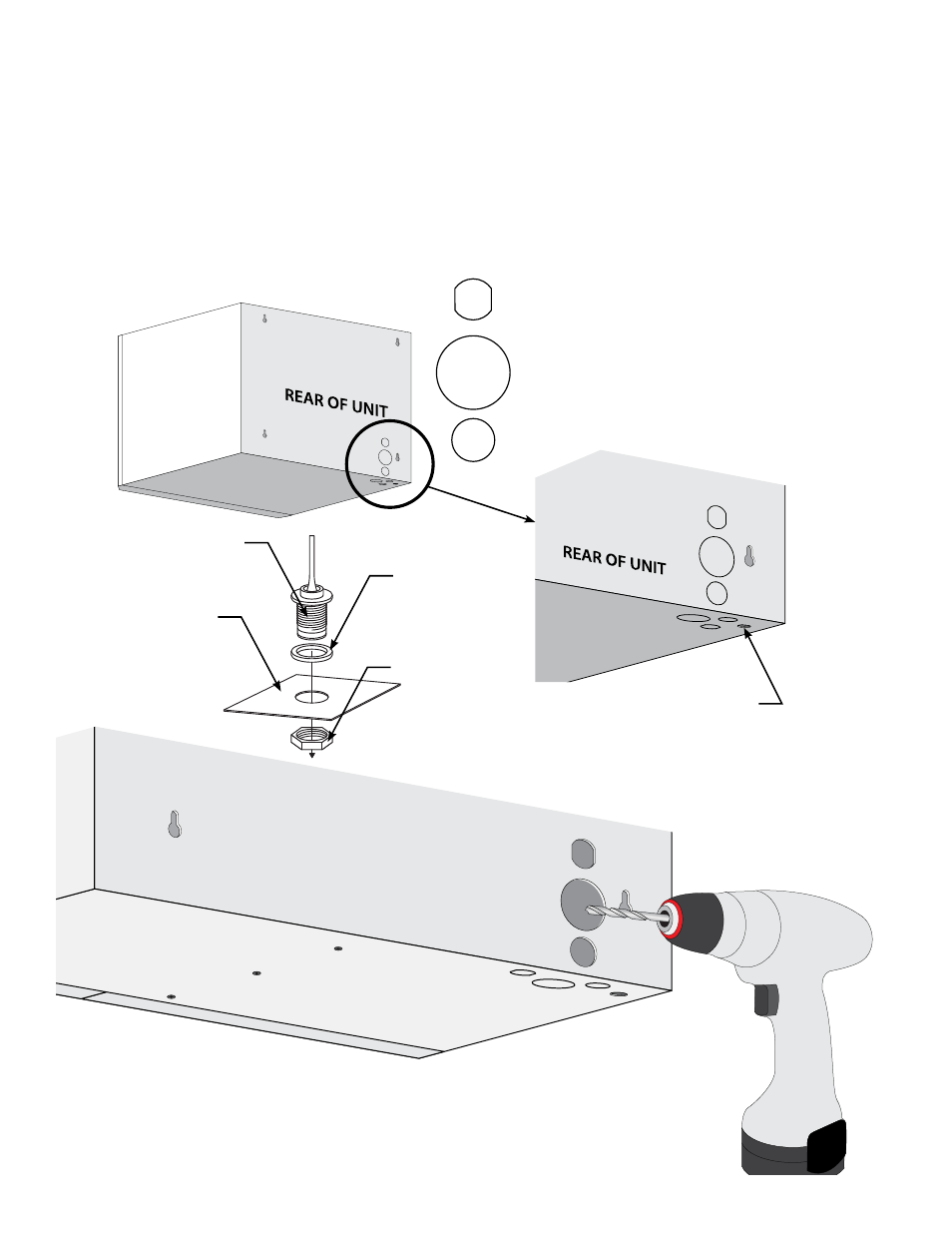

RUBBER WASHER
NUT
UNIT PANEL
CIRCULAR CONNECTOR/
BOTTLE PROBE INPUT
Power
3/8” Suction
1/4” Liquid
Drain
HOLE FOR CIRCULAR CONNECTOR
(BOTTLE PROBE INPUT)
