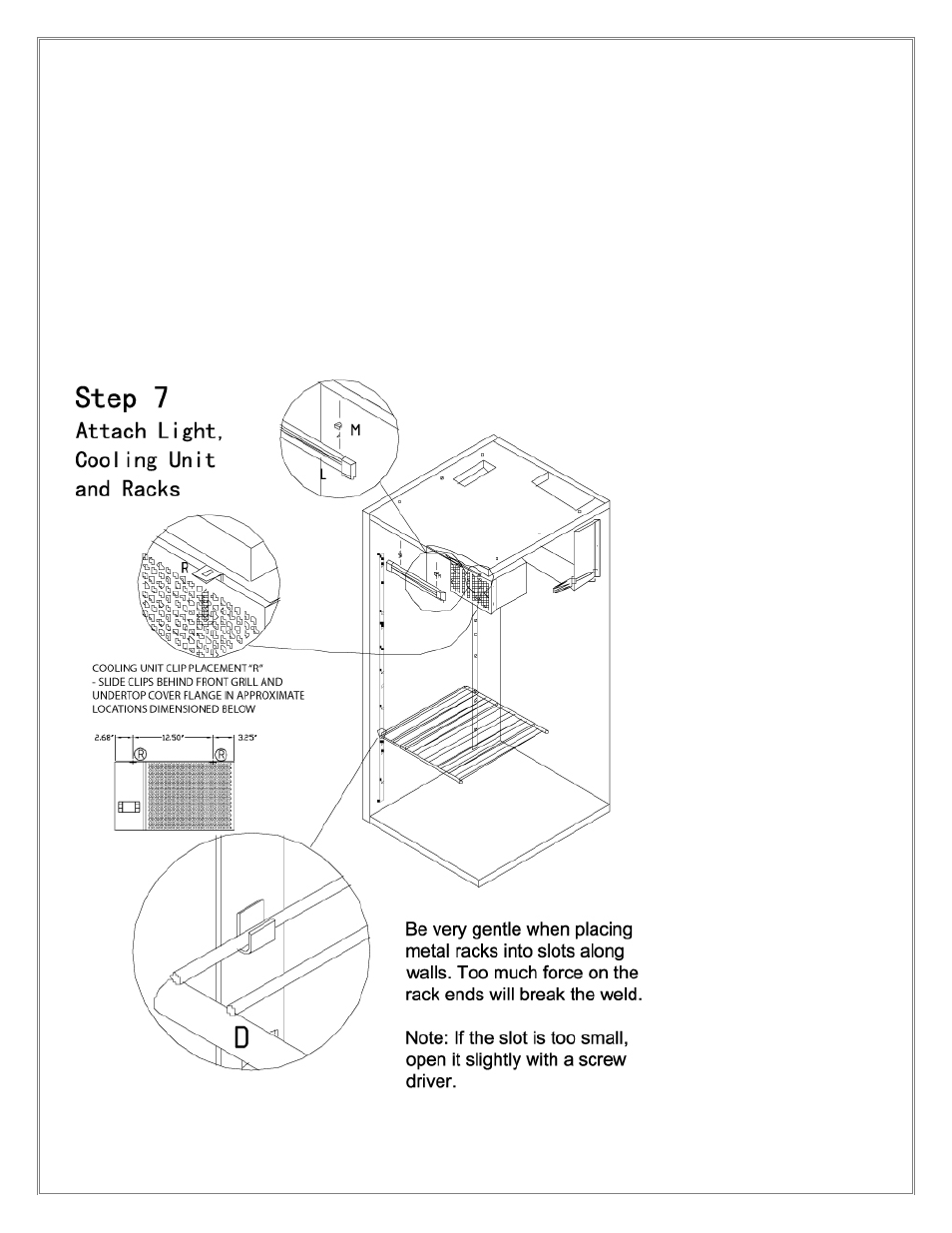

Saddle:
Center cooling unit saddle on back wall opening. Using long
screwdriver, attach to wall and ceiling.
Top Vent:
Slide in cooling unit until clips can be bolted into first two holes in
ceiling. Make sure the top hole in cooling unit aligns with ceiling
opening.
Rear Vent:
Saddle is optional for
this configuration.
Slide in cooling unit
until it rests on back
wall. Use 2
nd
row of
ceiling holes to
mount clips. Make
sure cooling unit
blows hot air out the
rear. Place cabinet 4
inches from wall.
Apply butyl caulk
around all the
exterior seams where
the cooling unit
contacts the saddle
and cabinet.
