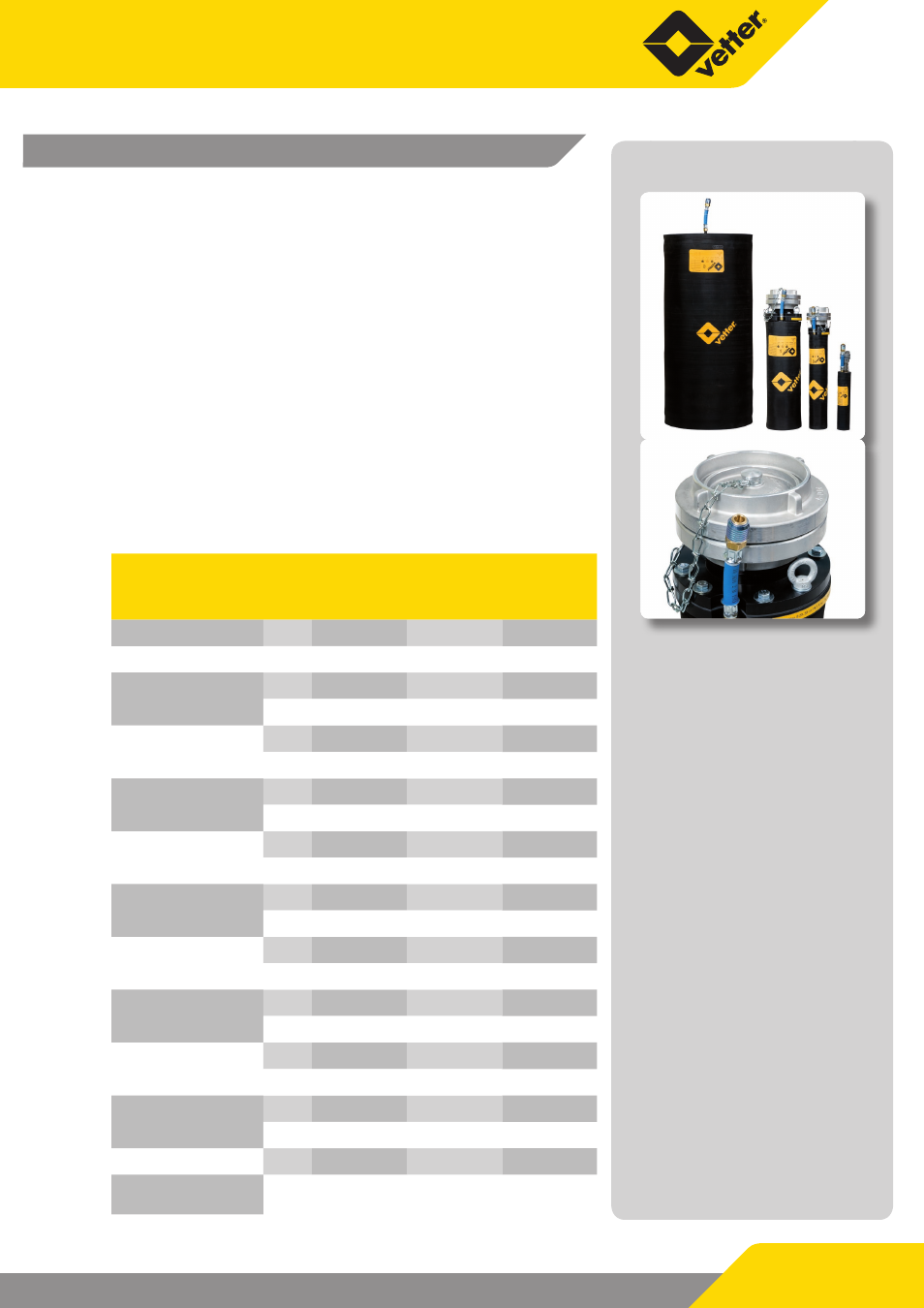

7. VETTER Bypass Bags 1.5 bar FS
7.1 Description
Vetter bypass bags 1.5 bar can, for example, be used for purpo-
seful detour or for pumping out extinguishing water. They can
also be used for channel repairs and reconstruction as two-sided,
temporary blocking with conduction and pressure relief from the
incoming pipeline to the outgoing pipeline.
9 Please observe the permitted maximum counter-pressure of
5 m water column, resp. 0.5 bar, when using bypass bags.
9 Connect the inflation hose, 1.5 bar, to the bypass bag and the
single controller, 1.5 bar fitting.
9 Insert the bypass bag along its full length into the pipeline
and secure it against catapulting out using suitable devices,
e.g. a structure support. Inflation of the bypass bag can then
be made as described in chapter 4.
7.2 Technical data Bypass Bags 1.5 bar FS
Art. No. 1483002200 1483001400 1483001500
Art. No. with integra-
ted inflation hose
1483002100 1483001100 1483001200
Description BK 7/15 FS BK 10/20 FS BK 20/50 FS
Bypass size 1“ 2 1/2“ 4“
Pipe diameter
cm 7 - 15 10 - 20 20 - 50
inch 3 - 6 4 - 8 8 - 20
Diameter
cm 6.8 9.7 19.5
inch 2.68 3.82 7.68
Operating pressure
bar 1.5 1.5 1.5
psi 21.75 21.75 21.75
Test pressure
bar 1.95 1.95 1.95
psi 28.3 28.3 28.3
Test counter-pressure
m WS 5 5 5
psi 7.25 7.25 7.25
Cylinder length
cm 30.0 48.5 55
inch 12.00 19.09 21.65
Total length
cm 36.00 55.5 67
inch 14.17 21.85 26.4
Nominal capacity
l 2.56 9 63
cu.ft. 0.09 0.32 2.22
Air requirement
l 6.4 22.5 157.5
cu.ft. 0.23 0.8 5.6
Weight kg 3.4 3.4 9.4
Weight with integrated
inflation hose, 10 m
kg 6.1 6.1 12.2
