Vetter Mini-Lifting Bags 8.0 bar
Page 5/19
Pos. Article No. Description
6 1600 0120 00 Adapter for construction site
compressor
7 1600 0087 00 Hand pump (7)
7
8 8 1600 0094 00 Foot pump (8)

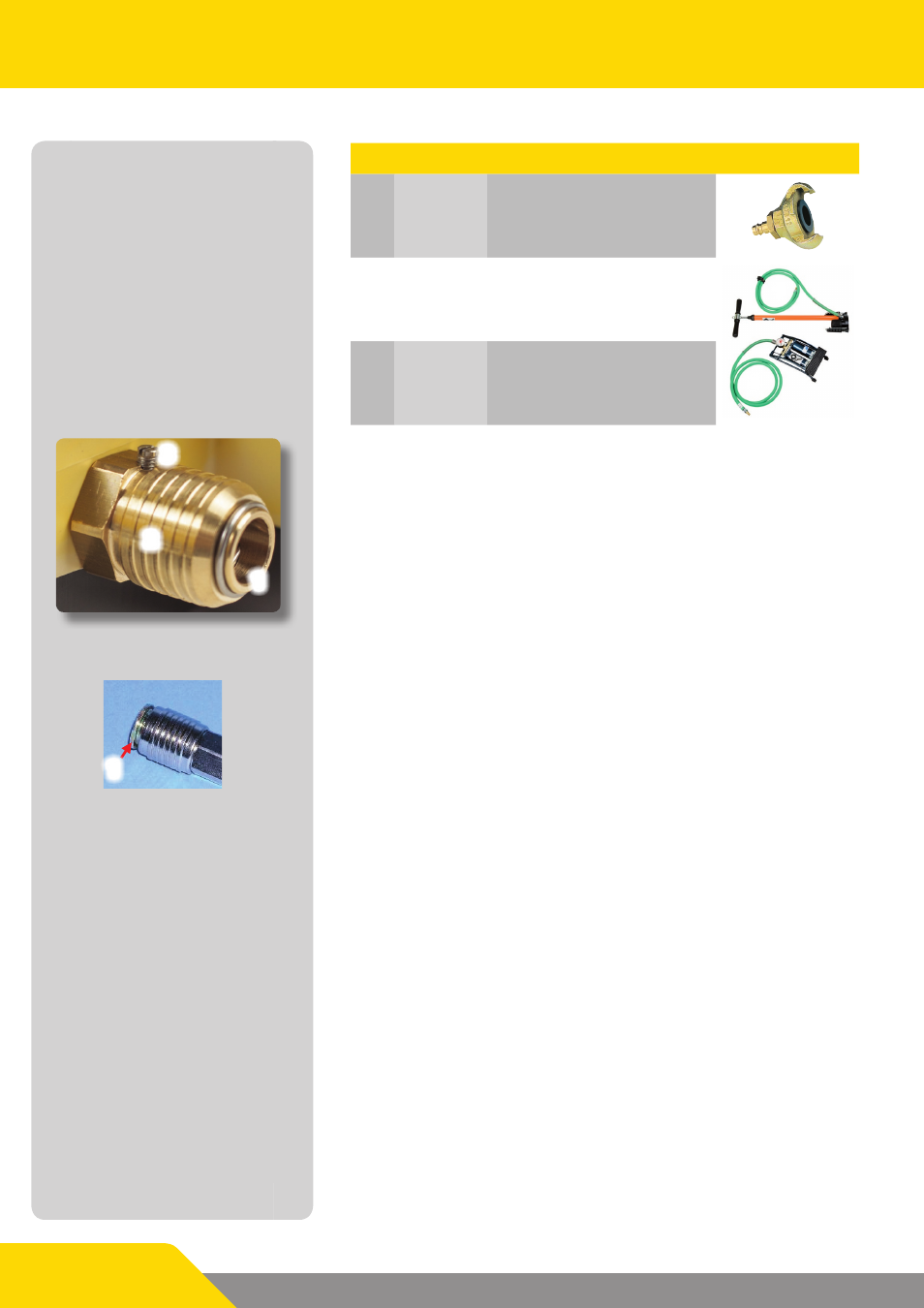

2.3 The Vetter safety coupling system
a. Inlet coupling controller
Connect the air supply hose, resp. connection hose of the pressure re-
ducer, to the plug nipple of the inlet coupling (1) on the controller. In
doing this, firmly press the nipple into the coupling until it latches in.
Turn the brass sleeve (2) of the coupling opposite to the safety pin (3) for
additional safety.
b. 8 bar inflation coupling
Firmly press the hose, resp. bag nipple, into the coupling until it latches
in order to connect the inflation hose with the corresponding controller,
resp. with the Mini-Lifting Bag. The coupling sleeve must lay on the sup-
port ring without any gap (1).
The nipple must be firmly pressed against the spring pressure in the
coupling in order to release the connection (only in pressure-free con-
dition). At the same time, the coupling sleeve must be pulled back. The
connection is then released.
1
1
2
3
