Vetter Mini-Lifting Bags 8.0 bar
Page 3/19
The built-in safety valve automatically activates when the bag is
over-inflated above the maximum operating pressure of 8 bar or
when there is an unforeseen additional burden of the bag.
The activation tolerance for opening and closing of the
safety valve can be +/- 10 %.
Press the control lever in the opposite direction in order to deflate
the bag or to reduce the load.

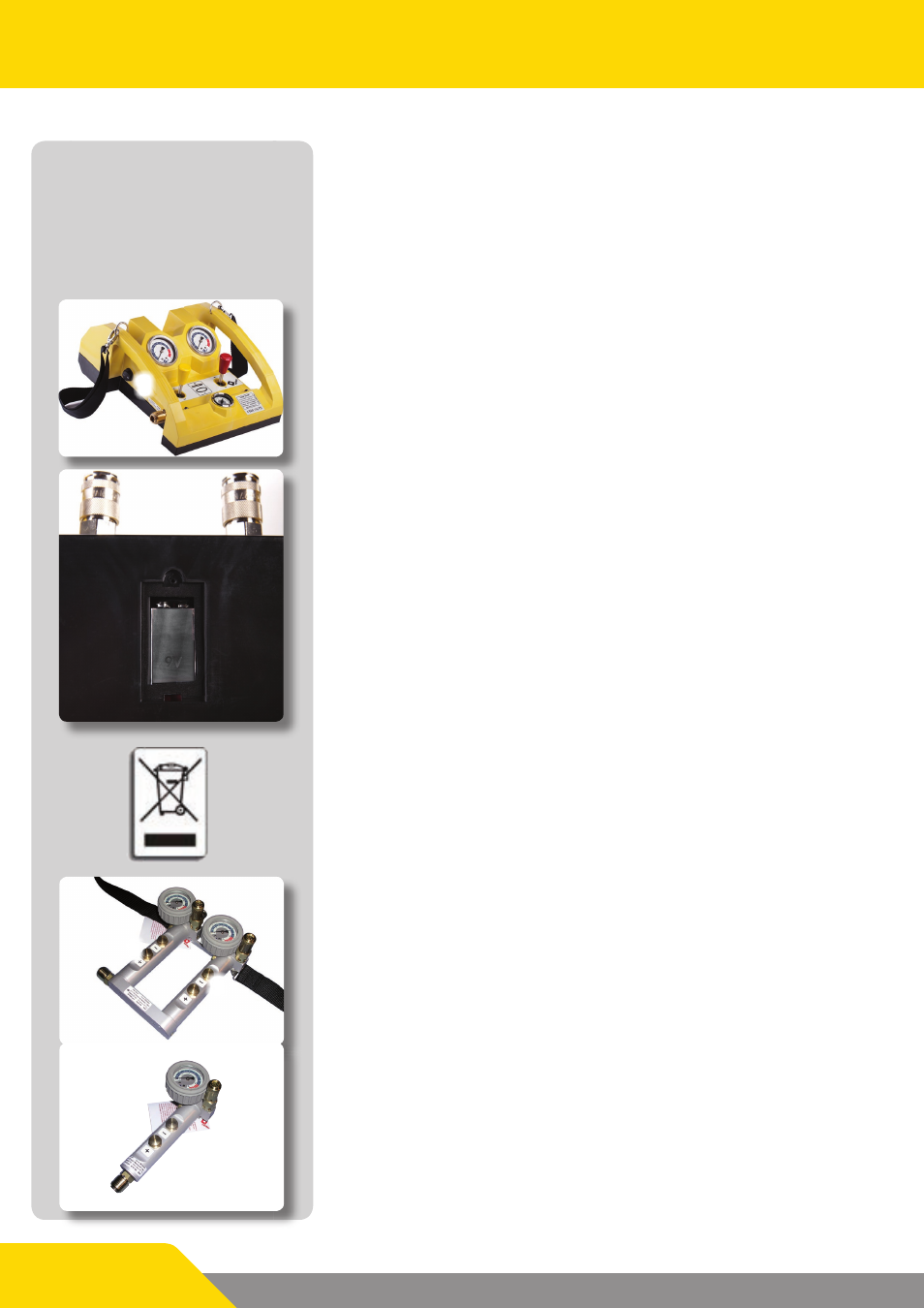

Additional information for illuminated control element
Air CU 8 bar deadman lighting
The lighting of the control element illuminates all couplings,
switch levers and manometers. It is switched on and off with
switch (1) on the side.
The control element is supplied by a 9 V block battery. Since the
entire lifting bag system is designed for a temperature range of
-20 °C to +55 °C, only batteries with this temperature range are
allowed to be used. Based on the current state of the art, only li-
thium batteries meet this requirement.
To insert the battery, unscrew the battery compartment, replace
the old battery with a new one and screw the battery compart-
ment back together.
Control elements with lighting come under the German Law on
electrical and electronic devices (ElektroG) of 24 March 2005 for
implementation of the EC Directive 2002/96/EC on electrical and
electronic waste – WEEE Directive.
The label attached to the battery compartment cover points
out that the electronic components in this product must not be
handled as domestic waste; they have to be returned to the ma-
nufacturer (return freight paid) for recycling.
d. Dual deadman controller 8 bar, aluminium
Press down the lower button (1) in order to inflate the bag. Release
the button, thus ending the inflation process, when the required
operating pressure for the lift power or lift height is reached. La-
test when the safety valve blows off or the red marking is reached!
Inflation is stopped when the button is released and it returns
back to the zero position. The bag is released by pressing the up-
per button (2).
e. Single deadman controller 8 bar, aluminium
The single deadman controller can be used when only one Mini-
Lifting Bag is to be used.
2
1
1
Different couplings!
