4.2 Operation with other compressed air

supplies

Basically, any air supply which is available can be used for opera-
tion of Mini-Lifting Bags as long as the pressure does not exceed
10 bar and the air is free of oil. Amongst others, the set of transiti-

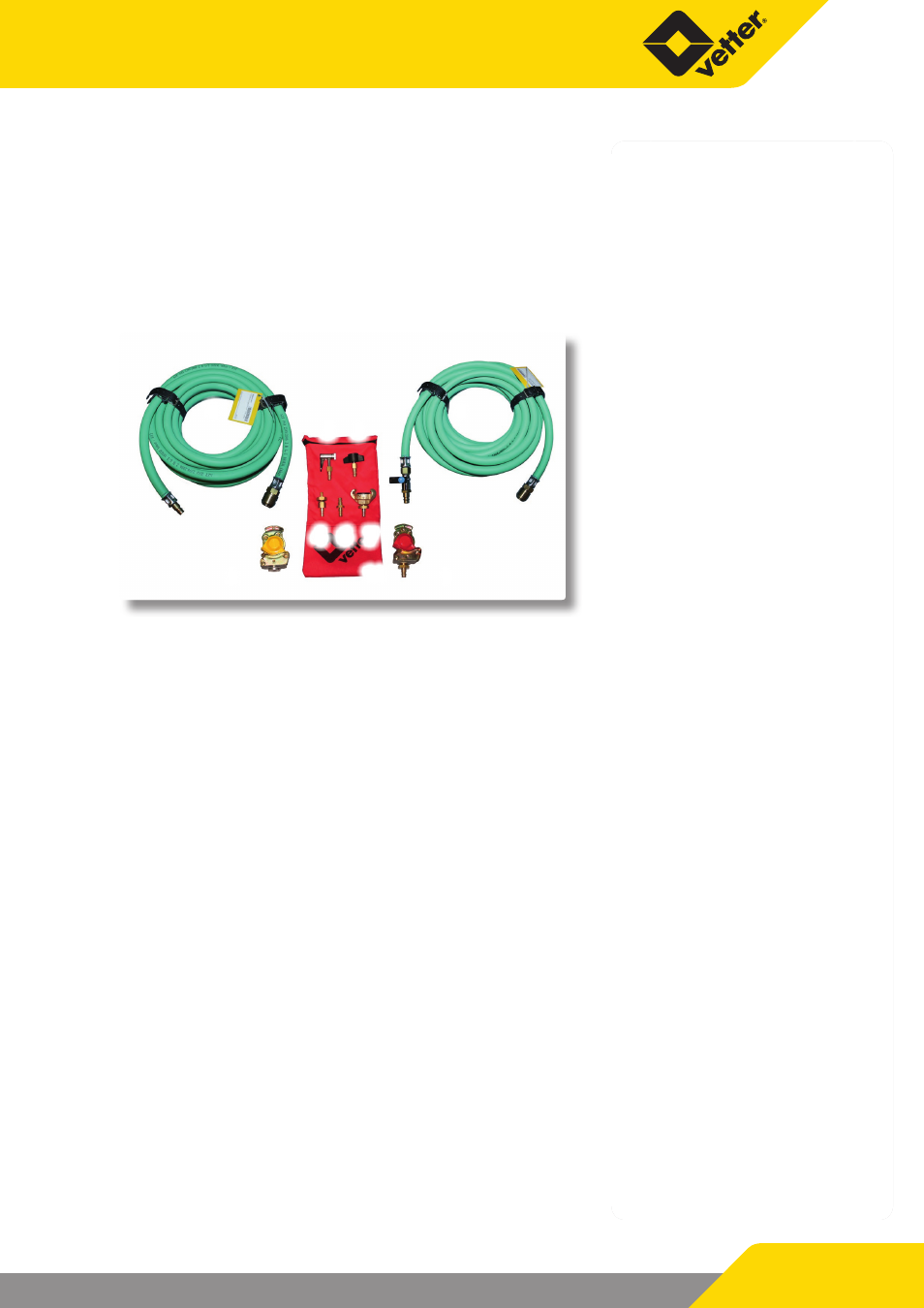

on pieces (Art. No.: 1600 0125 01) with the following adapters are
available for operation with other air sources:

2

1

3

4

5

6 7

8

9

10

1. Truck compressed air connection, dual brake system.

For tapping air out of the trailer coupling head.

2.

Dummy

coupling

Seals off the control line of the brake system

Remember! Ensure that the truck does not roll, use brake
blocks!

3. Truck tyre inflation device adapter

For tapping off air from the so-called tyre inflation bottle near

the brake.

Remember! The tyre inflation connection must be ensu-
red by a safety valve as a standard (blow-off pressure ap-
proximately 7.5 bar)!

4.

Truck

tyre

valve

Inflation with a normal hand or foot pump as well as other air

supplies for tyre inflation.

5. Truck tyre valve connection, can be clamped

For extracting air for the spare tyre.

6. Adapter for the local air pressure network.
7. Adapter Construction-site compressor

8. Air supply hose, 10 m, green.

9. Air supply hose, 10 m, green, with blocking valve.
10. Case, red
