User’s Manual TYCON TP-SSW5(-NC)
TYCON POWER SYSTEMS 3
1. General Information
The PoE (Power Over Ethernet) Switch support four ports 10/100 TX ports with PoE injector plus
one 10/100TX up-link port. The switch provide Power over Ethernet functions to deliver 35Watts
power budget to powered device(PD), which is in compliance with IEEE802.3af/at standard to
deliver both of Ethernet data and DC power through the traditional UTP or STP cable to the PD.
This manual will help you install and maintain the PoE switch. Installation of the PoE switch is
very easy and you will begin to operate as soon as you are powered up.
2. Hardware Description
*LED Indicator
There are 11 LEDs on the PoE switch to indicate the power and operational status. The following
section describes the functions of each LED indicator.

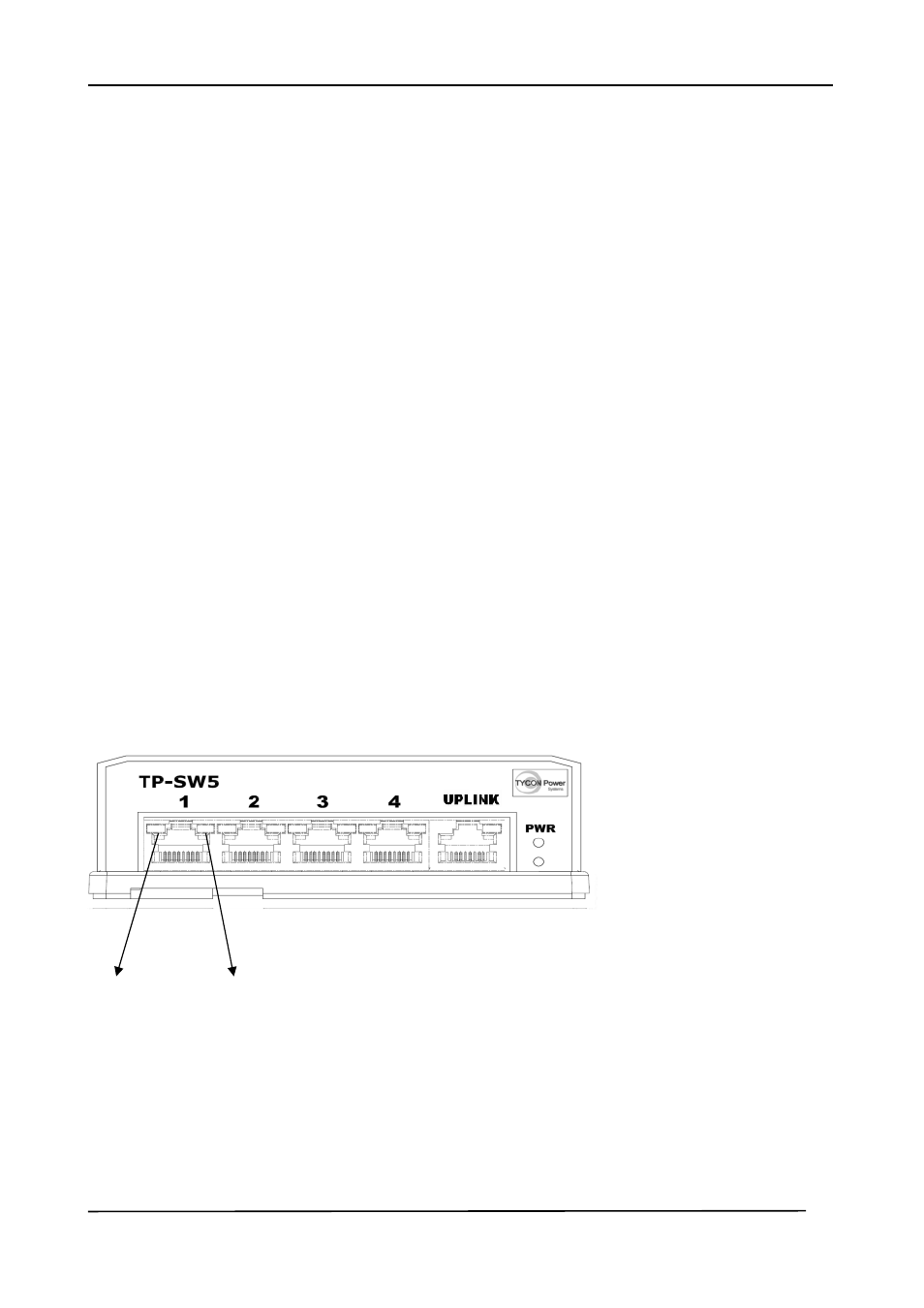

Front panel detail
PoE Link/Act
