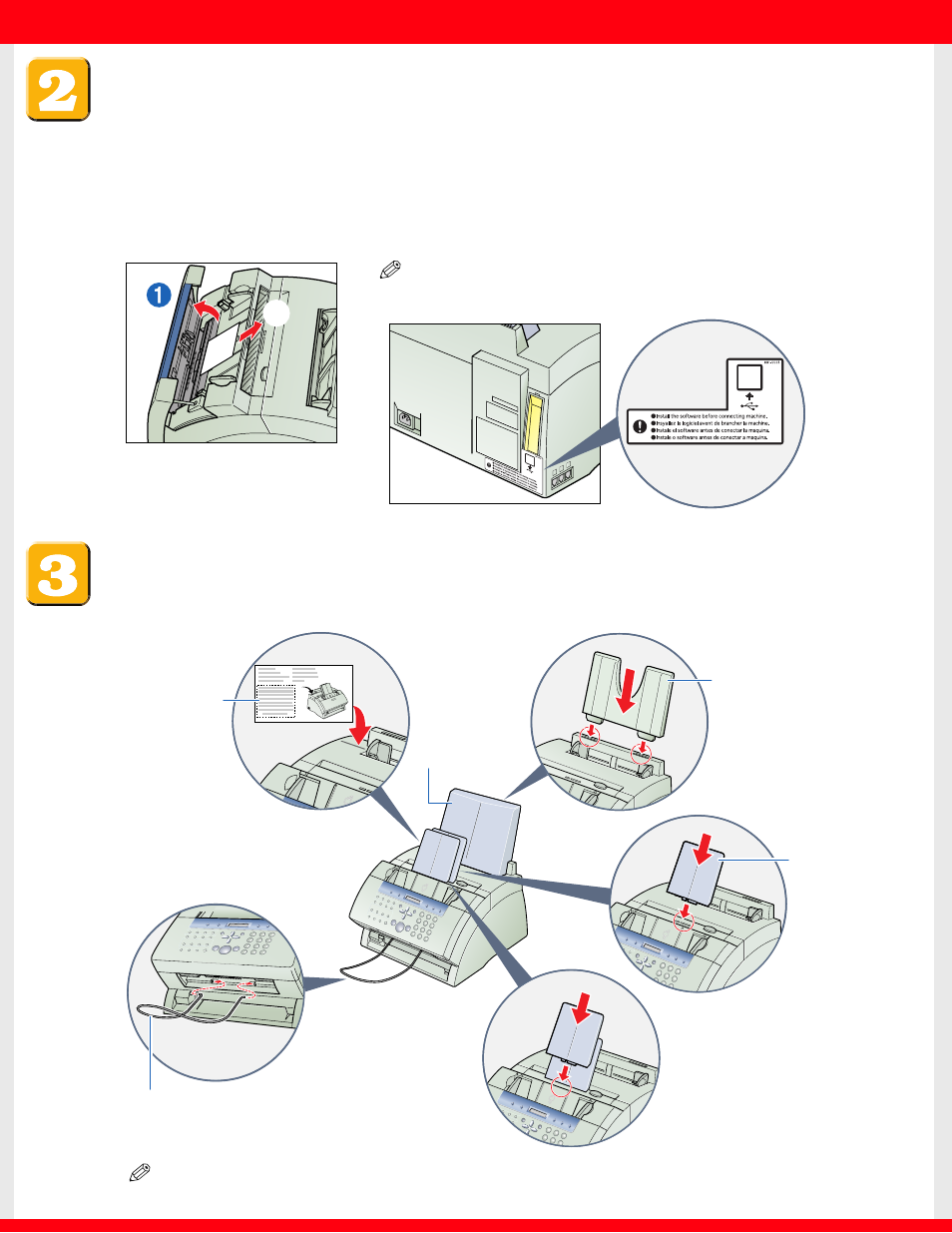

Remove the shipping materials from the machine.

1 Place the machine on a flat surface.

2 Remove all shipping tapes from the exterior of the machine.

3 Gently open the operation panel

➊

(it only opens partially) and remove the protective

sheet

➋

from the ADF.

4 Close the operation panel by pressing at the center until it locks into place.

Assemble the machine.

USB label

NOTE

• Do not remove the USB label on the back of the machine at this stage.

Multi-purpose tray

Support tray

Document
support

Paper loading
warning label

Multi-purpose
tray cover

1 Attach the paper

loading warning
label.

5 Insert the document

support into the slots
on the machine.

2 Insert the multi-purpose tray

into the slots on the machine.

3 Insert one of the

support trays into
the slots above the
delivery slot.

4 Insert the other

support tray into
the slots above the
ADF.

NOTE

• Place the multi-purpose tray cover on the machine after loading paper (see the next page).
