Visualizer Software User Manual
© Copyright 2012 QOMO HiteVision, LLC. All Rights Reserved
25

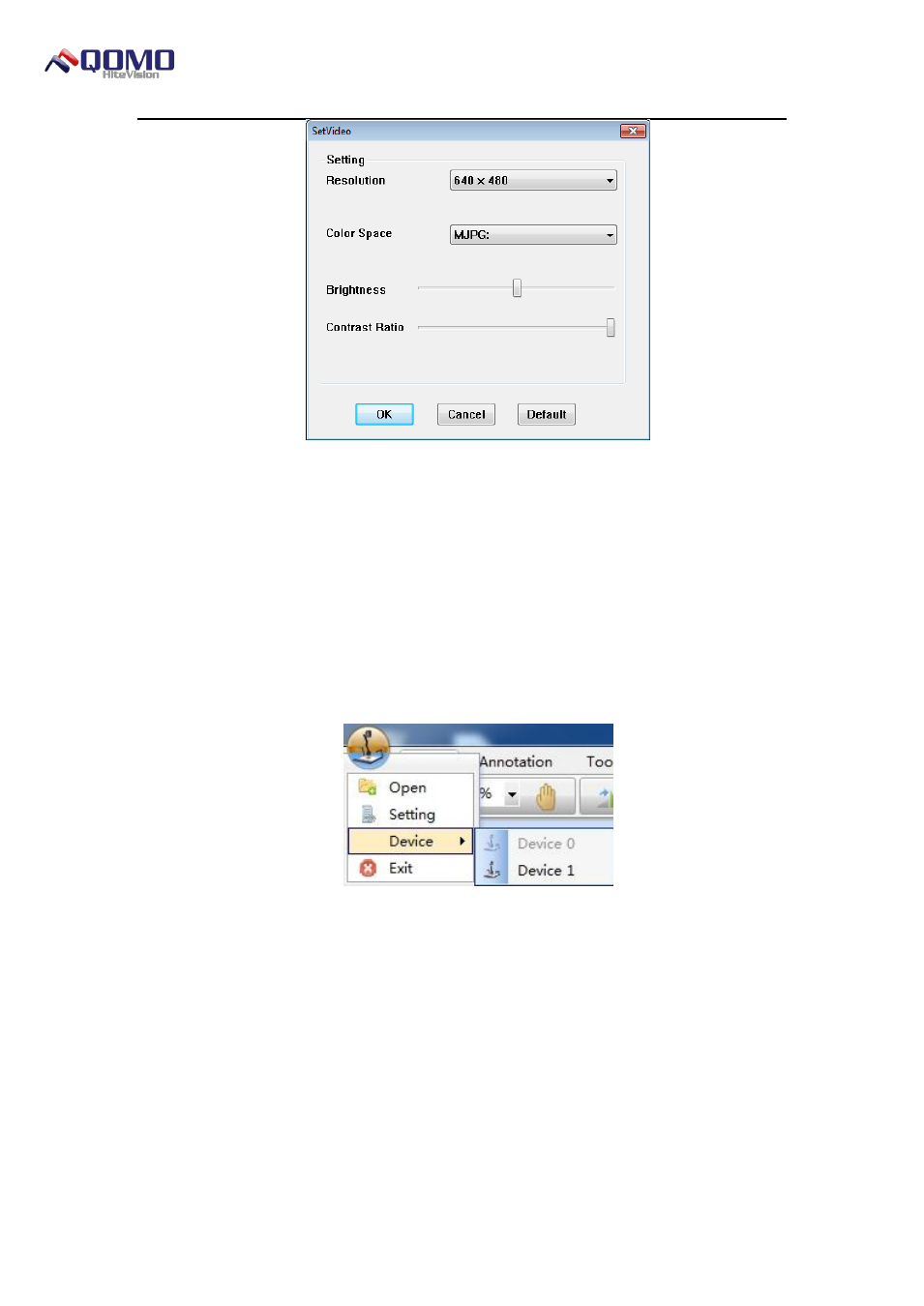

Figure 2- 12 Set Video Dialog Box
Device
Click Device in the Visualizer menu, to show the Device drop-down menu as shown
in Figure 2- 13 Device Drop-down Menu.
Note: It is only displayed when there are more than one connected devices and it
supports up to five devices.The current operating Device 0 is gray and cannot be operated.
The device, such as Device1, is operational and can be switched. Select it to switch to
Device 1.
Figure 2- 13 Device Drop-down Menu
Exit
Click Exit in the Visualizer menu to exit the software directly.
Panel
The software provides users with a picture index panel and the picture search index
panel as shown in Figure 2- 14 Picture Index Panel.
