Cell Voltage Monitor & Logger CellLog 8S

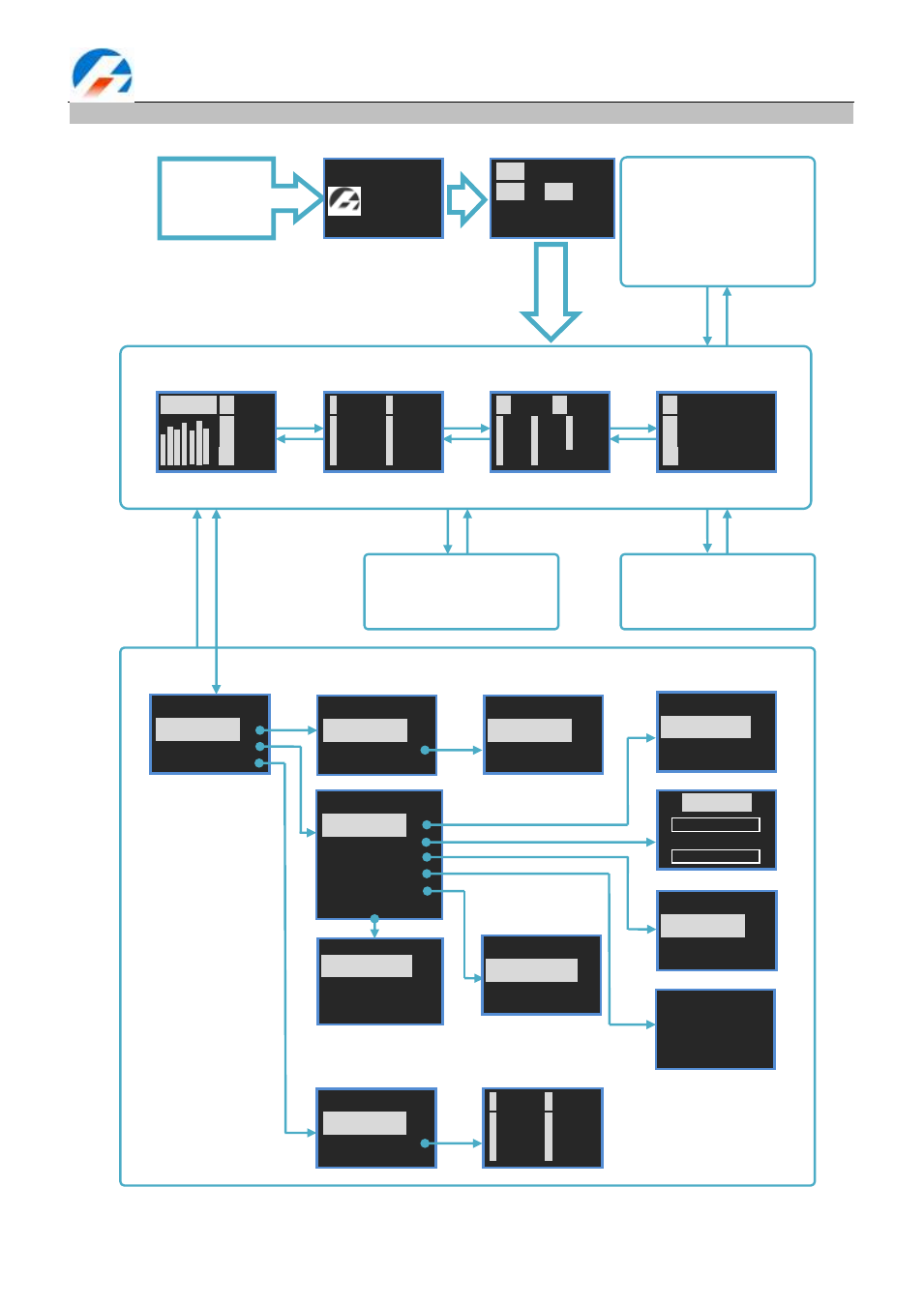

Program flow chart
Voltage Monitor
Tone Setting
LCD Brightness& Contrast
Calibration Select User Calibration
>3 Seconds
Note: When you turn off the CellLog 8S it will remember the current screen and start from that screen when next turned on again.
MAIN MENU
Log Files

System...
Calibration
SYSTEM SETTING
Beep Tone

LCD Screen
ALM Output
Rec. Interval
Start...
Power Management
BEEP TONE
Key Tone

Hint Tone
Alarm Tone
CALIBRATION
⊙Default

○User Setting
Brightness
-
■■■■■■
+
Contrast
-
■■■■■■
+
1 ------ 2 ------
3 ------ 4 ------
5 ------ 6 ------
7 ------ 8 ------
LOG FILE
⊙Logs OFF

○LogFile1
ALM Output Setting
ALARM OUTPUT
⊙NO.

○NC.
Log File Operation
LogFile1
File Select

File Transmit
File Empty
File Delete
.
①
②
>3 Seconds >3 Seconds
Data Log
 Time is shown in the upper
right corner blinkingly
 Transfer data to USB port
 Save data to the appointed
Log File
>3 Seconds
>3 Seconds
③
<▢>+<▼>
>3 Seconds
④
⑤
Main Menu
Select Type
Details in Page 6
Search Results
Details in Page 6
CellLog
POWER ON
TYPE XXXXXXXXXX
LOGS 0 RATE 2.0
[2016Kb/043h:57]
Logs OFF
S/N:XXXXXXXXXX
CellLog 8S
Ver X.X.X
www.hillrc.com
<▢>
<▼>
<▢>
<▼>
<▢>
<▼>
7S 28.79V
HV 28.80V
LV 28.78V
▣
P 0.020V
1 4.013V 2 4.150V
3 4.110V 4 4.152V
5 4.087V 6 4.162V
7 4.120V 8 ------
7S 28.79V
▣
V 149mV
1 4.01 2 4.15 3 4.11
4 4.15 5 4.08 6 4.16
7 4.12 8 ----
1234567- 7S 28.79
6H 4.162
1L 4.013
▣
V 149mV

 
Note：

means if no operation on the button for 1 minutes, the system will return to monitor screen automatically.
Logo Screen
Inf. Screen
START SETTING
Start music

Logo Screen
Inf.Screen
Start Setting
RECORD INTERVAL
(0.5-60Seconds)
2
Record Interval
POWER MANAGEMENT
⊙Not Save

○Backlight OFF
○Sleep Mode
