installation manual
The power supply is included in the power supply above mentioned can be applied to the table.
CAUTION

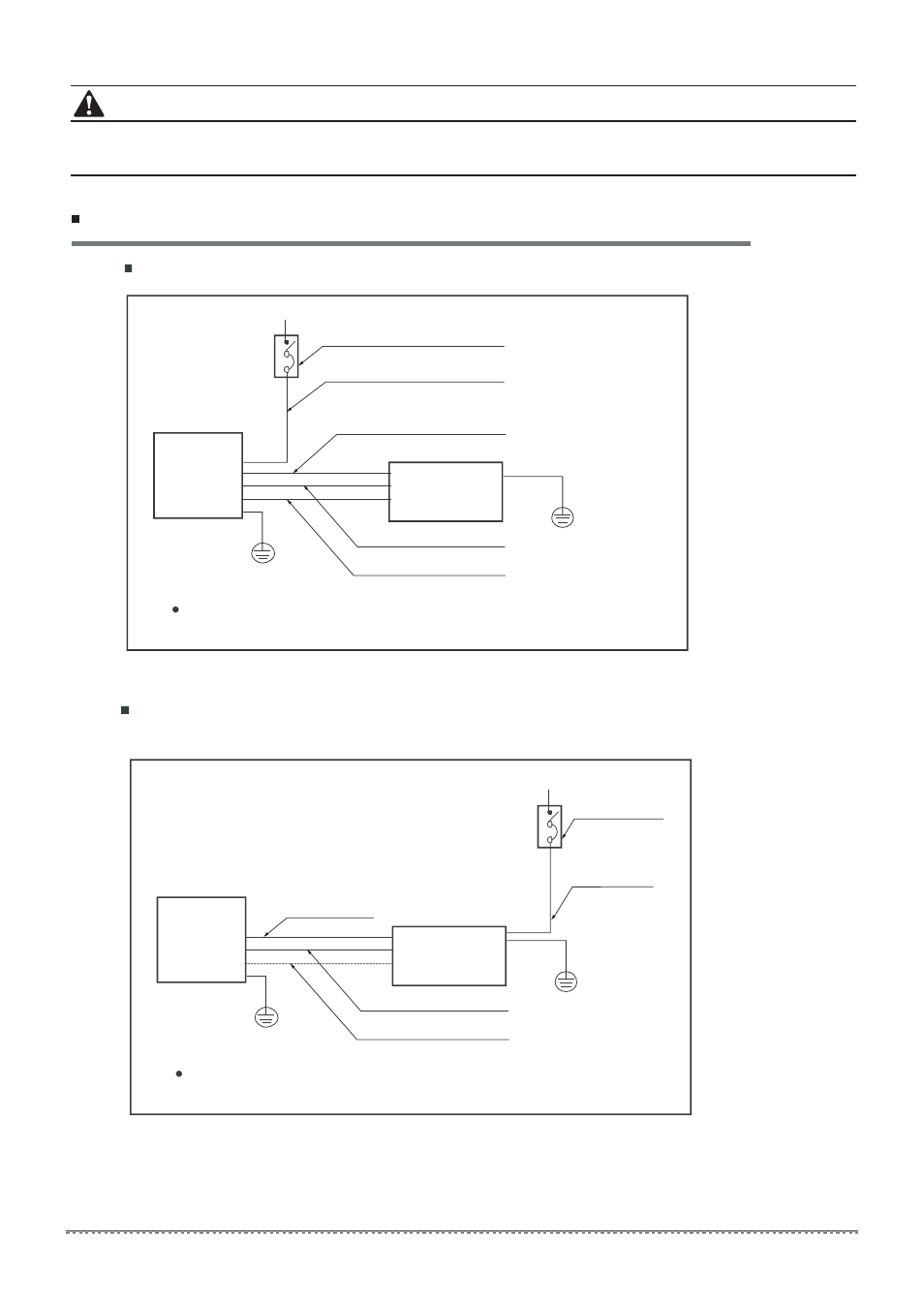

Wiring figure
Fig.10-4
Fig.10-5
Ground wiring
Ground wiring
Power supply
Switch/Fuse
(Available locally)
Power wiring (indoor)
Power linking wiring (Outdoor)
Strong elec-signal link wiring
Weak elec-signal link wiring
Indoor
Unit Outdoor
Unit
Ground the heat pump properly in case to affect its anti-interference function
Ground wiring
Ground wiring
Power supply
Switch/Fuse
(Available locally)
Power wiring (indoor)
Power linking wiring (Outdoor)
Strong elec-signal link wiring
Weak elec-signal link wiring
Indoor
Unit
Outdoor
Unit
Ground the heat pump properly in case to affect its anti-interference function
