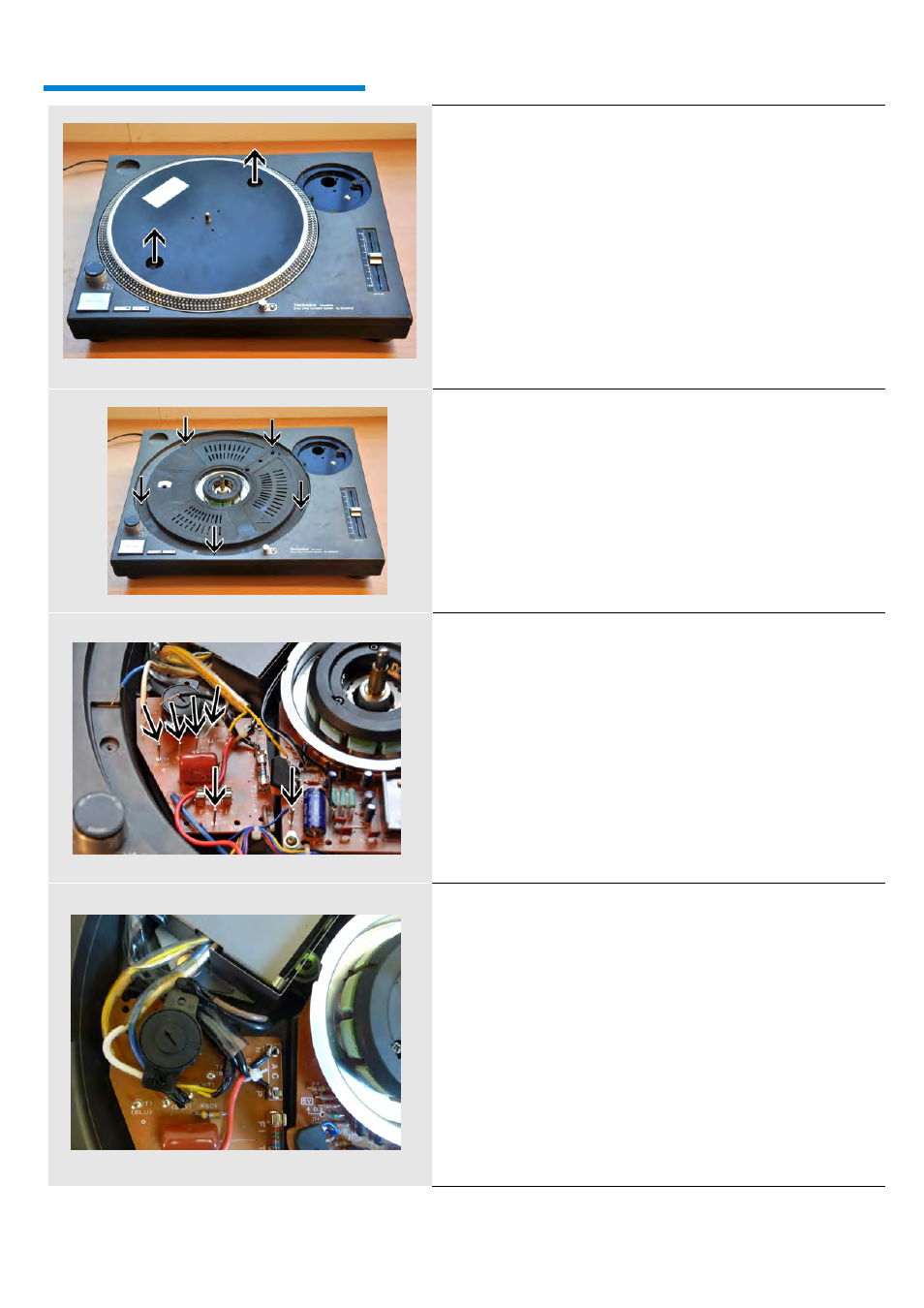

Fitting Instructions
1.
To avoid potentially lethal electric shock,
disconnect the deck from the mains by pulling
out the Technics deck plug from your wall
socket. Then remove the mains plug entirely to
avoid accidentally plugging it in. This is
essential for safety reasons.
Remove platter mat and platter by gently lifting up
using the two holes in the platter for grip.
2.
Unscrew and remove the five cross-head screws
shown with arrows in photo. Then remove the top
cover of the unit to reveal the main motor control
board.
3.
The large transformer towards the top left of
the deck is connected to both circuit boards via
black, brown, white, blue and two yellow wires.
Disconnect them from the points shown by
unraveling the wire.
The transformer can be reconnected by reversing
this operation if required in the future. This must
be carried out by a qualified electrician due to
the mains level voltages.
4.
To safeguard the circuit, cover all bare ends of
wires with insulating tape and stow away from the
transformer.
Alternatively you can remove the transformer
entirely by unscrewing the three brass screws
around the perimeter. This is the best option for
sound quality reasons – as the transformer can
rattle in micro-vibration.
