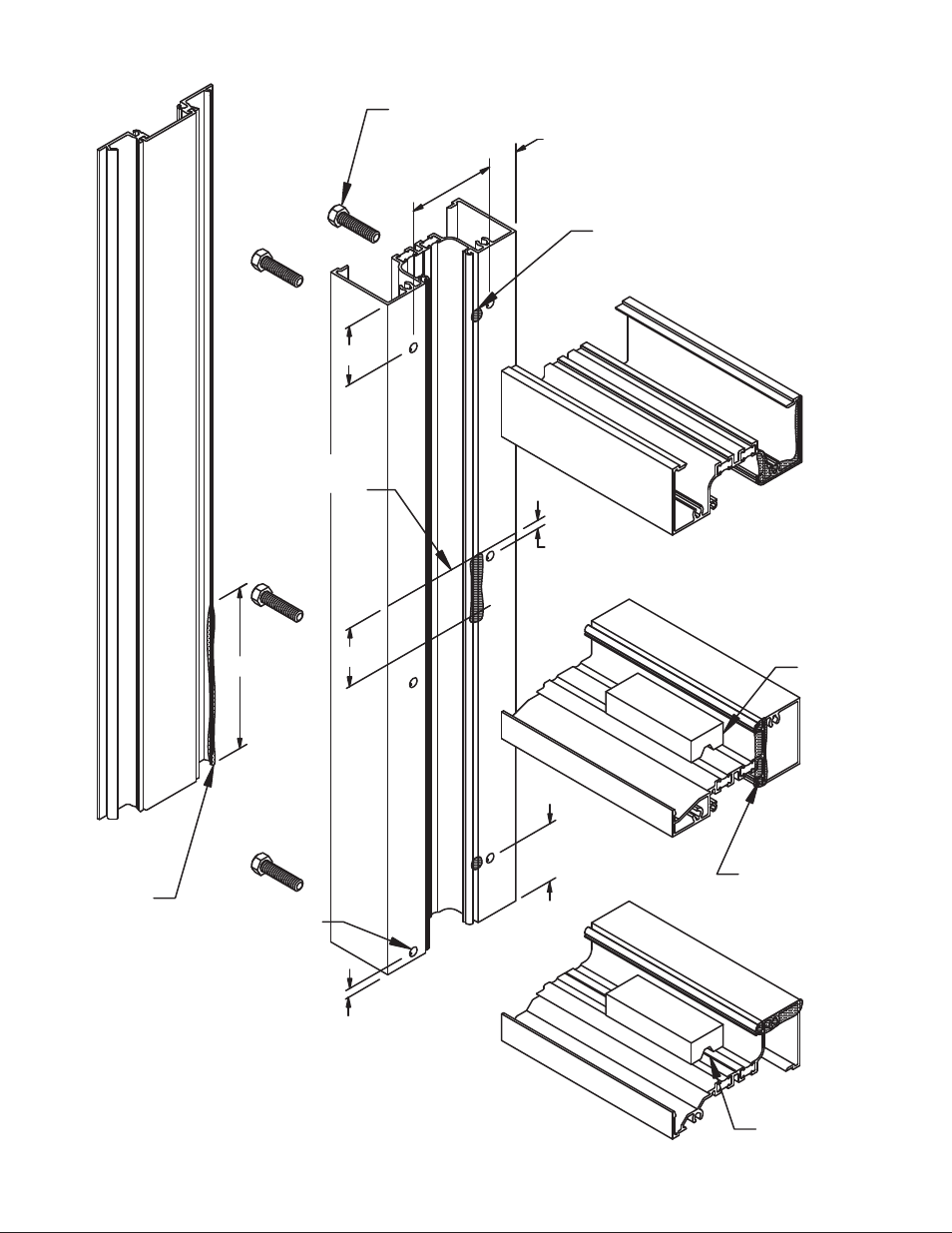

OUTSIED GLAZED SCREW SPLINE FRAME ASSEMBLY
4"
1 3/4"
2-11/16"
TYP
29/32"
TYP
FS-8 TYP
PART#: 10223
APPLY SILICONE
SEALANT TO END
OF HORIZONTALS
AS SHOWN
FG-3509
FG-3506
APPLY SILICONE
SEALANT 4" UP
INTERIOR SNAP
JOINT
APPLY SILICONE SEALANT IN
GLAZING REGLET OF VERTICAL
WHERE IT MARRIES WITH SEALANT
APPLIED TO THE HORIZONTALS
FG-3514
1/4"
REFERENCE PAGE 16 FOR USE OF DJ-8 DRILL FIXTURE.
FG-3220
PART# 1122
FG-3506
1 3/4"
TOP OF
HORIZONTAL
1/4"
"F" (0.257 DIA)
DRILL TYPICAL
1 3/4"
FG-3510
FG-3220
PART# 1122
