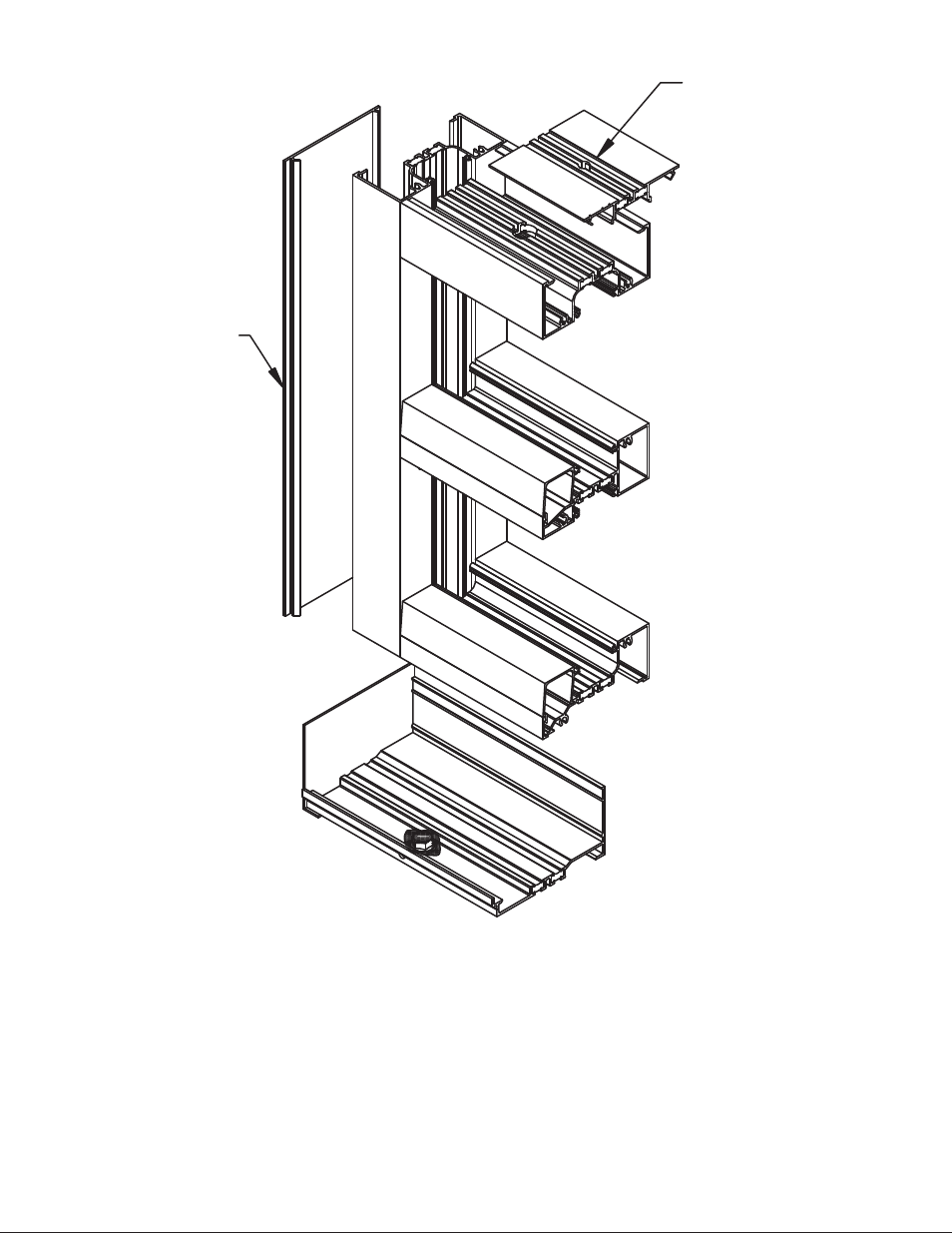

FRAME INSTALLATION
FG3000-FP-58 OR FG3000-FP-59
ANCHOR FG-2188 PVC FILLER
IN BETWEEN
FG-2188 PVC FILLER
MAY BE USED TO IMPROVE
INSTALLATION OF
PERIMETER SEALS.
(OPTIONAL)
NOTES:
1) WHEN USING OPTIONAL FG-3511 SILL RECEPTOR, SILL ANCHORS ARE NOT REQUIRED.
2) MAXIMUM END REACTION AT MULLION WHEN USING FG-3511 SILL RECEPTOR IS 600 LBS.
3) HEAD ANCHORS SHOULD BE LOCATED SO THAT THE ANCHOR IS NOT MORE THAN 4" AWAY FROM
EACH SIDE OF MULLION.
4) ASSEMBLY WITHOUT FLASHING IS NOT RECOMMENDED.
5) ASSEMBLY USING A NON-THERMAL OR SHEET METAL FLASHING WILL RESULT IN LOSS OF
THERMAL CONTINUITY AND IS NOT RECOMMENDED.
