6 


R E L I A N C E C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
5/16"Ø Weep holes
Locate at 1/4 points
GP-103
Gaskets
AW-162
Cut length =
D.L.O. minus 1/4"
Seal ends of pressure
plate to vertical face
WW-216 Face cover
Weep cover at mid-lite.
(See FIGURE 5)

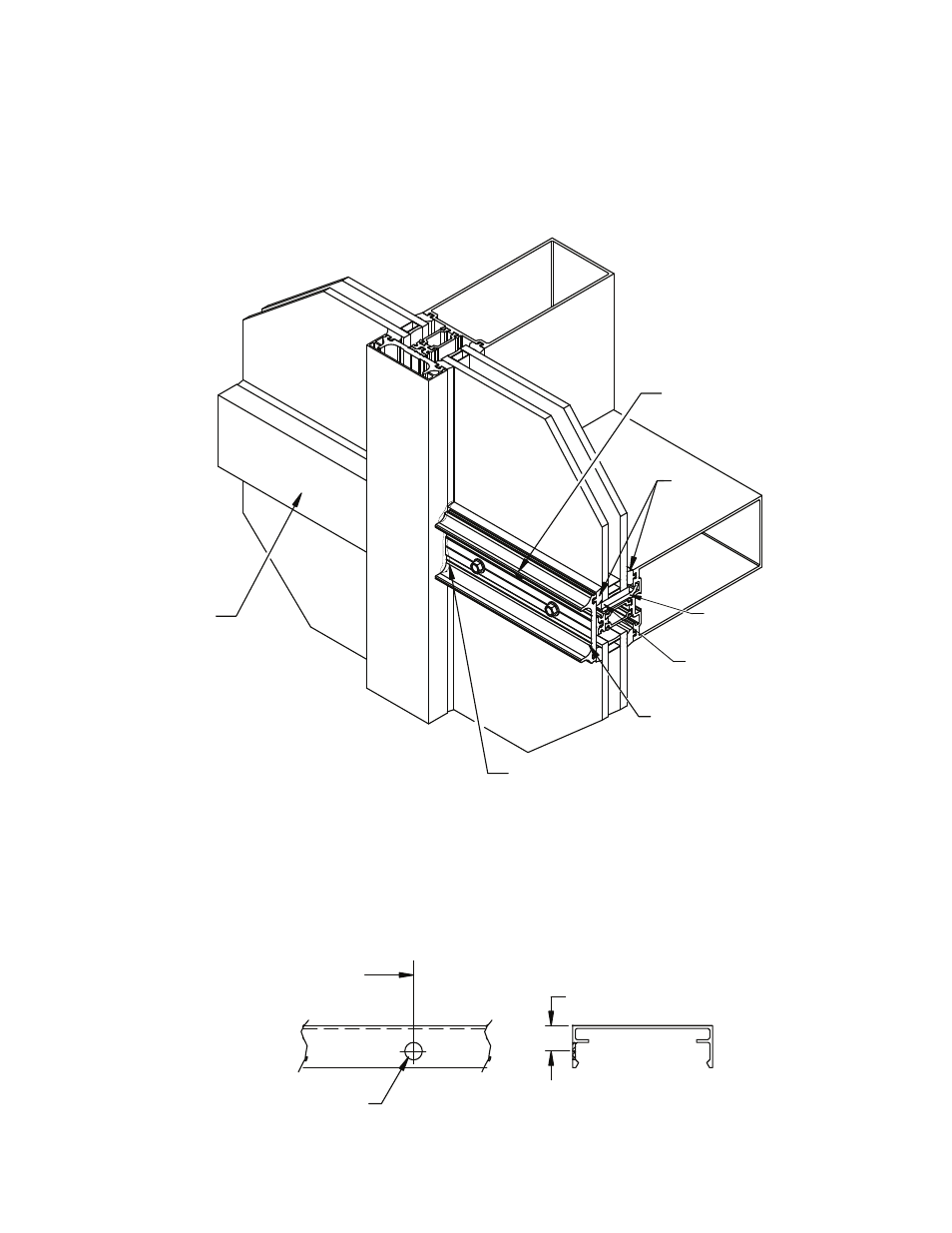

FIGURE 4
Installation
FIGURE 5
Horizontal Face Cover Fabrication
15/32"
GP-116
Setting Block
AW-127
Setting Chair
FRP PRESSURE PLATE
ASSEMBLY
5/16"Ø WEEP HOLE
CENTERLINE OF DLO
™
