Canoe Anchor Kit
Installation
Instruction 125 Gilman Falls Road
Building B
Old Town, ME 04468 USA
800-8-KAYAKS
www.oldtowncanoe.com
Please read kit instructions carefully prior to installation.
Many of our kit installations can be viewed at
www.youtube.com/oldtowncanoeandkayak
Rev.Original
Issue Date: 11/29/2010
Doc. # K-01.1331.2028
Page 3 of 4

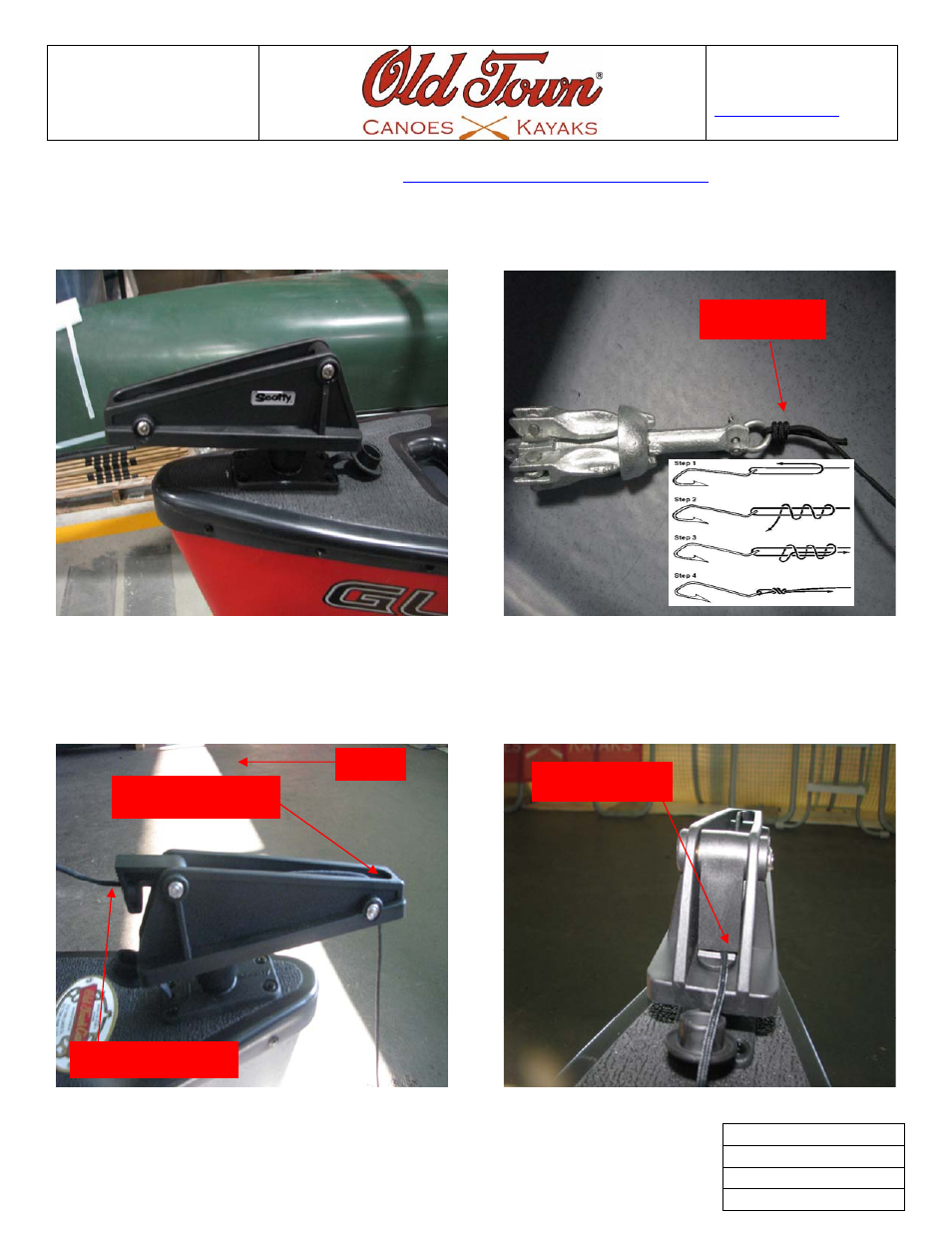

4. Insert the Anchor Lock Flush Mount (A) into its base as shown in Fig# 7. Now using a barrel Knot attach the
anchor rope (E) to the anchor (B) as shown in Fig# 8.
Fig# 7 Fig# 8
5. Feed the end of the anchor rope (E) threw the bottom of the Anchor Lock Flush Mount (A) up and over the
roller toward the stern of the boat then threw the rope lock as shown in Fig#9. To lock the rope ease the rope
forward and the rope lock will go down and lock the rope lock as shown in Fig# 10. Also tie a stopper knot in
the free end of the rope so it can not pull all the way threw the rope lock if it slips free.
Fig# 9 Fig# 10
Barrel Knot
Up and over roller
Threw Rope Lock
Stern
Rope Lock On
