Old Town ACS Seat Replacement Kit User Manual
Acs seat replacement kit

Rev. Orig
Issue Date: 1/14/2010
Doc. # K-07.1982.0000
Johnson Outdoors
125 Gilman Falls Rd Building B
Old Town, Maine 04468
1-800-8-KAYAKS
http://www.neckykayaks.com
ACS Seat
Replacement Kit
Page 1 of 4
* Note - This kit is to replace boats that contain a standard Extrasport seat with Deck
Brackets. This kit will not work for Ratchet style seats*
TOOLS REQUIRED: Phillips Screwdriver, or Screw gun with Phillips Head Bit, Drill with ¼” bit.
Please read and understand all of the instructions before attempting installation

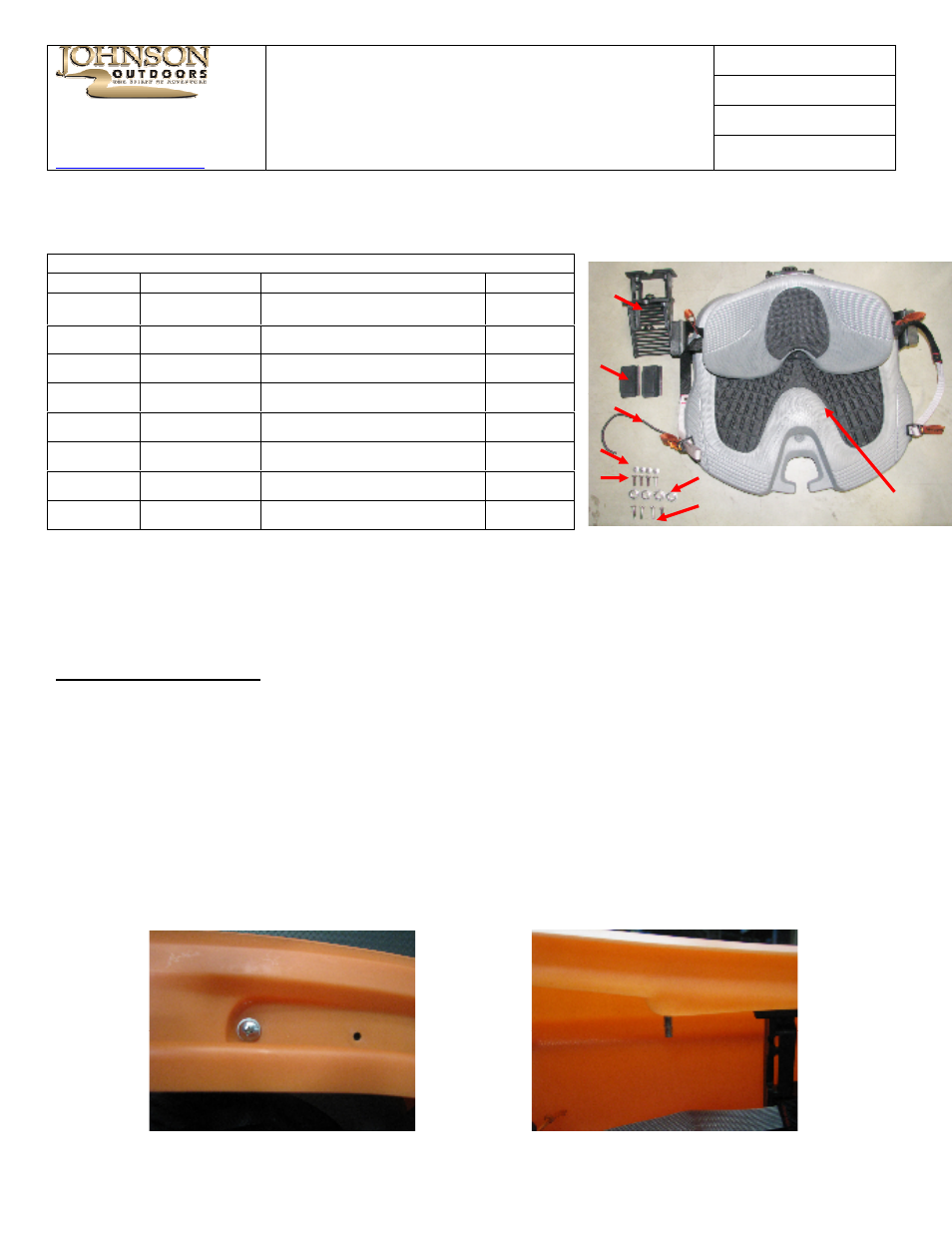

Step 1: Remove Old Seat:
1. Remove the old seat by backing out the 4 bolts on the sides of the cockpit using a screw gun with a
Phillips Head bit or a Phillips Head screw driver. With the 4 Bolts removed take the seat out of the
cockpit.
2. Place Seat (A) in boat. Insert 1”1/4-20 Truss Bolt (E) through a 1/4” Bonded Washer (F) then through
the Bow most seat hole. Repeat on the other side of the Cockpit. See Fig. #1 & Fig. #2
2.A For Old Town Models – Use the 1 ¼” ¼-20 Truss Bolts (D) and the ¼-20 Stamped Washers (C)
.
Fig. #1
Fig. #2
KIT CONTENTS
Ref. Letter
Part Number
Description
Quantity
A
07.3238.0000
ACS Seat Assembly
1
B
07.2000.0556
Seat Stabilizer
2
C
01.1315.1547
¼-20 Stamped Washer
4
D
07.2890.0000
¼-20x1 ¼” Truss Bolt
4
E
01.1315.1603
¼-20x1” Truss Bolt
4
F
07.2118.0000 ¼” Bonded Sealing Washer
4
G
01.1315.2592
Deck Brackets
2
H
1.1331.0845
Seat Bungee
1
A
B
C
D
E
F
G
H
