Canoe Anchor Kit
Installation
Instruction 125 Gilman Falls Road
Building B
Old Town, ME 04468 USA
800-8-KAYAKS
www.oldtowncanoe.com
Please read kit instructions carefully prior to installation.
Many of our kit installations can be viewed at
www.youtube.com/oldtowncanoeandkayak
Rev.Original
Issue Date: 11/29/2010
Doc. # K-01.1331.2028
Page 1 of 4

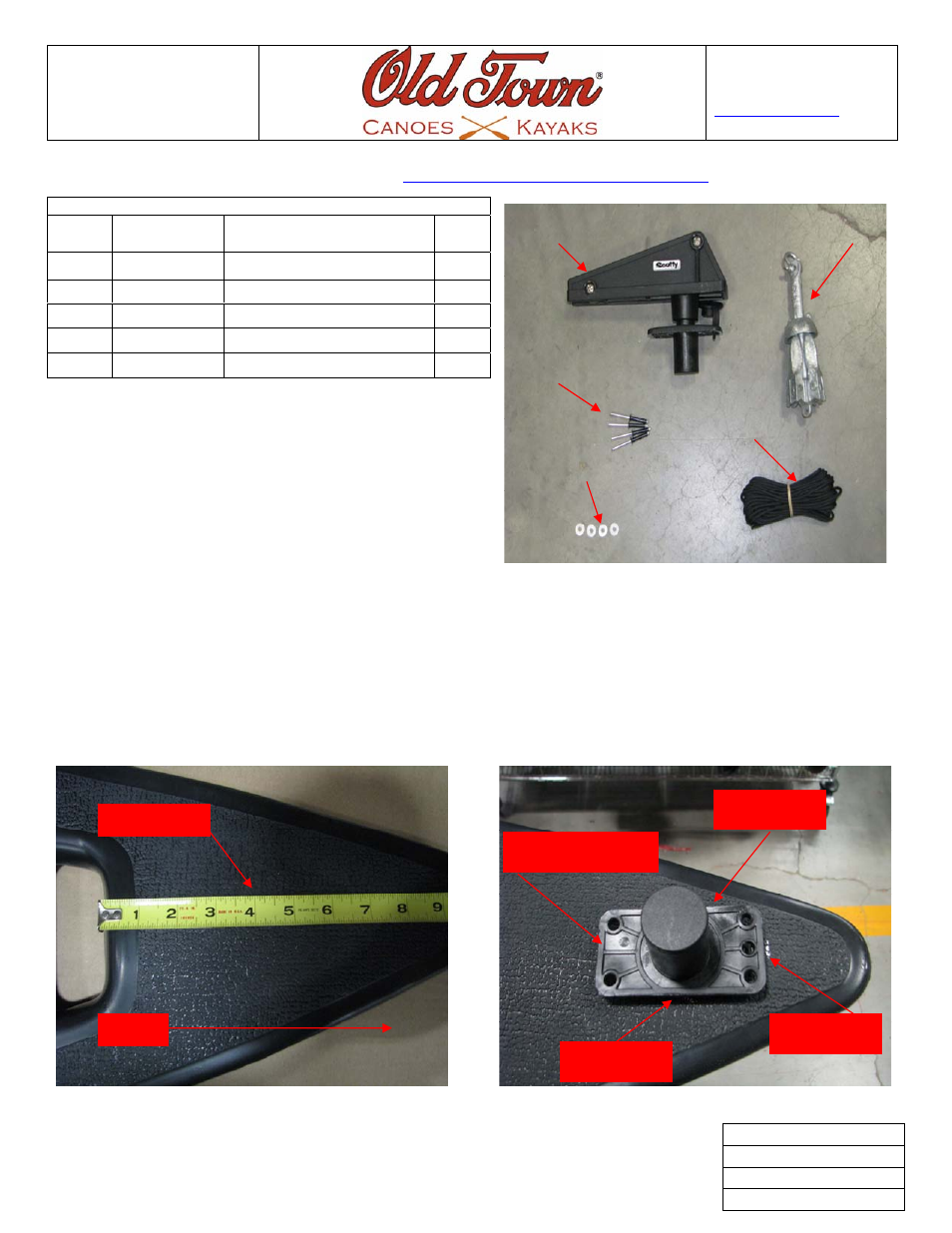

Before getting started we recommend sorting out and separating the parts for easy access during assembly.
Tools Required: Drill, 13/64”Drill Bit, Pop Rivet Tool, 1 3/8” Hole Saw, Marking pencil,
and Tape measure.
1. Locate the base attached to the Anchor Lock Flush Mount (A) use it as a jig to mark the hole for the base on
the bow deck of the boat. Measure four inches toward the bow from the handle opening as shown in Fig# 1,
then on the four inch mark center the Anchor Lock base (A) upside down and mark all four sides as shown in
Fig# 2.
Fig# 1 Fig# 2
KIT CONTENTS
Ref.
Letter
Part Number Description Qty
A 01.1332.2714 Anchor Lock Flush Mount 1EA
B 01.1332.2709 Anchor 1.5 LB Folding 1EA
C 01.1315.1564 Rivets-AA611D BLK 4EA
D 01.1315.1568 Washer-Backup Deck 3/16” 4EA
E 01.1315.0455 Rope-Black Nylon 3MM 30FT
A B
C
D
E
Bow
Mark Here
Four Inch Mark
Mark Here
Mark Here
Mark Here
