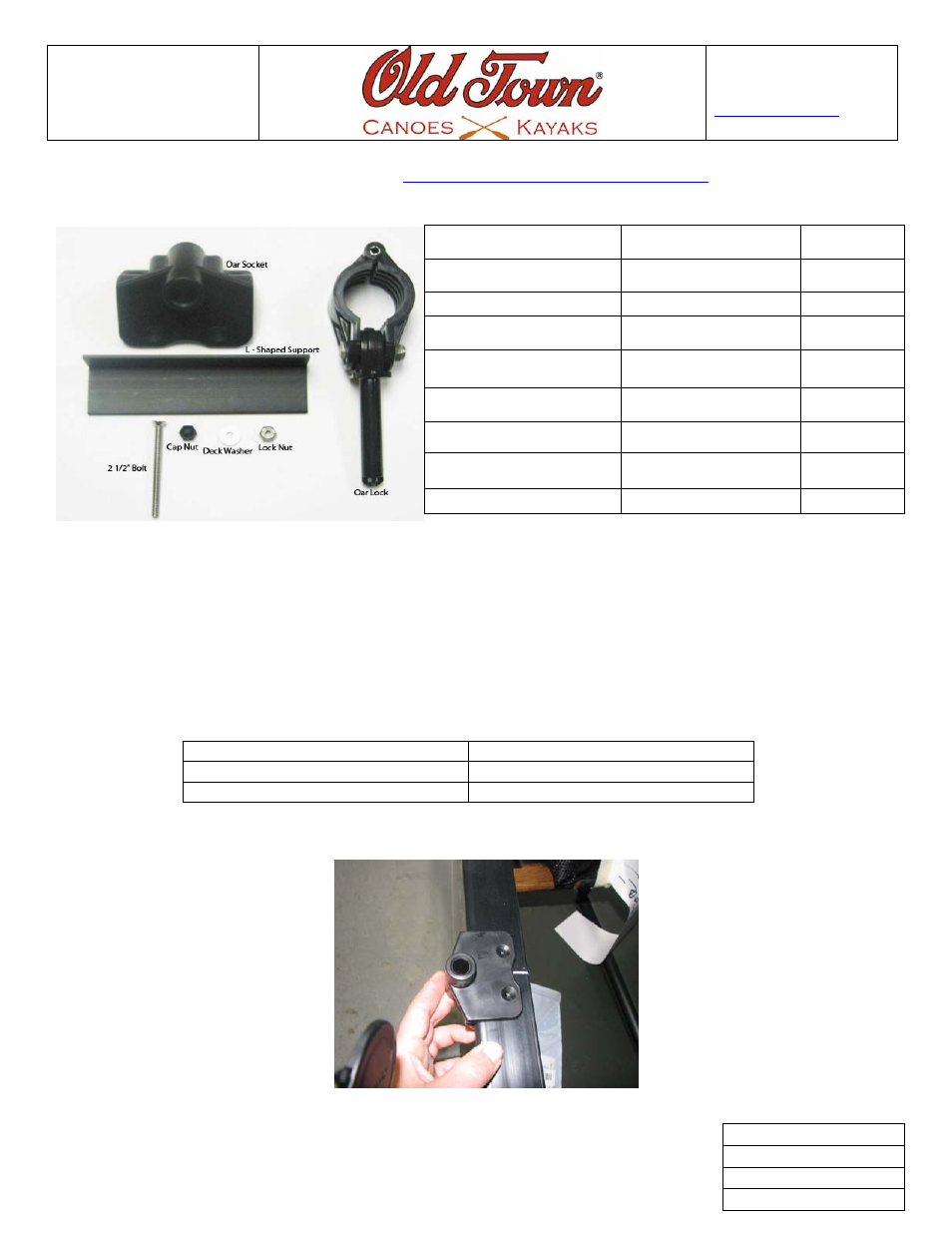

Oar Socket Kit
Installation
Instructions

125 Gilman Falls Road
Building B
Old Town, ME 04468 USA
800-8-KAYAKS

www.oldtowncanoe.com

Please read kit instructions carefully prior to installation.
Many of our kit installations can be viewed at

www.youtube.com/oldtowncanoeandkayak

Rev. E

Issue Date: 12 / 9 / 2010

Doc. # K-01.1331.2349

Page 1 of 3

1

Tools Required: Drill, 3/8 Wrench, Phillips Screwdriver, Marking Pencil, 3/16”Drill Bit, Tape Measure,
and C- Clamp

If your boat has the Oarlock holes pre-drilled, skip to Step #2 – Attach Pieces to Canoe


Step 1: Drill Holes
Refer to Chart # 1 for the standard measurement of where the Oar Socket is placed on the gunwales. Chart # 1 is for
reference only. You can use the measurements in the chart that match the model of boat you have or you can position the
Oar Socket at any measurement to suite your rowing style and comfort level. Make a mark on the gunwale with a
marking pencil. Repeat on the other side of the boat ensuring the measurements are equal on both sides.

Model

From Stern

15’ Square Stern

72”

14’ Osprey

68”

15’ Osprey

76”

Chart 1

Place the Oar Socket on the gunwale so the hole for the Oarlock is outboard the canoe, and the socket is centered on your
mark. See Fig. #1.

Fig. #1

Part #

Description

Quantity

.1315.0815 Oar

Socket

2

.1315.1278

5” L Shaped Support

2

.1315.3762 Oar

Lock

2

.1315.1683

1 ¾” Bolts

4

.1315.1575

2 ½” Bolt

4

.1315.1585

Nylon Lock Nut

8

.1315.1568 Backup

Washer

8

.1315.1525 Cap

Nuts

4
