Old Town Drain Plug Kit User Manual
Old town drain plug kit

Rev. Orig
Issue Date: 12/10/2009
Doc. # K-01.1331.2025
Old Town Canoe Company
35 Middle Street
Old Town, Maine 04468
207-827-5513
http://www.oldtowncanoe.com
Old Town Drain Plug
Kit
Page 1 of 2
TOOLS REQUIRED: Drill, 1” Hole Saw, 13/64” Drill Bit, Pliers, Tape Measure, Marking Pencil
Please read and understand all of the instructions before attempting installation

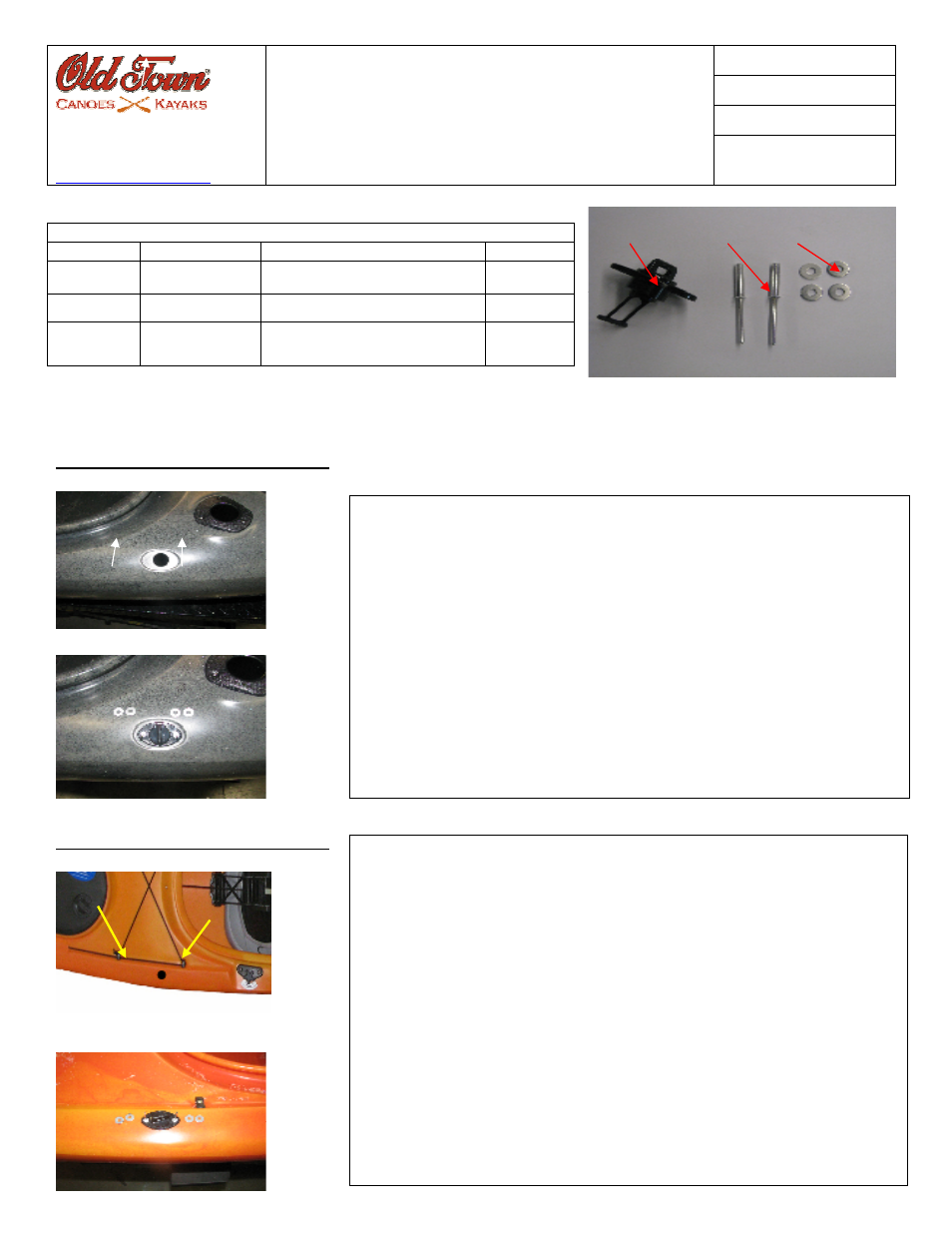

For Installation on Vapor Models:
Fig.#1 1” Hole
Fig.#2 Screw Location
For Installation on Dirigo Models:
Fig.#3 1” Hole Location
Fig.#4 Rivet in place
KIT CONTENTS
Ref. Letter
Part Number
Description
Quantity
A
01.1315.0384
OT Drain Plug
1
B
01.1315.1544
Rivets
2
C
01.1315.1568
3/16” Backup Deck
Washers
4
•
Locate the indented oval shape on the left side of the boat just behind
the cockpit rim. Using a 1” hole saw drill a hole in the center of the
oval. Fig. #1
•
Insert the Old Town Drain Plug (A)
•
Using the holes on each side of the drain plug as a guide, drill these
two holes with a 13/64” bit.
•
Insert a Rivet (B) into each hole. Fig. #2
•
Add TWO washers (C) to the underside of each rivet and with a rivet
gun, pop the rivets.
* Note – If the rivet does not break flush after using the rivet gun grab the
exposed rivet post with a pair of pliers and wiggle the post back and forth
until it breaks off. There should be no part of the post extruding past the head
of the rivet.
•
Make a mark with your pencil 3” toward the Stern from the Deck
Fitting just behind the cockpit on the right hand side of the boat.
Make your mark on the flat spot just down from the ridge that runs to
the Stern end.
•
Drill your mark with a 1” hole saw. Fig.#3
•
Insert the Old Town Drain Plug (A)
•
Using the holes on each side of the drain plug as a guide, drill these
two holes with a 13/64” bit.
•
Insert a Rivet (B) into each hole. Fig. #4
•
Add TWO washers (C) to the underside of each rivet and with a rivet
gun, pop the rivets.
* Note – If the rivet does not break flush after using the rivet gun grab the
exposed rivet post with a pair of pliers and wiggle the post back and forth
until it breaks off. There should be no part of the post
extruding past the
head of the rivet.
A
B
C
Deck Fitting
Ridge
