Saranac Seat
Back Kit
Instruction 125 Gilman Falls Road
Building B
Old Town, ME 04468 USA
800-8-KAYAKS
www.oldtowncanoe.com
Please read kit instructions carefully prior to installation.
Many of our kit installations can be viewed at
www.youtube.com/oldtowncanoeandkayak
Rev. Original
Issue Date: 11/29/2010
Doc. # K-01.1331.1225
Page 2 of 5

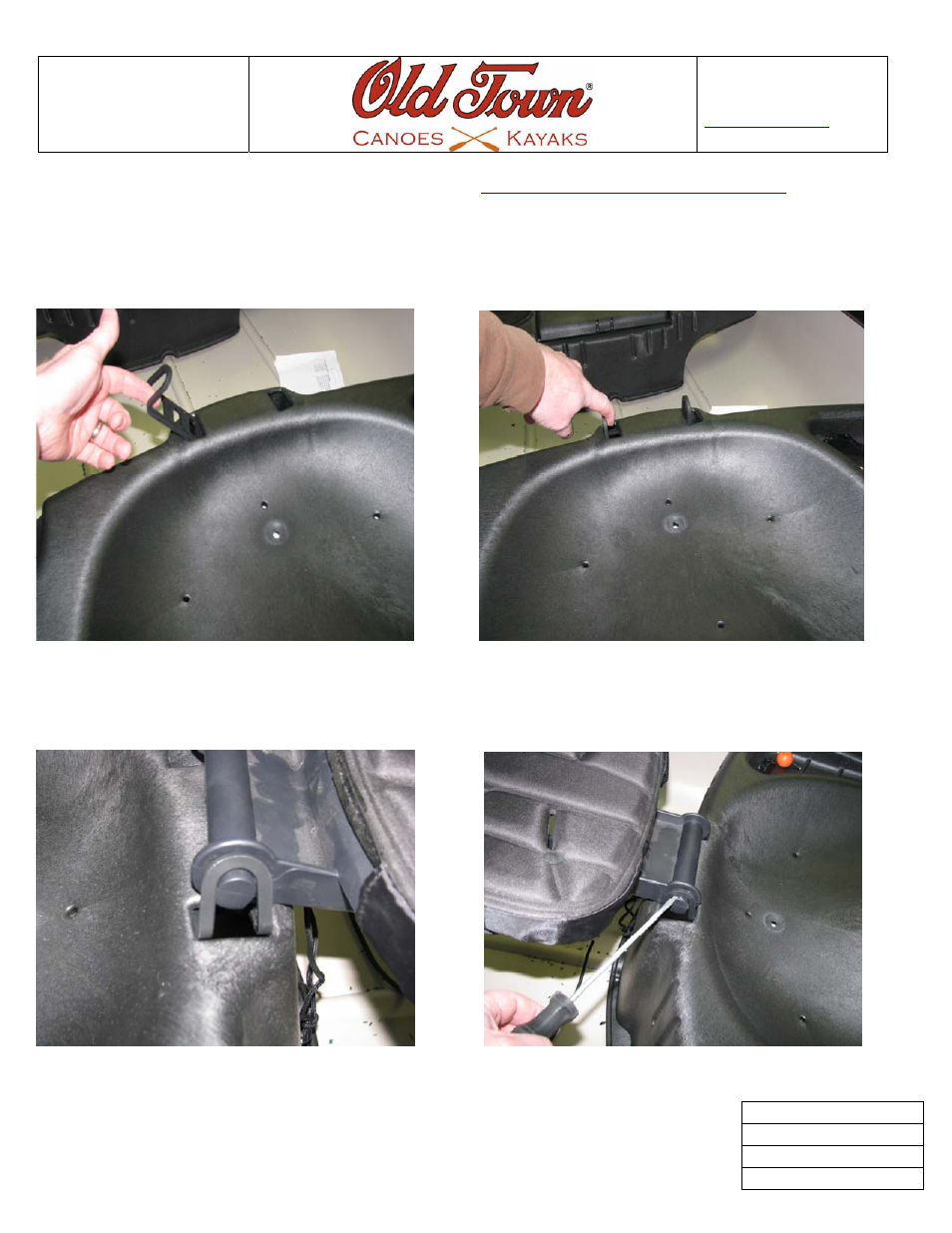

1.
Locate the Saranac Seat Bracket (B); insert it in one of the two seat bracket holes on the stern side of the seat as
shown in Fig #1. Now push the Seat bracket (B) through to the second hole and pull it up through as shown in
Fig# 2.
Fig# 1 Fig# 2
2. Locate the Seat back (A) and in the full back position insert one side of the Seat back (A) into the seat bracket
(B) as shown in Fig # 3. Now using your flat head screw driver for leverage pop in the other side of the seat
back as shown in Fig# 4.
Fig # 3 Fig# 4
