Old Town Vapor 12 Hatch Cover Kit - Manual (Page 2)

Vapor 12 Hatch
Cover Kit
125 Gilman Falls Road
Building B
Old Town, ME 04468 USA
800-8-KAYAKS
www.oldtowncanoe.com
Please read kit instructions carefully prior to installation.
Many of our kit installations can be viewed at
www.youtube.com/oldtowncanoeandkayak
Rev.A
Issue Date: 12 / 9 / 2010
Doc. # K-01.1331.0601
Page 2 of 4

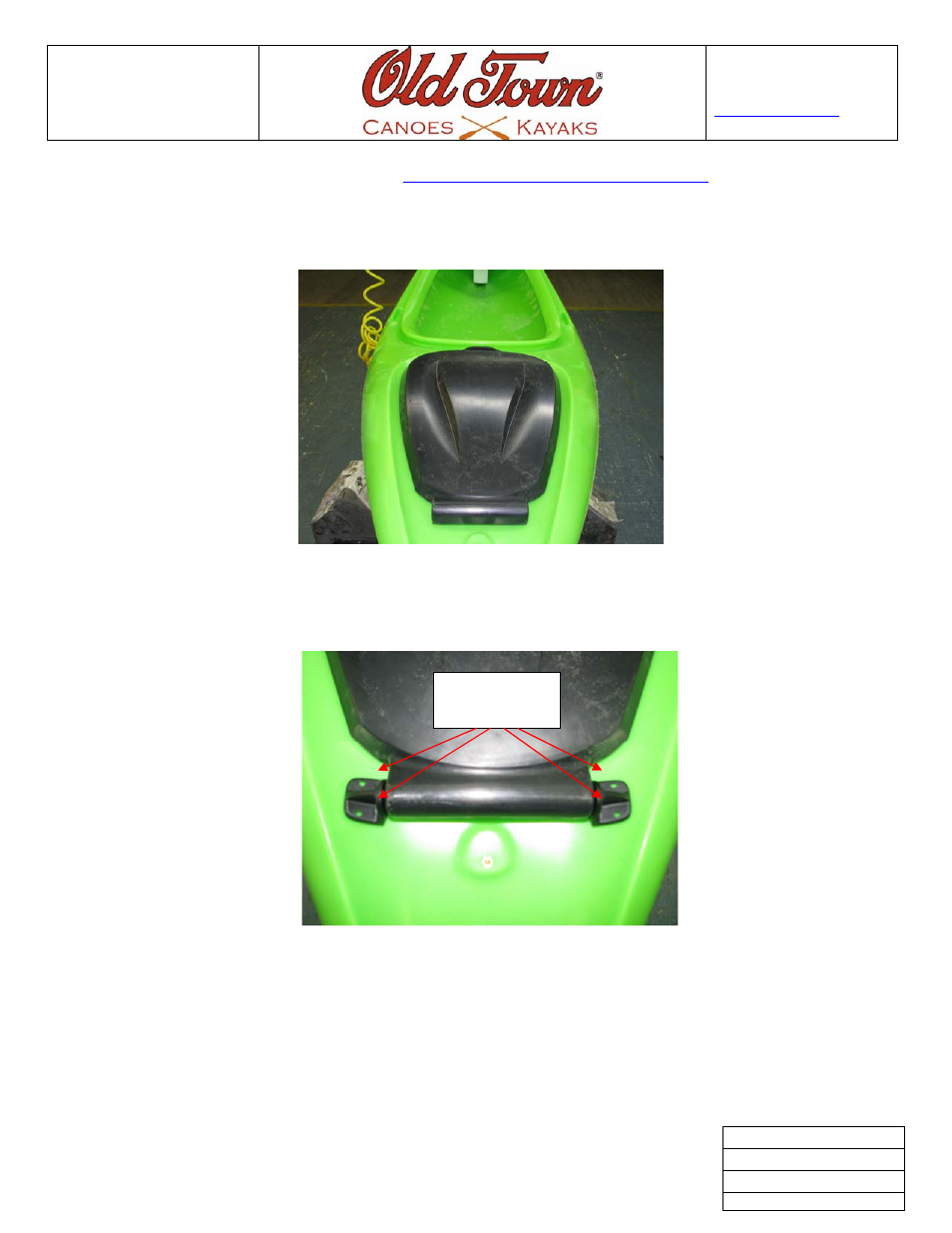

3. Place the Hatch Cover over the hatch and fasten the Hatch Rope over the lip in the cover. Make sure the
hatch is centered and straight. See Fig.#3
Fig. #3 Fit Cover
4. With the cover centered over the hatch, insert a hinge into each side of the cover, on the stern end. Us
the holes in the hinge as a guide and drill out the holes with a 3/16” bit. See Fig.#4
Fig.#4 Drill Hinge Holes
5. Insert Cherry Rivets into each hole. With your Rivet Gun, pop each rivet. See Fig. #5. If the rivet does
not break flush with the top of the rivet head, remove the exposed rivet post with a pair of pliers by
rocking the exposed piece back and forth and it will break flush. If there is too little of the exposed rivet
post to grab with the pliers, use you file and file down the exposed rivet post until flush with the rivet
head.
Drill with
3/16” Bit
