Kayak Folding Anchor Kit

125 Gilman Falls Road
Building B
Old Town, ME 04468 USA
800-8-KAYAKS

Please read kit instructions carefully prior to installation.

Rev. C

Issue Date: 12/08/2010

Doc. # K- 07.1331.2709

Page 5 of 6

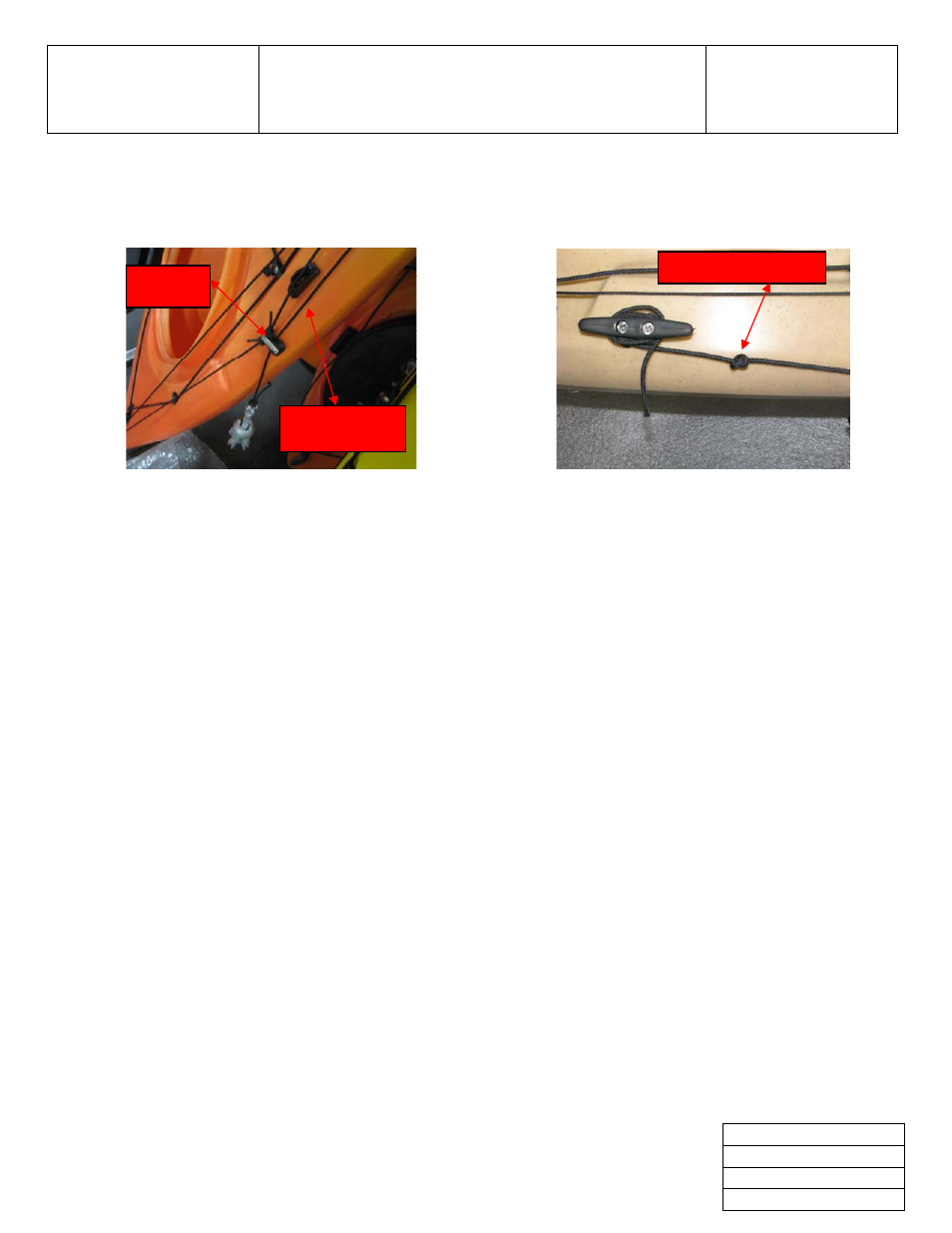

13. Feed the free end of the 30’ anchor rope (I) through the sheave as shown in Fig# 17, then tie a stopper knot large enough

to keep the line from completely pulling through the sheave if the anchor is dropped, then wrap the free end around the
tie down cleat as shown in Fig# 18.

Fig# 17

Fig # 18

Stopper Knot

Sheave

Anchor Rope
