gearBox

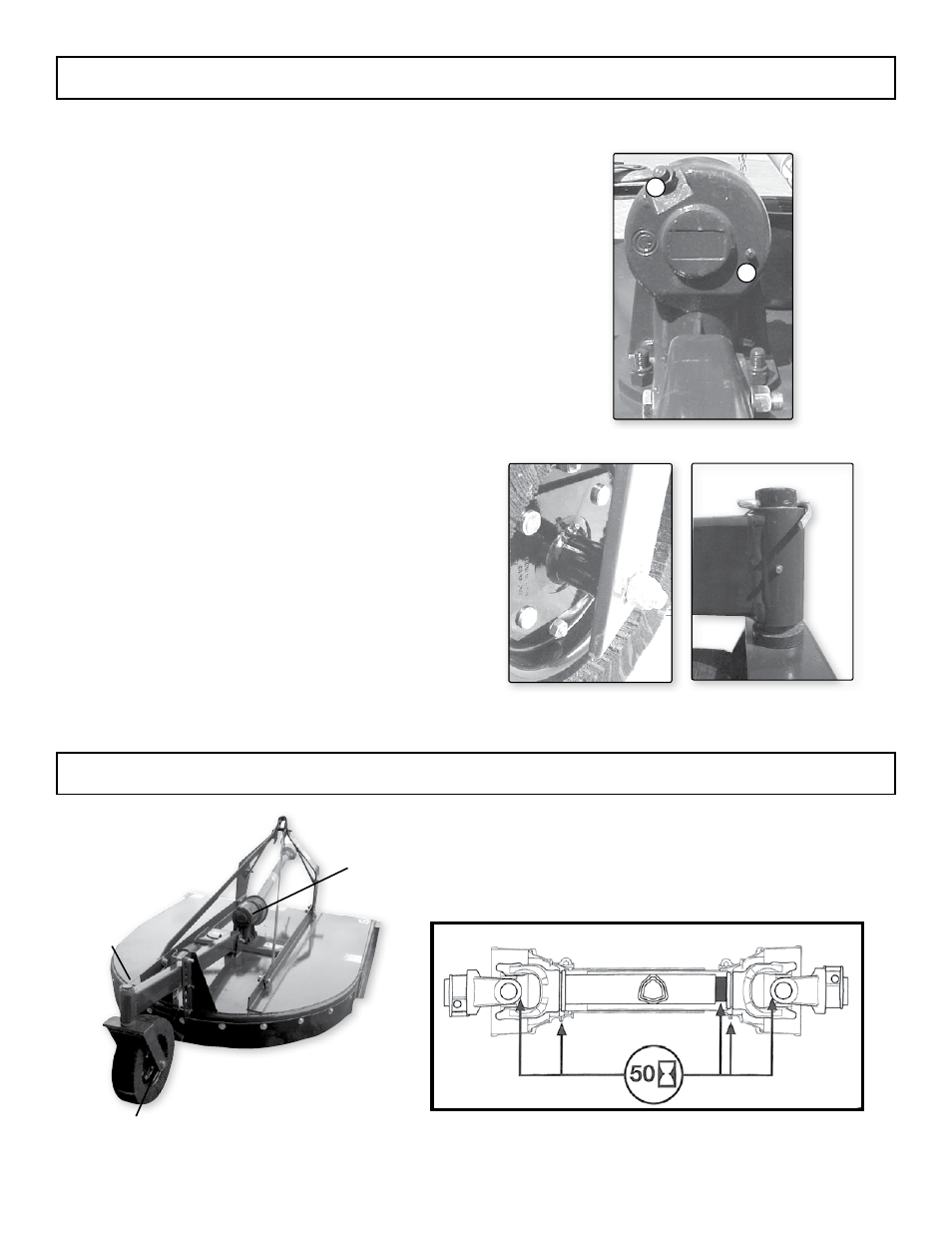

the oil level should be checked and maintained at
a “full” level. to fill, remove the oil fill plug (1), the
overflow plug (2), add oil until oil overflows.
Figure 1.
Note: Make sure mower is level when checking oil in the
gearbox.
Note: Failure to remove 1/4” overflow plug may cause
overfilling. Overfilling of gearbox will cause pressure to
build up and cause oil seals to leak.
tailwHeel:
Grease fitting on hub of wheel. Figure 2. Grease
after every 4 hours. also, a Grease fitting is
provided on the tailwheel boom at caster pivot
point. Figure 3. Grease after every 4 hours use to
provide maximum trouble free service.
figure 1
figure 2 figure 3
gearBox Maintenance
cutter luBrication PointS
driveline lubrication
tailwheel boom
bushing every
8 hrs.
tailwheel hub
every 8 hrs.
check fluid in
gearbox daily.
1
2
Superrr Highway & 7' Predatorrr - 69
