IIT TE EM M Q QT TY Y P PA AR RT T N N0 0.. D DE ES SC CR RIIP PT TIIO ON N
1 1 300507 DRAIN PUMP, 230 V
2 1 111676 BRACKET,PUMP MTG,OEB 20.20
3 4 111633 SCREW, HEX HD, M3 x 16, SST, FULLY THREADED
4 4 C8017008 NUT, LOCKING, SERRATED
5 5 C8017011 NUT, FLANGE, HEX
6 4 C8005040 WASHER, FLAT, 6.4 A2, DIN 125
7 1 111675 BRACKET, Z, GEN, ELEC, 20.20
8 1 102513 WASHER FLAT 0.312 I.D. X 0.750 O.D. X .080 THK, S/S
CLEVELAND RANGE, LLC
1333 East 179th St., Cleveland, Ohio 44110-2574
THIS DESIGN DESCRIBES A PROPRIETARY ITEM AND IS THE PROPERTY OF CLEVELAND RANGE.
THIS DRAWING IS NOT TO BE COPIED OR USED WITHOUT THE APPROVAL OF CLEVELAND RANGE.
TOLERANCES
(UNLESS OTHERWISE
NOTED)
DO NOT SCALE
PRINTED DRAWING
DRAWN BY DATE
TITLE
REV SHEET OF DRAWING NO. SIZE ANGULAR
`
`
DECIMAL
0.030
1∞

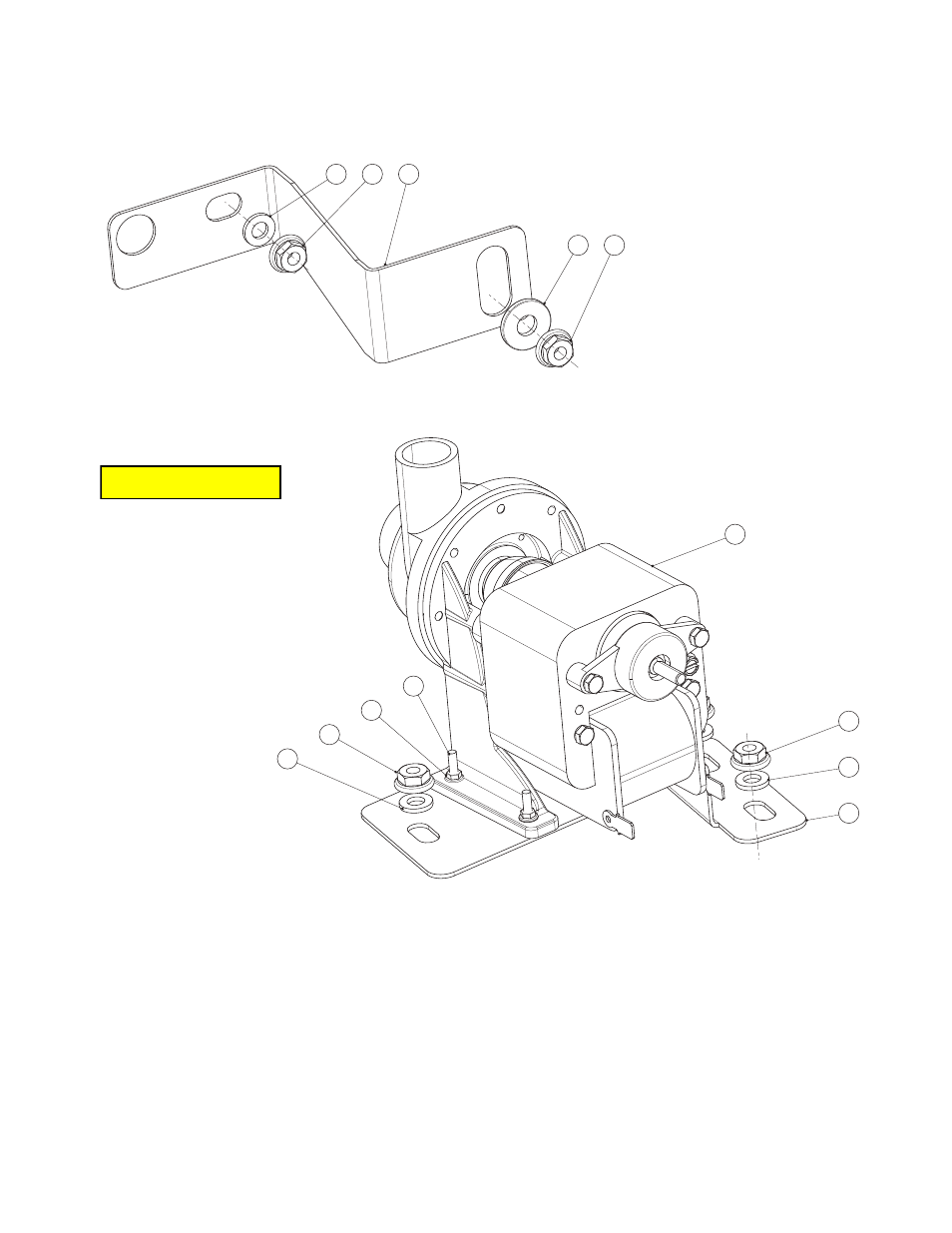

PUMP ASSEMBLY, OEB 20.20
DSchwerzler 8/26/2005
C A C23142471
1 1
11 300507 DRAIN PUMP, 230 V
21 111676 BRACKET,PUMP MTG,OEB20.20
3 4 111633 SCREW, HEX HD, M3 x 16, SST, FULLY THREADED
44 C8017008 NUT, LOCKING, SERRATED, M3 A2 P3
55 C8017011 NUT, FLANGE, HEX M6 A4 P3
6 4 C8005040 WASHER, FLAT, 6.4 A2, DIN 125
7 1 111675 BRACKET, Z, GEN, ELEC, 20.20
8 1 102513 WASHER FLAT 0.312 I.D. X 0.750 O.D. X .080 THK, S/S
ITEM QTY PART N0. DESCRIPTION
6 5 7
8 5
5
1
6
2
3
4
5
6
C23142471 A
0706
PUMP, STEAM GENERATOR
OEB 20.20 MODELS
35
Drain Elbow C6015101
