SC
CR
RIIP
PT
TIIO
ON
N
1
1
C2314219
WELDMENT, STEAM GEN, ELEC, 20.20
2
2
C6015022
FLAT GASKET 60 x 48.5 x 2 FOR STEAM GENERATOR
3
1
C6015207
HEXAGON NUT G 1 1/2" FOR STEAM GENERATOR
4
1
C2314244
SUSPENSION, STEAM GEN, 20.10/20.20
5
3
C6015023
FLAT GASKET FOR IMMERSION HEATER
6
3
C5017014
ASSEMBLY, IMMERSION HEATER, 13.2 kW, 230 V
7
1
C5019003
ASSEMBLY, DOUBLE LEVEL PROBE
8
1
C6015040
FLAT GASKET FOR DOUBLE-LEVEL PROBE
9
1
C7013157
INSULATION, GEN, ELEC, OUTER, 20.20
10
10
101953
CLIP, INSULATION RETAINER, 1-1/2, .105 HOLE, GALV.
11
17
C8017011
NUT, FLANGE, HEX
CLEVELAND RANGE, LLC
1333 East 179th St., Cleveland, Ohio 44110-2574
THIS DESIGN DESCRIBES A PROPRIETARY ITEM AND IS THE PROPERTY OF CLEVELAND RANGE.
THIS DRAWING IS NOT TO BE COPIED OR USED WITHOUT THE APPROVAL OF CLEVELAND RANGE.
TOLERANCES
(UNLESS OTHERWISE
NOTED)
DO NOT SCALE
PRINTED DRAWING
DRAWN BY
DATE
TITLE
REV
SHEET OF
DRAWING NO.
SIZE
ANGULAR
`
`
DECIMAL
0.030
1∞
ASSEMBLY, GEN, ELECTRIC, 20.20 P3
CCE
6/29/2005
C
B
C2314210SERV
1
1
11
C2314219
WELDMENT, STEAM GEN, ELEC, 20.20, P3
22
C6015022
FLAT GASKET 60 x 48.5 x 2 FOR STEAM GENERATOR P3
3
1
C6015207
HEXAGON NUT G 1 1/2" FOR STEAM GENERATOR P3
4
1
C2314244
SUSPENSION, STEAM GEN, 20.10/20.20 P3
5
3
C6015023
FLAT GASKET FOR IMMERSION HEATER P3
63
C5017014
ASSEMBLY, IMMERSION HEATER, P3, 13.2 kW, 230 V
7
1
C5019003
ASSEMBLY, DOUBLE LEVEL PROBE P3
8
1
C6015040
FLAT GASKET FOR DOUBLE-LEVEL PROBE P3
9
1
C7013157
INSULATION, GEN, ELEC, OUTER, 20.20 P3
10
10 101953
CLIP, INSULATION RETAINER, 1-1/2, .105 HOLE, GALV.
11
17 C8017011
NUT, FLANGE, HEX M6 A4 P3
ITEM
QTY
PART N0.
DESCRIPTION
B
B
A
B
6
11
4
10
9
7
8
5
1
2
3
2
DETAIL A
DETAIL B
C2314210SERV B
0706

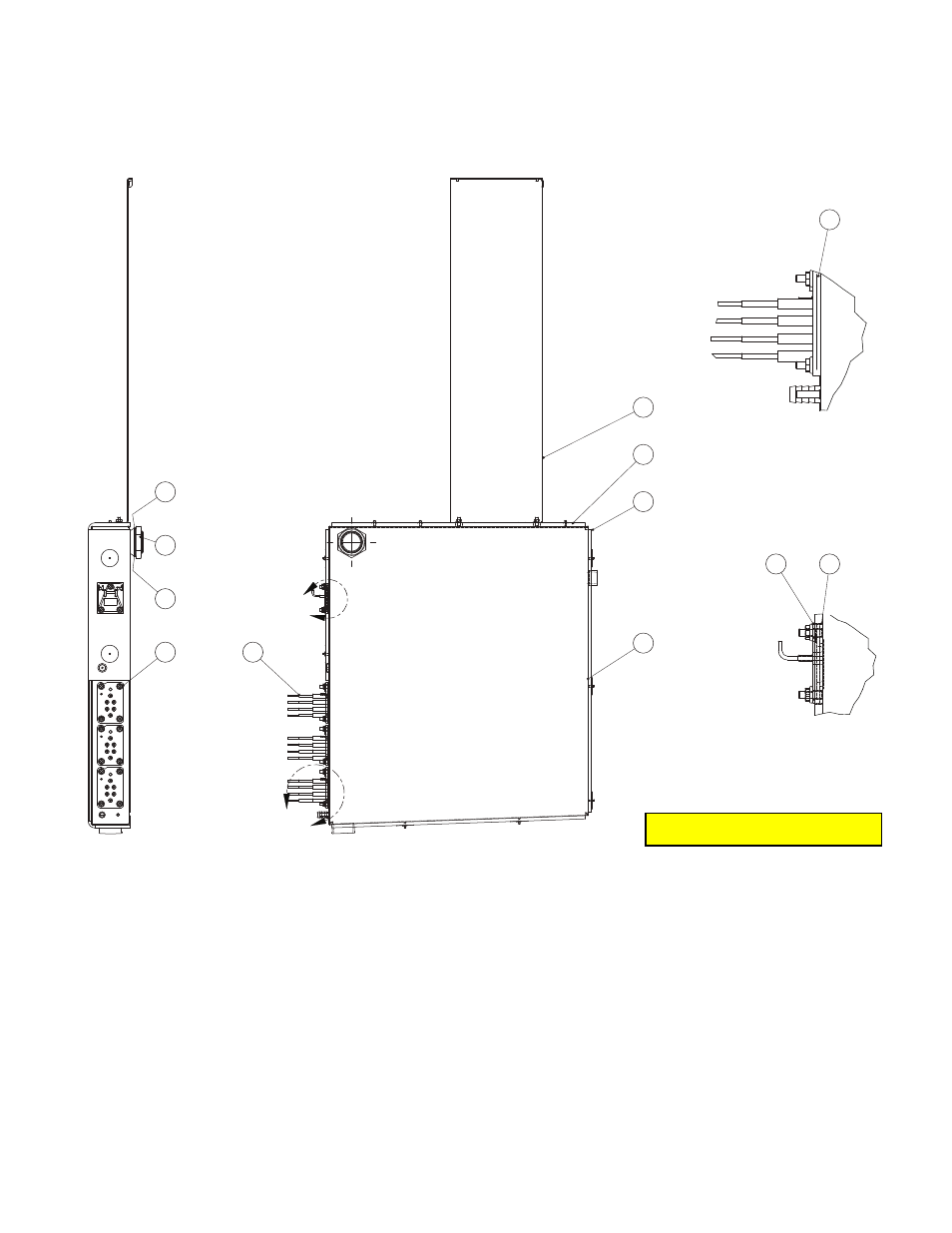

ASSEMBLY, STEAM GENERAT0R, ELECTRIC, HEATER SELECTION
OEB-20.20 MODELS
34
480 VAC element C50170141
