Technical data

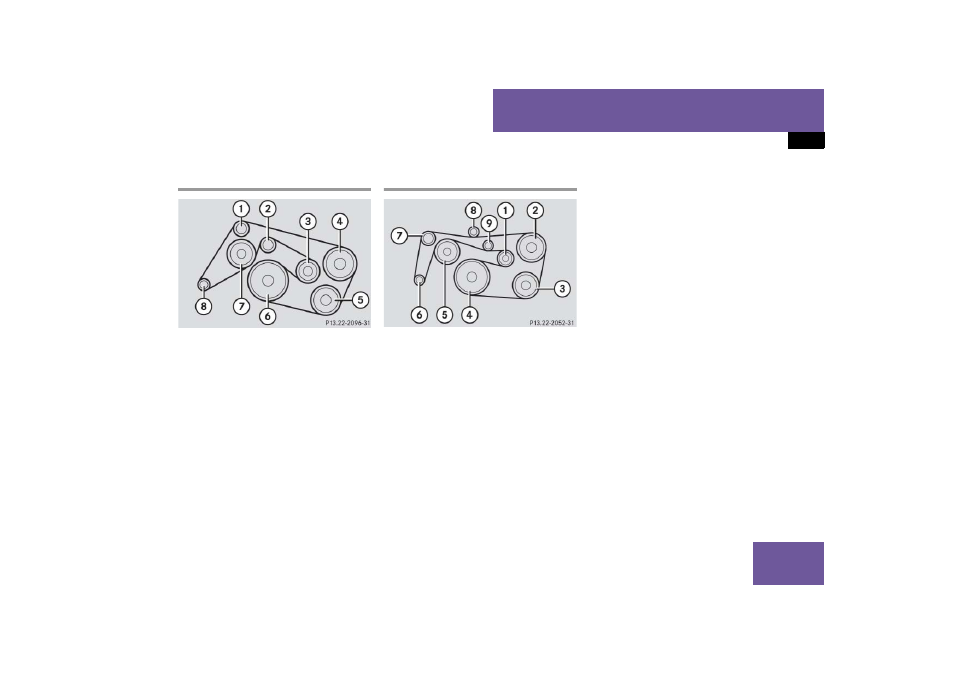

Layout of poly-V-belt drive

S 550

1 Idler pulley
2 Idler pulley
3 Automatic belt tensioner
4 ABC* tandem pump (pump for

power-steering assistance and ABC*
chassis)

5 Air conditioning compressor
6 Crankshaft
7 Coolant pump
8 Generator (alternator)

S 600

1 Automatic belt tensioner
2 ABC tandem pump (pump for

power-steering assistance and ABC
chassis)

3 Air conditioning compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
8 Idler pulley
9 Idler pulley
