Extending and retracting the cargo
compartment cover

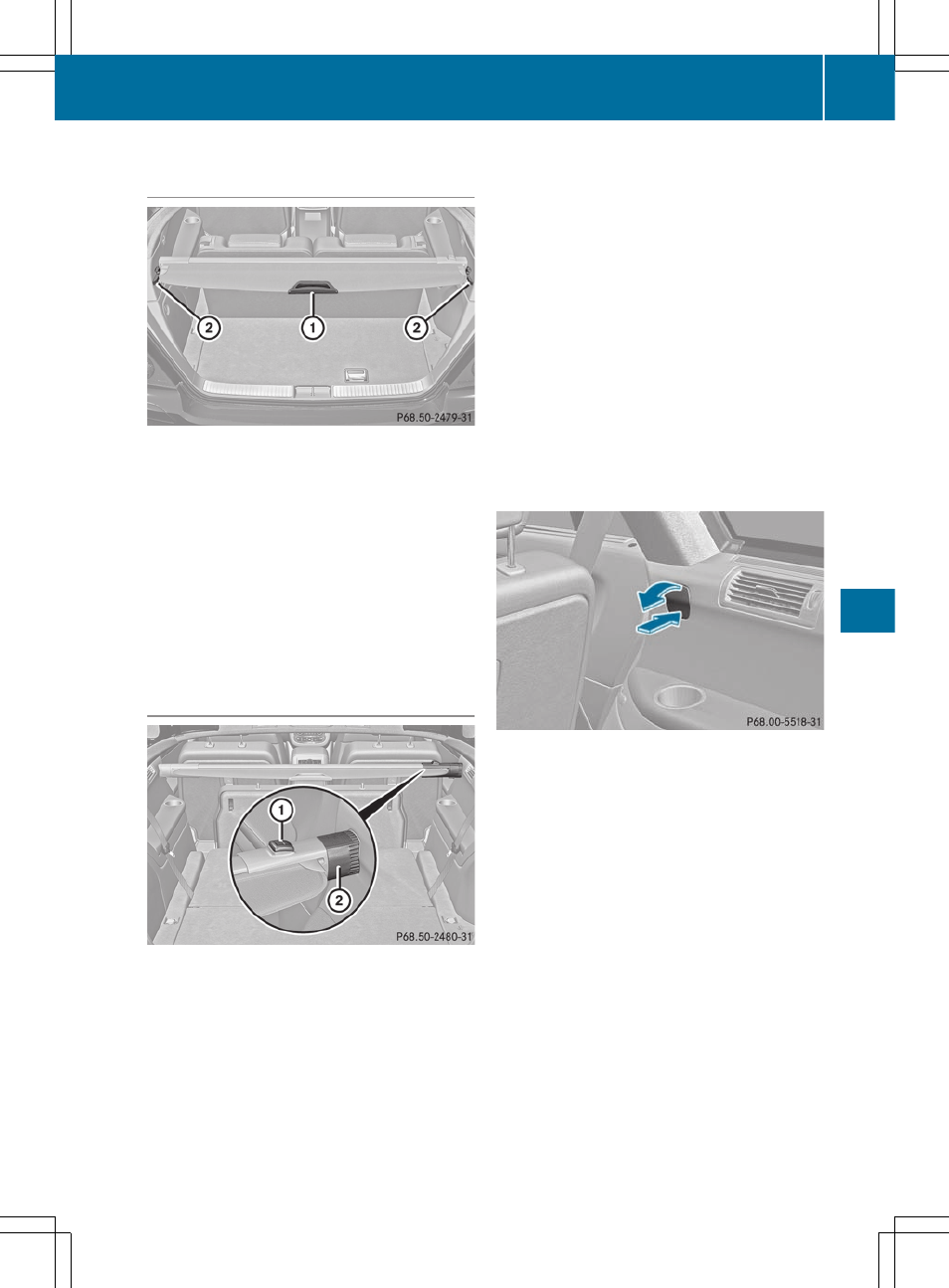

Cargo compartment cover installed behind the
third row of seats
X
To extend: pull the cargo compartment
cover back by grab handle : and clip it
into retainers ; on the left and right.
X
To retract: unhook the cargo compartment
cover from retainers ; on the left and right
and guide it forwards by grab handle :
until it is fully retracted.
Installing/removing the cargo
compartment cover
Cargo compartment cover installed behind the
second row of seats
X
To remove: make sure that cargo
compartment cover ; is rolled up.
X
Press button :.
X
Move cargo compartment cover ; to the
left.
X
Remove cargo compartment cover ;.
X
To install: extend cargo compartment
cover ; if you wish to install cargo
compartment cover ; behind the second
row of seats (
!
You must not install the extensions if you
wish to install the cargo compartment
cover behind the 3rd row of seats. The
cargo compartment cover and side panels
in the cargo compartment could otherwise
be damaged.
X
If installed, remove the protective caps
from the side trims on the third row of seats
when you wish to install cargo
compartment cover ; behind the second
row of seats.
Protective cap in the right-hand side trim on the
third row of seats
X
Push in the bottom of the protective cap as
indicated by the arrow.
The protective cap folds out at the top.
X
Pull the top of the protective cap from the
side trim in the direction of the arrow.
i
Stow the protective caps in a safe place.
X
With the handle of the cargo compartment
pointing to the rear and button : facing
upwards, insert cargo compartment
cover ; into the recess of the side trim on
the left-hand side.
X
Guide cargo compartment cover ; in front
of the recess on the right.
Stowage areas
259
Stowing and features
