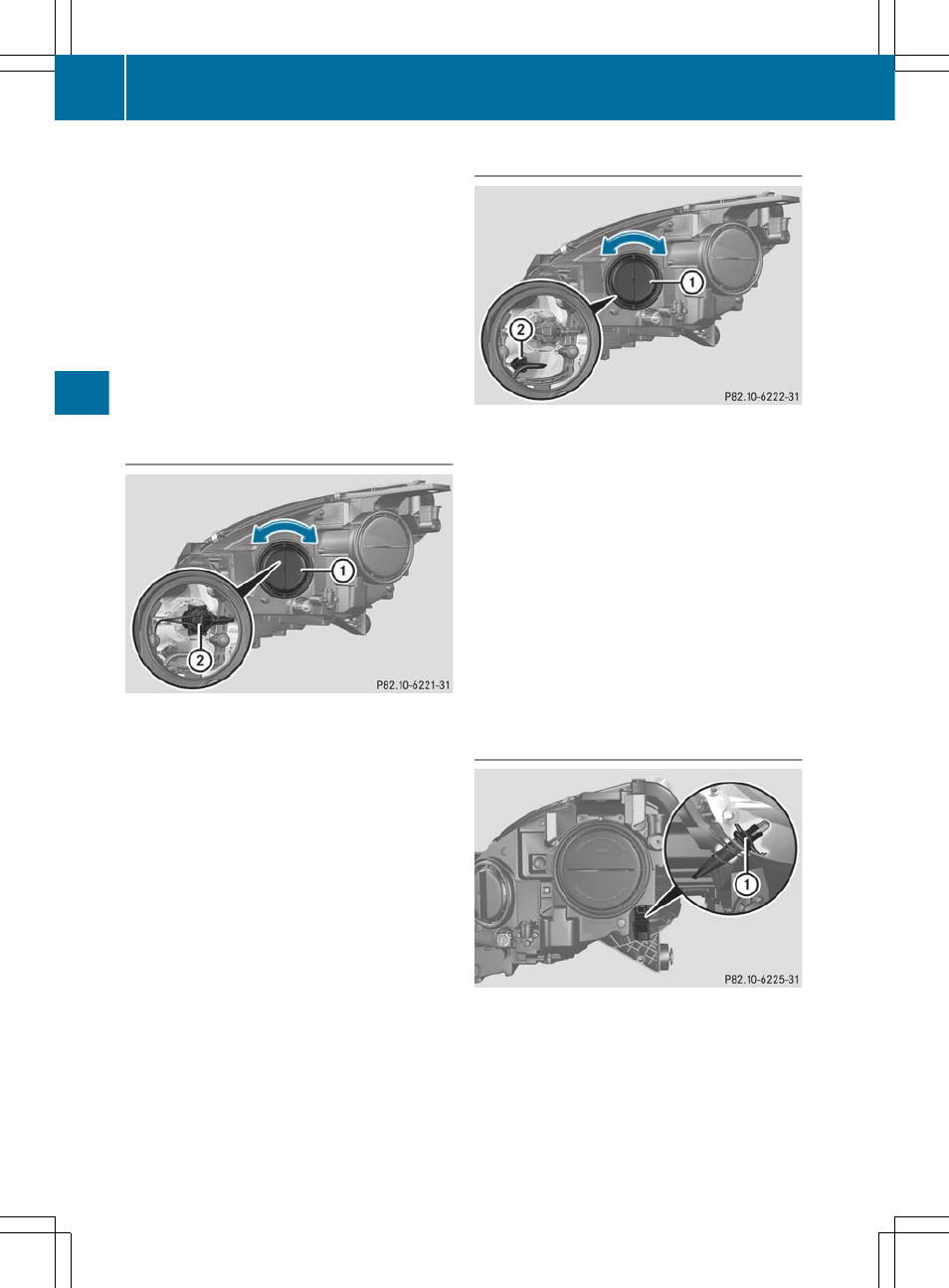

X Turn bulb holder ; counter-clockwise and
pull it out.
X Take the bulb out of bulb holder ;.
X Insert the new bulb into bulb holder ;.
X Insert bulb holder ; into the lamp and turn
it clockwise.
X Align housing cover : and turn it
clockwise until it engages.
X Replace the cover in the front wheel arch
(
Y page 121).
High-beam headlamps (halogen
headlamps)
X Remove the cover in the front wheel arch
(
Y page 121).
X Turn housing cover : counter-clockwise
and pull it out.
X Turn bulb holder ; counter-clockwise and
pull it out.
X Take the bulb out of bulb holder ;.
X Insert the new bulb into bulb holder ;.
X Insert bulb holder ; into the lamp and turn
it clockwise.
X Align housing cover : and turn it
clockwise until it engages.
X Replace the cover in the front wheel arch
(
Y page 121).
Parking lamp/standing lamp
X Remove the cover in the front wheel arch
(
Y page 121).
X Turn housing cover : counter-clockwise
and pull it out.
X Pull out bulb holder ;.
X Take the bulb out of bulb holder ;.
X Insert the new bulb into bulb holder ;.
X Insert bulb holder ;.
X Align housing cover : and turn it
clockwise until it engages.
X Replace the cover in the front wheel arch
(
Y page 121).
Turn signals
X Remove the cover in the front wheel arch
(
Y page 121).
X Pull out bulb holder :.
X Take the bulb out of bulb holder :.
X Insert the new bulb into bulb holder :.
