Page 2
Safety Precautions
This is a sophisticated radio controlled model that must be operated with caution and common sense. Failure to operate your
Mini-Late Model in a safe and responsible manner could result in damage to the model and property. The Mini-Late Model is
not intended for use by children without direct adult supervision. Losi and Horizon Hobby shall not be liable for any loss or
damages, whether direct, indirect, special, incidental, or consequential, arising from the use, misuse, or abuse of this product
or any product required to operate it.
•
This model is controlled by a radio signal subject to interference from many sources outside your control. This interference
may cause momentary loss of control, so it is advisable to always keep some distance in all directions around your model
as a safety margin to avoid collisions.
• Always operate your model in an open area away from cars, traffic and people.
• Avoid running your model in the street where damage can occur.
• Never run your Mini-Late Model with low transmitter batteries.
• Carefully follow the directions and warnings for this and any optional support equipment.
• Keep all chemicals, small parts and anything electrical out of the reach of children.

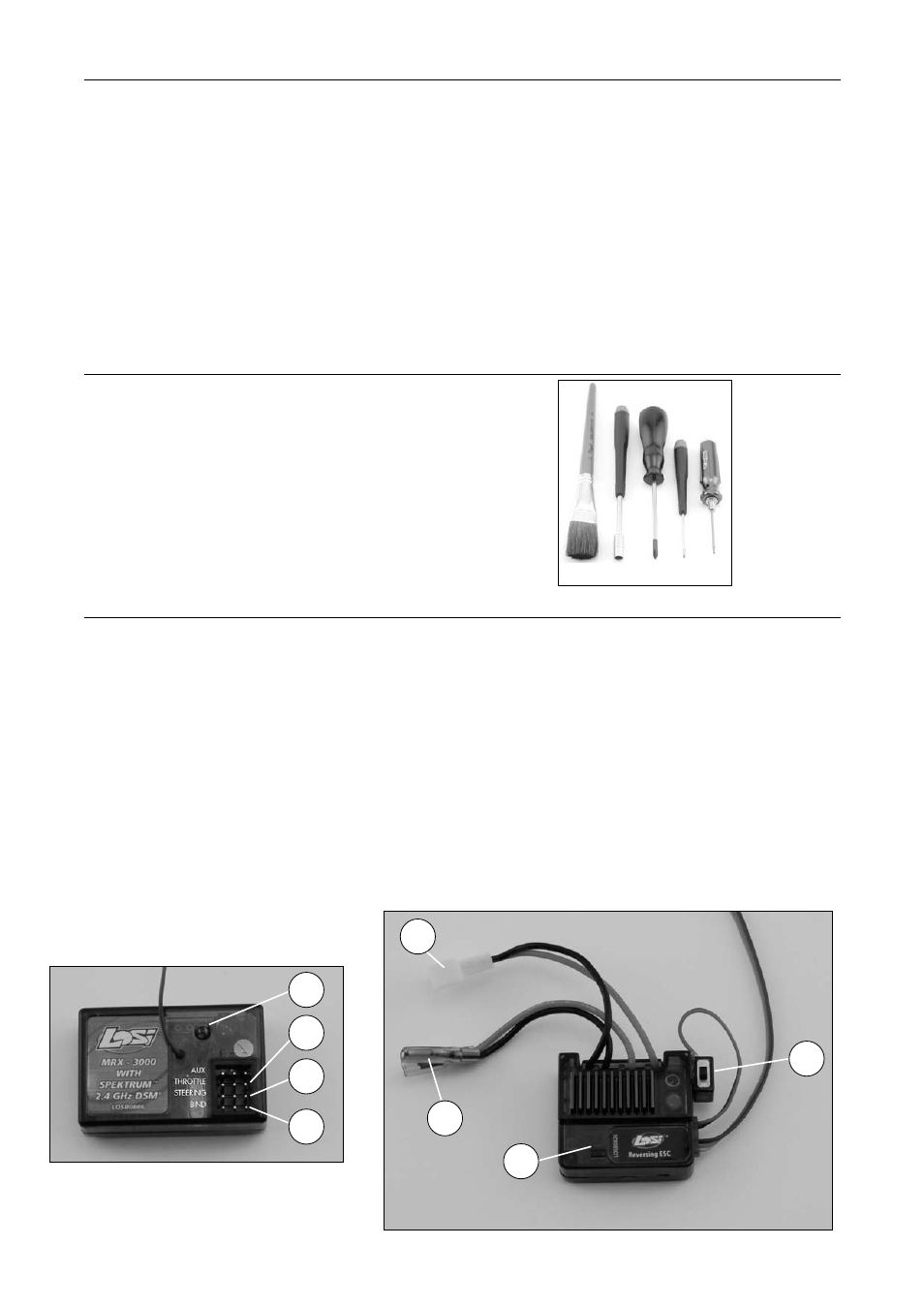

Tools and Items You Will Find Handy
• Soft bristle brush for cleaning
• 5.5mm nut driver for the wheel nuts.
• #0 or #1 Phillips screwdriver
• .050-inch Allen Wrench (LOSA99100)
Note: Use only Losi tools or other high-quality tools. Use of
inexpensive tools can cause damage to the small screws and
parts used on this type of model.
The Radio System
The following is an overview of the various functions and adjustments found on the Mini-Late Model radio system. Since
the Mini-Late Model operates on a radio signal you control, it is important for you to read and understand about all of these
functions and adjustments before driving.
The Receiver
1. Throttle Port: Where the Electronic Speed Control (ESC) plugs in.
2. Steering Port: Where the steering servo(s) plugs in.
3. Bind Port: Used to “bind” the receiver to the transmitter.
4. Indicator Light: Shows that a frequency/channel is being received.
The Electronic Speed Controller (ESC)
1. On/Off Switch: Powers the receiver and ESC.
2. Setup Button and Indicator Light: Used for resetting the ESC.
3. Battery Lead: Connects to the battery pack for power.
4. Motor Lead: Connects to the wire leads from the motor.
4
1
2
3
1
3
2
4
