Receiver
There is no adjustment required of the receiver. Please note the different slots for connection.
There are bind, channel one, channel two and auxiliary slots.
The bind slot is used to bind the transmitter to the receiver. The Losi LSR-3000 DSM® radio system uses a unique GUID ID
to “bind” the transmitter to each receiver. This bind process has been performed during assembly and is described below
should you replace the receiver or during a troubleshooting exercise you are requested to rebind your transmitter and
receiver.
Although the transmitter and receiver are set “bound” at the factory, below are the steps required to rebind your transmitter
and receiver should the need arise.
Rebind Process
1. Ensure that the transmitter and vehicle are both turned off.
2. Using the supplied Bind plug (which looks like a standard receiver plug with a short wire loop installed), insert the Bind
plug into the receiver slot labeled BIND. When you look down on the receiver slots, it is the slot farthest from the LED,
and nearest to the corner of the receiver.
Note: You do not need to remove any other plugs to rebind.
3. With the bind plug installed, turn on the vehicle. Notice the LED is now blinking.
4. You are now ready to turn on the transmitter. You should notice on the back of the transmitter a similar blinking LED
under a translucent cover.
5. Both the receiver and transmitter LEDs will stop blinking and be on solid, indicating that they have bound
themselves together.
6. Turn off the vehicle and then the transmitter.
7. Remove the bind plug from the receiver.
8. Turn on the transmitter and then the vehicle to ensure operation. If the transmitter does not control the vehicle,
please repeat steps 1-7 above. If after several attempts you are unsuccessful, please call Horizon product support.
9. The bind process is complete. Your vehicle’s radio system is now ready for use.
Receiver Antenna
Using your fingers, gently straighten the antenna wire to be close to vertical from the chassis for the best radio reception.
Factory Settings of Radio/ESC
The Electronic Speed Control was calibrated together with the radio system at the factory. When you turn on and run the
1/10 Night Crawler for the first time, you may be required to slightly adjust the Throttle Trim. If the vehicle creeps in reverse
or in forward, just make a fine adjustment to the Throttle Trim knob on the transmitter. Sometimes during transportation the
settings can be slightly altered.

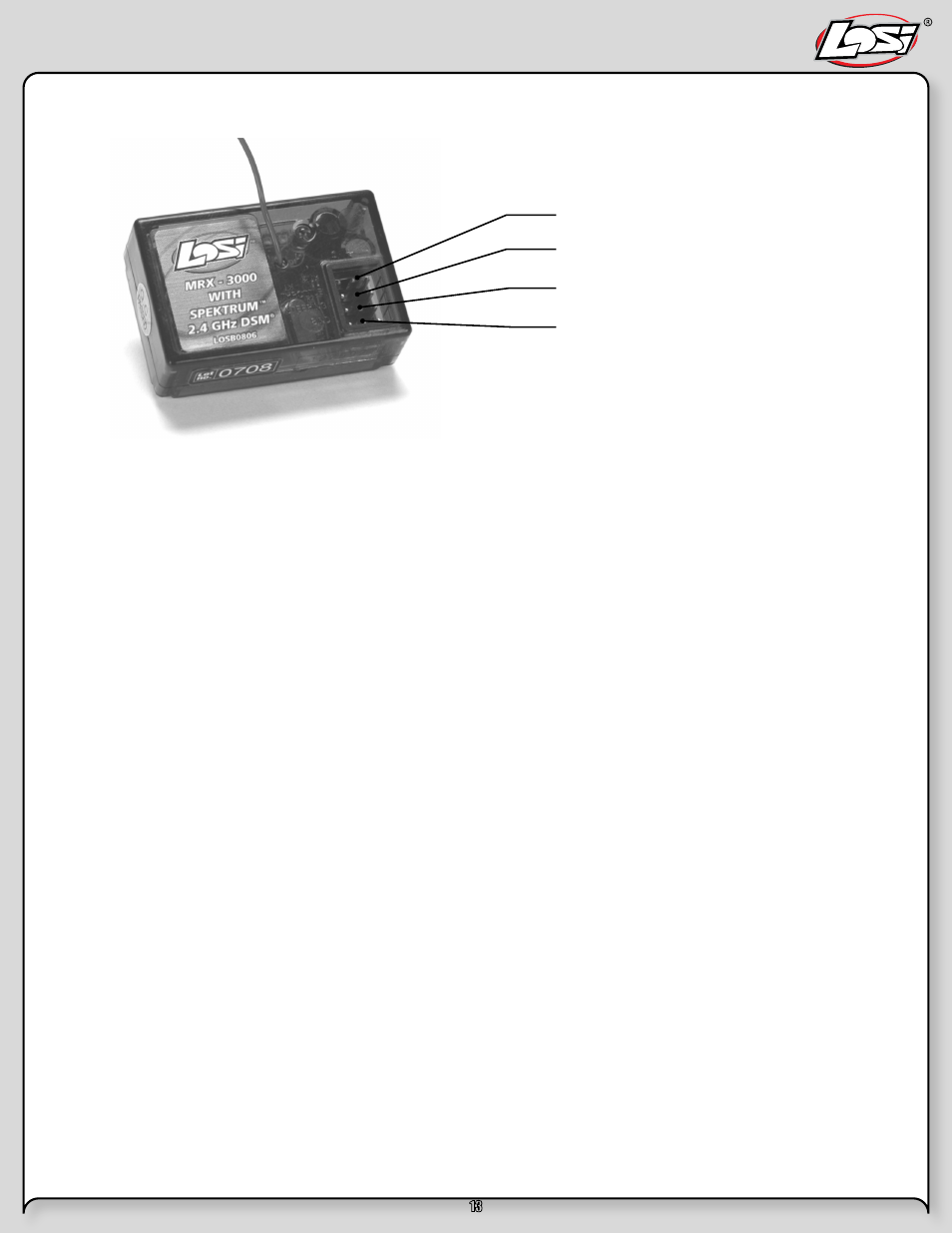

Auxiliary Channel
