Starter Box Battery Installation
You will need to purchase two 7.2V 6-cell battery
packs for the Starter Box. Losi recommends using (2)
LOSB9900 7.2V 3600mAh 6-cell NiMH Performance
Spec Battery Packs. By using the charger of your choice
follow the manufacturers’ directions to charge both
batteries. Once both batteries are charged, they will
need to be inserted and secured inside of the starter
box. First, the top of the starter box will need to be
removed (Fig 3A). Now remove the 4 screws from the
center plastic plate which are located on the side of the
starter box. The center plate will now slide towards the
center of the starter box allowing room for the battery
packs. Insert the batteries into the upper mounting
locations on the starter box (Fig 3B). Once the batteries
are installed into the starter box, feed the battery leads
through the center plate and move the center plate
over the two battery packs (Fig 3C). Once the batteries
are secured by the center plate, insert the (4) screws
back into the center plate from the side of the starter
box to lock the batteries into position (Fig 3D). Plug
each battery pack into the Y-harness (Fig 3C).

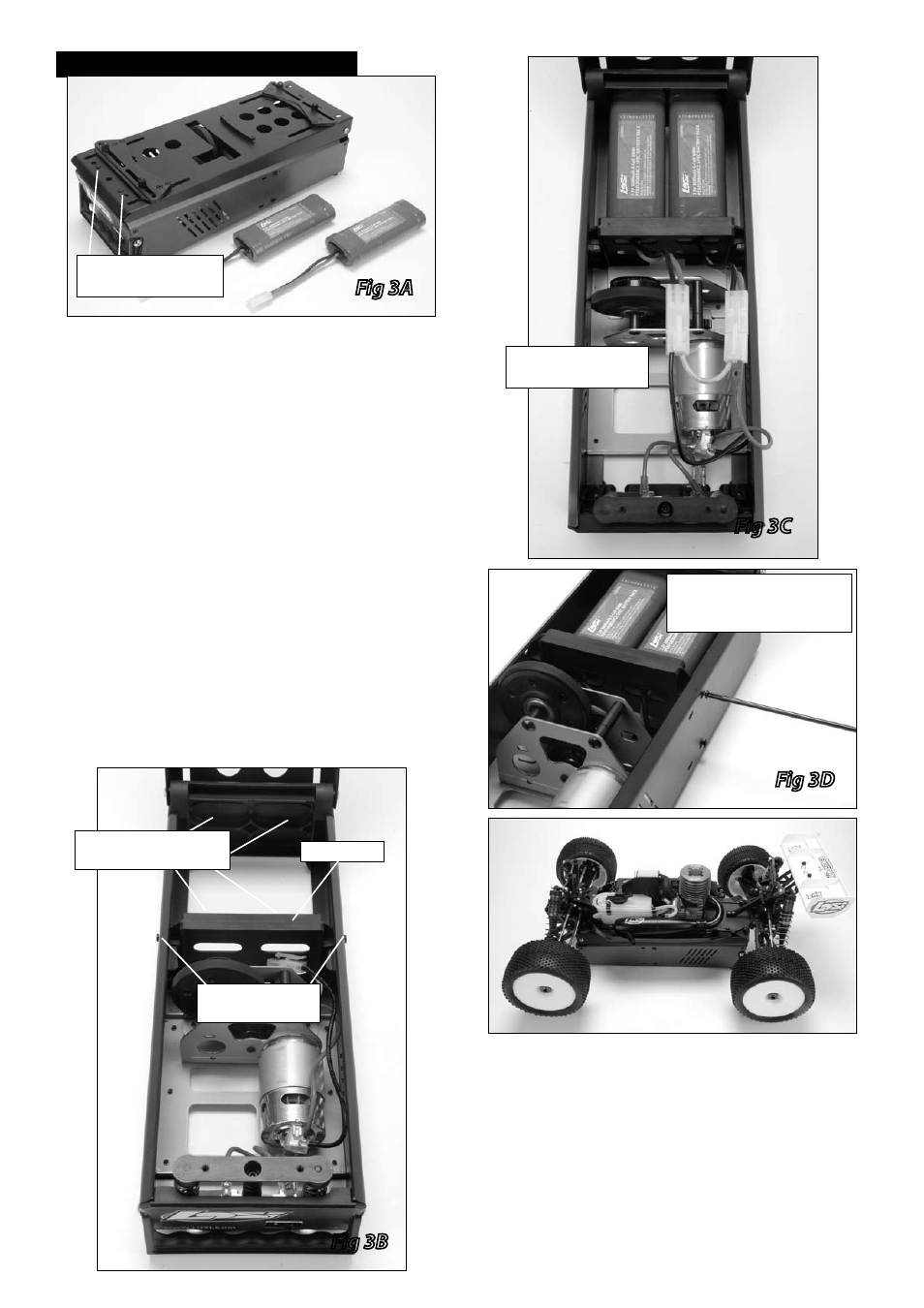

Fig 3A
Remove four screws to
loosen plate
Plug each battery into
Y-harness of Starter Box
Upper mounting locations
for battery placement
Remove these two screws
to open the starter box
Tighten all four screws on each
side of starter box to secure the
battery packs to the starter box
Center Plate
Fig 3D
Fig 3C
Fig 3B
